User manual Used Canon EOS Rebel T5i DSLR Camera with 18-55mm Lens

Operating instructions and pdf manual for use - Used Canon EOS Rebel T5i DSLR Camera with 18-55mm Lens User manual, User manual Used Canon EOS Rebel T5i DSLR Camera with 18-55mm Lens, Used, Canon, EOS, Rebel, T5i, DSLR, Camera, with, 18-55mm, Lens

User manual for Used Canon EOS Rebel T5i DSLR Camera with 18-55mm Lens

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Used Canon EOS Rebel T5i DSLR Camera with 18-55mm Lens
  • Manufacturer: Canon
  • Basic description and contents of package
  • Product classification: - Digital Photography - All Digital Cameras
  • Safety instructions
  • Startup and operation of the all digital cameras
  • Tips for setting up your Canon
  • Settings and expert assistance
  • Contact Canon service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Used Canon EOS Rebel T5i DSLR Camera with 18-55mm Lens, which address similar problems with connecting and setting up All Digital Cameras Canon.


User manual for the Used Canon EOS Rebel T5i DSLR Camera with 18-55mm Lens

The user manual for the Used Canon EOS Rebel T5i DSLR Camera with 18-55mm Lens provides necessary instructions for the proper use of the product - Digital Photography - All Digital Cameras.

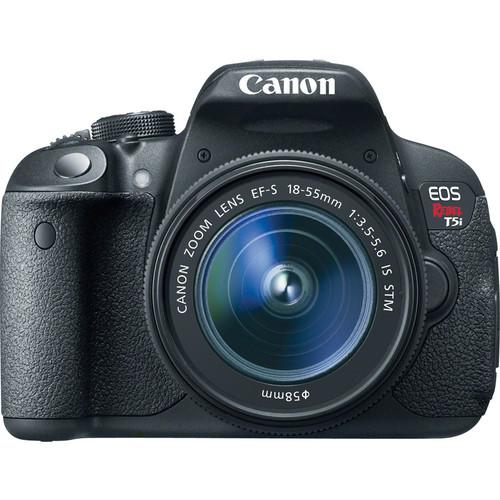

The EOS Rebel T5i DSLR Camera with 18-55mm Lens from Canon is an APS-C format digital SLR camera with an 18MP CMOS sensor and the DIGIC 5 image processor. It is combined with the EF-S 18-55mm f/3.5-5.6 IS STM lens for an effective range of wide-angle to standard focal length.
If you own a Canon all digital cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Used Canon EOS Rebel T5i DSLR Camera with 18-55mm Lens in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Used Canon EOS Rebel T5i DSLR Camera with 18-55mm LensDownload user manual for Used Canon EOS Rebel T5i DSLR Camera with 18-55mm Lens
(PDF file, 27.16 MB)
Additional parameters of the Used Canon EOS Rebel T5i DSLR Camera with 18-55mm Lens:
Specifications
    Imaging
    Lens Mount Canon EF
    Canon EF-S
    Camera Format Canon APS-C (1.6x Crop Factor)
    Pixels Actual: 18.5 Megapixel
    Effective: 18 Megapixel
    Max Resolution 17.9 MP: 5184 x 3456
    Aspect Ratio 3:2
    Sensor Type / Size CMOS, 22.3 x 14.9 mm
    File Formats Still Images: JPEG, RAW
    Movies: MOV, MPEG-4 AVC/H.264
    Audio: Linear PCM
    Bit Depth 14-bit
    Dust Reduction System Yes
    Memory Card Type SD
    SDHC
    SDXC
    Focus Control
    Focus Type Auto & Manual
    Focus Mode Continuous-servo AF (C), Manual Focus (M), Single-servo AF (S)
    Autofocus Points 9
    Viewfinder/Display
    Viewfinder Type Pentamirror, Optical
    Viewfinder Coverage 95%
    Viewfinder Magnification Approx. 0.87x
    Diopter Adjustment - 3 to +1 m
    Display Screen 3" Rear Touchscreen Tilting Live Preview LCD (1,040,000)
    Screen Coverage 100%
    Exposure Control
    ISO Sensitivity Auto, 100-12800 (Extended Mode: 100-25600)
    Shutter Type: Electronic & Mechanical
    Speed: 30 - 1/4000 second
    Metering Method Average metering, Center-weighted average metering, Multi-zone metering, Partial Metering, Spot metering
    Exposure Modes Modes: Aperture Priority, Auto, Flash Off, Manual, Programmed Auto, Shutter Priority
    Metering Range: EV 1.0 - EV 20.0
    Compensation: -5 EV to +5 EV (in 1/3 or 1/2 EV steps)
    White Balance Modes Auto, Cloudy, Custom, Daylight, Flash, Fluorescent (White), Shade, Sunset, Tungsten, Twilight
    Flash
    Built-in Flash Yes
    Flash Compensation -2 EV to +2 EV (in 1/3 or 1/2 EV steps)
    Dedicated Flash System eTTL Remote Firing
    External Flash Connection Hot Shoe
    AV Recording
    Video Recording Yes, NTSC/PAL
    File Size 1920 x 1080p (Full HD)
    1280 x 720p (HD)
    640 x 480p (SD)
    Frame Rate @ 1920 x 1080: 30 fps, 25 fps, 24 fps
    @ 1280 x 720: 60 fps, 50 fps
    @ 640 x 480: 30 fps, 25 fps
    Exposure Control Auto: Shutter Speed, Aperture, ISO
    Manual: Shutter Speed, Aperture, ISO
    ISO Sensitivity Auto, 100 - 6400, Expandable to 12800
    Exposure Compensation -3 EV to +3 EV (in 1/3 EV steps)
    Focus Auto
    Manual
    Continuous Auto
    Video Clip Length 1920 x 1080
    29.9 min.
    1280 x 720
    29.9 min.
    640 x 480
    29.9 min.
    Audio Recording Optional External Mic: With Video, Stereo
    Performance
    Continuous Shooting Up to 5 fps
    Shutter Lag 0.075 seconds
    Self Timer 2 seconds, 10 seconds
    Connectivity AV Output
    HDMI C (Mini)
    USB 2.0
    Power
    Battery 1x LP-E8 Rechargeable Lithium-ion Battery Pack
    AC Power Adapter ACK-E8 (Optional)
    Operating/Storage Temperature Operating
    32 to 104°F (0 to 40°C)
    Humidity: 0 - 85%
    Physical
    Dimensions (WxHxD) 5.2 x 3.9 x 3.1" / 13.2 x 9.9 x 7.9 cm
    Weight 18.52 oz / 525 g Body Only without battery and card
    Kit Lens
    Focal Length 18 - 55mm
    Comparable 35mm Focal Length: 28.8 - 88 mm
    Aperture Maximum: f/3.5 - 5.6
    Angle of View 74° 20' - 27° 50'
    Minimum Focus Distance .82' (.25 m)
    Magnification 0.28x
    Elements/Groups 13/11
    Autofocus Yes
    Image Stabilization Yes
    Filter Thread Front: 58 mm
    Dimensions (DxL) Approx. 2.7 x 3.0" (68.58 x 76.20 mm)
    Weight 7.23 oz (205 g)
    Packaging Info
    Package Weight 3.1 lb
    Box Dimensions (LxWxH) 10.6 x 9.3 x 6.0"
    Canon EOS Rebel T5i Demo
    Features of DSLR
    The user manual for the Used Canon EOS Rebel T5i DSLR Camera with 18-55mm Lens can be downloaded in .pdf format if it did not come with your new all digital cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Canon users keep a unique electronic library for Canon all digital camerass, where you can use our link to download the user manual for the Used Canon EOS Rebel T5i DSLR Camera with 18-55mm Lens.

    The user manual lists all of the functions of the Used Canon EOS Rebel T5i DSLR Camera with 18-55mm Lens, all the basic and advanced features and tells you how to use the all digital cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Canon service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Used Canon EOS Rebel T5i DSLR Camera with 18-55mm Lens. User manuals are also available on the Canon website under - Digital Photography - All Digital Cameras.
