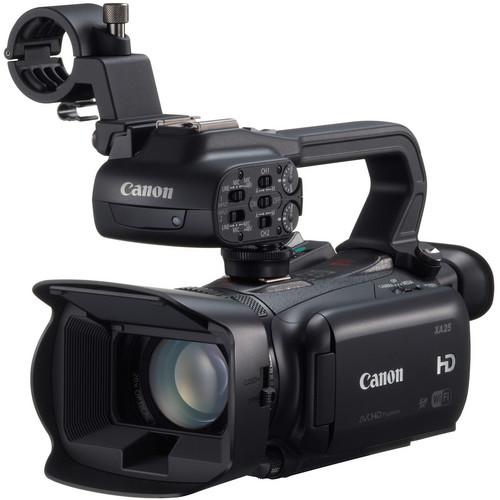

The Canon XA25 Professional HD Camcorder is a compact "run-and-gun" camera that is suitable for ENG, event coverage, independent and documentary filmmaking. The camera features a 1/2.84", 1920 x 1080 CMOS sensor that captures video at various frame rates up to 59.94p, including a 24p mode for a more cinematic feel. The integrated Canon 20x HD Optical zoom lens has a 35mm equivalent zoom range of 26.8 to 576mm and features an 8-bladed iris to render highlights in a more natural manner.
The final piece in the image chain is Canon's Digic DV 4 Image Processor. This high-speed image-processing engine powers Canon's Dynamic IS (Image Stabilization) mode reducing image distortion over traditional up-down left-right image stabilization by adding correction for camera roll in three axes. The power of the Digic DV 4 allows the camera to simultaneously encode your video to two different codecs and bit rates, allowing you to have web-ready versions of your master footage available as soon as you stop recording.
The XA25 features both a 3.5" OLED Touch Panel view screen with a 10,000:1 contrast ratio, and a color electronic viewfinder with 1,560,000 dots of resolution. The camera features full manual control and auto modes for exposure, focus, white balance, gain, and shutter speed. The camera provides professional features such as a pre-record buffer, peaking, zebra bars, color bars, and reference tone. The zoom speed is adjustable with variable, constant (with 16 different speed levels), fast, normal and slow settings. The camera features a detachable top handle with zoom toggle, record start/stop, IR emitter, tally light, accessory shoe, external mic holder and two XLR connectors with phantom power and manual audio level controls. The XA25 includes a built-in headphone jack and an HDMI mini connector, and outputs composite video and audio via a 3.5 mm four pole mini jack. The XA25 also features a built-in SD/HD-SDI output with embedded audio and time code via a BNC connector.
Two built-in SD/SDHC/SDXC memory card slots allow you to record video to available media cards in both slots at the same time. This allows you to create an instant back up copy for archiving and data protection or you can capture high resolution AVCHD or MP4 video files on one card while creating a lower data rate MP4 more suitable for the web on the other card. When using two media cards and the camera is in Relay mode, there is no need to stop shooting to swap out a full media card. When one card becomes full, recording seamlessly switches to the other card. Built-in dual-band Wi-Fi allows you FTP video files directly from the camera, or playback footage from the memory cards to Wi-Fi enabled TVs and Computers. You can also remotely control select camera functions from a smart phone or tablet over Wi-Fi, freeing you from remote cables.
|
If you own a Canon consumer camcorders and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Used Canon XA25 Professional HD Camcorder 8443B016AA in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Used Canon XA25 Professional HD Camcorder 8443B016AA:
| Image Device | 1/2.84" CMOS Sensor
Resolution: 1920 x 1080
Total Pixels: 3.09 Mp
Effective Pixels: 2.91 Mp
RGB Primary Color Filter
Compatible with NTSC | | Lens | Zoom Range: 20x Optical/ 400x Digital
Max Aperture: 1.8 - 2.8 Focal Length: 3.67 to 73.4mm
35mm Equivalent: 26.8 to 576mm (28.8 to 576mm with Dynamic IS)
Minimum Focus Wide: 0.8" (20 mm)
Minimum Focus Throughout Zoom Range: 23.6" (60 cm) Filter Rings Size: 58 mm Zoom Speed Settings: Variable, Constant (16 levels), Fast, Normal, Slow | | Minimum Illumination | Nominal: 1.2 lux
Low Light Mode: Approx 0.1 lux (shutter speed at 0.5 sec) | | OLED Viewscreen | 3.5"
Touch Panel
Pixel Count: Approximately 1,230,000 dots | | Viewfinder | 0.24" Color EVF
Pixel Count: Approximately 1,560,000 dots | | Media Card Slots | 2 x SD/SDHC/SDXC | | Codec / Format Support | MPEG4
1080: 59.94p, 29.97p, 23.98p 720/360: 29.97p, 23.98p
AVCHD
1080: 59.94p, 59.94i, PF29.97, 23.98p
Note: PF29.97 is Canon's designation for 29.97p video in a 59.94i stream | | Bit Rates | MPEG4
35 Mb/s: 1920 x 1080 @ 59.94p
24 Mb/s: 1920 x 1080 @ 29.97p,23.98p
17 Mb/s: 1920 x 1080 @ 29.97p,23.98p
4 Mb/s: 1280 x 720 @ 29.97p,23.98p
3 Mb/s: 640 x 360 @ 29.97p,23.98p
AVCHD
28 Mb/s: 1920 x 1080 @ 59.94p
24 Mb/s: 1920 x 1080 @ 59.94i/p, PF29.97, 23.98p
17 Mb/s: 1920 x 1080 @ 59.94i/p, PF29.97, 23.98p
5 Mb/s: 1920 x 1080 @ 59.94i/p, PF29.97, 23.98p | | Maximum Recording Time | MPEG4
- 8Gb: 30 minutes @ 35 Mb/s, 40 minutes @ 24 Mb/s, 60 minutes @ 17 Mb/s, 260 minutes @ 4 Mb/s, 340 minutes @ 3 Mb/s
- 128Gb: 8 hours @ 35 Mb/s, 11 hours 55 minutes @24 Mb/s, 16 hours 45 min @ 17 Mb/s, 69 hours 30 min @ 4 Mb/s, 91 hours 55 min @ 3 Mb/s
AVCHD
- 8Gb: 35 minutes @ 28 Mb/s, 40 minutes @ 24 Mb/s, 60 minutes @ 17 Mb/s, 3 hours @ 5 Mb/s
- 128Gb: 10 hours 10 minutes @ 28 Mb/s, 11 hours 55 minutes @ 24 Mb/s, 16 hours 45 minutes @ 17 Mb/s, 49 hours @ 5 Mb/s
| | Shutter Speed | Max: 1/2000 sec | | Inputs/Outputs | Input
2 x XLR 3-pin female: audio in MIC/LINE (on handgrip accessory)
1 x 3.5mm stereo mini-jack
1 x 2.5 stereo mini-jack (remote control input)
Output
1 x BNC: SDI
1 x 3.5mm 4-pole mini-jack: A/V terminal (composite video, audio)
1 x USB 2.0: mini-B (output only)
1 x HDMI mini
1 x built-in speaker | | Audio | Linear PCM (2 Channel): when recording in AVCHD 28 Mb/s @ 23.98
Dolby Digital
Dolby Digital 5.1 when using Optional SM-V1 | | Power Requirements | Battery: 7.4V DC
Power Supply: 8.4V DC | | Operating Temperature | Operation: 23 to 113°F (-5 to 45°C)
Performance: 32 to 104°F (0 to 40°C) | | Dimensions (WxHxD) | 4.3 x 3.3 7.2" (10.9 x 8.4 x 18.3 cm) | | Weight | 1.7 lb (770 g) | | Package Weight | 5.5 lb | | Box Dimensions (LxWxH) | 10.6 x 9.3 x 5.9" | |
