User manual Used Nikon D4S DSLR Camera (Body Only) 1541B

Operating instructions and pdf manual for use - Used Nikon D4S DSLR Camera (Body Only) 1541B User manual, User manual Used Nikon D4S DSLR Camera (Body Only) 1541B, Used, Nikon, D4S, DSLR, Camera, Body, Only, 1541B, Video


User manual for Used Nikon D4S DSLR Camera (Body Only) 1541B

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Used Nikon  D4S DSLR Camera (Body Only) 1541B
  • Manufacturer: Nikon
  • Basic description and contents of package
  • Product classification: - Digital Photography - All Digital Cameras
  • Safety instructions
  • Startup and operation of the all digital cameras
  • Tips for setting up your Nikon
  • Settings and expert assistance
  • Contact Nikon service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Used Nikon D4S DSLR Camera (Body Only) 1541B, which address similar problems with connecting and setting up All Digital Cameras Nikon.



User manual for the Used Nikon D4S DSLR Camera (Body Only) 1541B

The user manual for the Used Nikon D4S DSLR Camera (Body Only) 1541B provides necessary instructions for the proper use of the product - Digital Photography - All Digital Cameras.

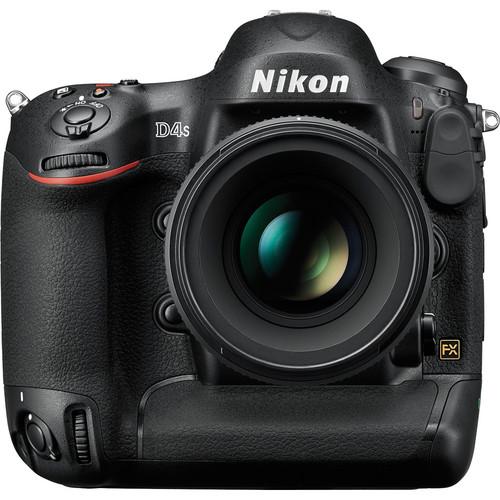

The Nikon D4S DSLR Camera features a full-frame, FX-format 16.2MP CMOS sensor and EXPEED 4 image processor to produce high-resolution still imagery and full HD 1080p movies with notable image detail, quality, and sensitivity. The combination of these two technologies affords exceptional image quality, marked by smooth tonal gradations and vivid, yet accurate, color reproduction as well as an expansive dynamic range. Championing working in a wide variety of lighting conditions, the D4S also features a broad native sensitivity range, from ISO 100-25600, that is further expandable to an equivalent ISO 409600 to benefit working in difficult lighting conditions. Furthermore, the processing power of the EXPEED 4 also affords a full-resolution continuous shooting rate of 11 fps for up to 200 frames with maintained auto-exposure and autofocus.

Aiding the imaging prowess of this camera is an equally refined 51-point autofocus system, which can be configured to utilize five AF points as a single focusing point in the Group Area AF setting for heightened initial subject recognition. The 3D Color Matrix Metering III system, along with the 91,000-pixel RGB sensor, also benefits the focusing abilities of the D4S as well as provides accurate exposure metering to suit a vast array of subjects and lighting conditions.

Complementing a fast, time-sensitive workflow, this camera also employs numerous strategies designed to benefit fast offloading and transferring of files. Support is available for a 1000 Base-T (Gigabit) wired LAN connection and file recording is possible in a 12-bit RAW SIZE S file size to help expedite post-production. When recording movies or time lapse imagery, optional external recorders can be used to record uncompressed movie files, with simultaneous recording to memory cards and live view monitoring possible.
If you own a Nikon all digital cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Used Nikon D4S DSLR Camera (Body Only) 1541B in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Used Nikon  D4S DSLR Camera (Body Only) 1541BDownload user manual for Used Nikon D4S DSLR Camera (Body Only) 1541B
(PDF file, 26.48 MB)
Additional parameters of the Used Nikon D4S DSLR Camera (Body Only) 1541B:
Imaging
Lens Mount Nikon F
Camera Format Full-Frame (1.0x Crop Factor)
Pixels Actual: 16.6 Megapixel
Effective: 16.2 Megapixel
Max Resolution 16.2 MP: 4928 x 3280
Aspect Ratio 3:2, 4:5, 16:9
Sensor Type / Size CMOS, 36.0 x 23.9 mm
File Formats Still Images: JPEG, RAW, TIFF
Movies: MOV, MPEG-4 AVC/H.264
Audio: Linear PCM
Bit Depth 14-bit
Dust Reduction System Yes
Memory Card Type CompactFlash
XQD
Focus Control
Focus Type Auto & Manual
Focus Mode Automatic (A), Continuous-servo AF (C), Full-time Servo (F), Manual Focus (M), Single-servo AF (S)
Autofocus Points Phase Detection: 51
Viewfinder/Display
Viewfinder Type Pentaprism
Viewfinder Eye Point 18.00 mm
Viewfinder Coverage 100%
Viewfinder Magnification Approx. 0.70x
Diopter Adjustment - 3 to +1 m
Display Screen 3.2" Rear Screen   LCD (921,000)
Screen Coverage 100%
Diagonal Angle of View 170.0°
Exposure Control
ISO Sensitivity 100-25600 (Extended Mode: 50-409600)
Shutter Type: Electronic & Mechanical
Speed: 30 - 1/8000 ,  Bulb Mode
Remote Control MC-37, 36A, 30A, 25A, 23A, 22A, 21A, DC2, ML-3, WR-T10, 10, A10, 1, (Optional)
Mirror Lock-Up Yes
Metering Method 3D Color Matrix Metering, Center-weighted average metering, Spot metering
Exposure Modes Modes: Aperture Priority, Manual, Programmed Auto, Shutter Priority
Metering Range: EV -1.0 - EV 20.0
Compensation: -5 EV to +5 EV (in 1/3, 1/2 or 1 EV steps)
White Balance Modes Auto, Cloudy, Color Temperature, Direct Sunlight, Flash, Fluorescent, Incandescent, Preset Manual, Shade
Flash
Flash Modes 1st Curtain Sync
Hi-Speed Sync
Off
Rear Curtain/Slow Sync
Rear Sync
Red-eye Reduction
Slow Sync
Slow Sync/Red-eye Reduction
Max Sync Speed 1 / 250 seconds
Flash Compensation -3 EV to +1 EV (in 1/3, 1/2 or 1 EV steps)
Dedicated Flash System iTTL
External Flash Connection Hot Shoe, PC Terminal
AV Recording
Video Recording Yes, NTSC/PAL
File Size 1920 x 1080p (Full HD)
Aspect Ratio 16:9
Frame Rate @ 1920 x 1080: 60 fps, 50 fps, 30 fps, 25 fps, 24 fps
@ 1280 x 720: 60 fps, 50 fps
@ 640 x 424: 30 fps, 25 fps
Exposure Control Manual: Shutter Speed, Aperture, ISO
Auto: ISO
ISO Sensitivity Auto/Manual, 200 - 25600, Expandable to 409600
Focus Auto
Manual
Continuous Auto
Video Clip Length 1920 x 1080
29 min. 59 seconds
Audio Recording Built-in Mic: With Video + Voice Memo, Mono
Optional External Mic: With Video + Voice Memo, Stereo
Performance
Continuous Shooting Up to 11 fps
Self Timer 2 seconds, 5 seconds, 10 seconds, 20 seconds
Interval Recording Yes
Connectivity 1/8" Headphone, 1/8" Microphone, HDMI C (Mini), NIkon 10-Pin, USB 2.0, X-Sync Socket
Wi-Fi Capable Yes (with Optional Transmitter)
Power
Battery 1x EN-EL18a Rechargeable Lithium-ion Battery Pack, 10.8 VDC, 2500 mAh
AC Power Adapter EH-6b (Optional)
Operating/Storage Temperature Operating
32 to 104°F (0 to 40°C)
Humidity: 0 - 85%
Physical
Dimensions (WxHxD) 6.3 x 6.2 x 3.6" / 160.0 x 156.5 x 90.5 mm
Weight 2.65 lb / 1.20 kg
Packaging Info
Package Weight 6.75 lb
Box Dimensions (LxWxH) 11.102 x 8.347 x 6.142"
The user manual for the Used Nikon D4S DSLR Camera (Body Only) 1541B can be downloaded in .pdf format if it did not come with your new all digital cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Nikon users keep a unique electronic library for Nikon all digital camerass, where you can use our link to download the user manual for the Used Nikon D4S DSLR Camera (Body Only) 1541B.

The user manual lists all of the functions of the Used Nikon D4S DSLR Camera (Body Only) 1541B, all the basic and advanced features and tells you how to use the all digital cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Nikon service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Used Nikon D4S DSLR Camera (Body Only) 1541B. User manuals are also available on the Nikon website under - Digital Photography - All Digital Cameras.
