User manual Vacron 360° Vehicle Video Recorder and Dash Camera MD657

Operating instructions and pdf manual for use - Vacron 360° Vehicle Video Recorder and Dash Camera MD657 User manual, User manual Vacron 360° Vehicle Video Recorder and Dash Camera MD657, Vacron, 360°, Vehicle, Video, Recorder, Dash, Ca


User manual for Vacron 360° Vehicle Video Recorder and Dash Camera MD657

Overall rating 1.0
Overall Rating: 1.0

20% of respondents would recommend this to a friend.

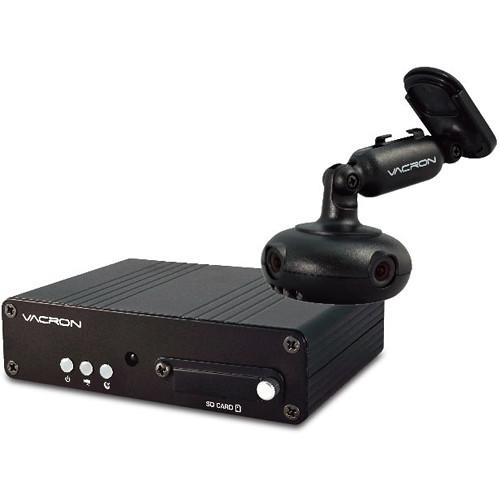

Vacron 360° Vehicle Video Recorder and Dash Camera MD657
  • Manufacturer: Vacron
  • Basic description and contents of package
  • Product classification: Surveillance - Vehicle Cameras & GPS Tracking - Dashcams
  • Safety instructions
  • Startup and operation of the dashcams
  • Tips for setting up your Vacron
  • Settings and expert assistance
  • Contact Vacron service
  • Troubleshooting
  • Warranty information
  • Price: 260 USD
We recommend checking out our discussion threads on the Vacron 360° Vehicle Video Recorder and Dash Camera MD657, which address similar problems with connecting and setting up Dashcams Vacron.



User manual for the Vacron 360° Vehicle Video Recorder and Dash Camera MD657

The user manual for the Vacron 360° Vehicle Video Recorder and Dash Camera MD657 provides necessary instructions for the proper use of the product Surveillance - Vehicle Cameras & GPS Tracking - Dashcams.

Never leave your car unattended again with the 360° Vehicle Video Recorder and Dash Camera from Vacron. Equipped with an in-car DVR, a camera with 4-lenses for recording in various directions, and an integrated GPS tool, your car will monitor its inhabitants and surroundings, regardless of whether the car is powered on or not.

The included DVR uses an embedded Linux operating system and features a recording rate of 30 fps for real time recording. Using H.264 compression, the DVR works to provide optimized viewing abilities. Footage can be saved directly to a SDHC memory card and backed-up to a computer by transferring files from the card using the included CarBox software. GPS is integrated into the system for keeping track of the speed and location of the vehicle.

The camera features 4 lenses for capturing footage inside, outside, and to the right and left of the vehicle. The camera features IR LEDs for recording at night and can record footage up to 3' away, even in total darkness. The camera is programmable and can be set to continue recording even when the car is parked, extending your car's surveillance and safety.
If you own a Vacron dashcams and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Vacron 360° Vehicle Video Recorder and Dash Camera MD657 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Vacron 360° Vehicle Video Recorder and Dash Camera MD657:
Digital Video Recorder
Signal Type NTSC / PAL
Operating System Embedded Linux
Display Resolution NTSC: 720 x 480
PAL: 720 x 576
Recording Resolution NTC: 360 x 240 @ CIF, 720 x 480 @ D1
PAL: 360 x 288 @ CIF, 720 x 576 @ D1
Frame Rate (fps) Display: 120 fps (NTSC), 100 fps (PAL)
Recording: 30 fps @ D1 per camera (NTSC), 25 fps @ D1 per camera (PAL)
Playback: 30 fps @ D1 (NTSC), 25 fps @ D1 (PAL)
Inputs/Outputs Video Input: 1-channel
Video Output: 1-channel AV
Audio Input: 1-channel
Audio Output: 1-channel
Alarm Input: 1
Display Mode Spherical 360° image
Multi Function Recording, playback
Compression H.264
Storage Media SDHC memory cards (Class 10 or 4G or higher recommended), backup media to PC using CarBox software
GPS Yes
G-Sensor Yes
IR Yes, extending
Supported Languages English, Traditional Chinese, Simplified Chinese
Power Input 8 to 32 VDC
Dimensions 4.5 x 3.5 x 1.2" / 11.5 x 9.0 x 3.0 cm
Weight Not specified by manufacturer
Camera
Signal Type NTSC / PAL
Image Sensor 1/4" CMOS
Resolution 420 TVL
Pixels NTSC: 640 x 480 (300 K total)
PAL: 640 x 576 (370 K total)
Illumination 10 V (lux per second), 0 lux (IR on)
Viewing Angle Horizontal: 360°
Vertical: 70°
IR Range 3.3' / 1.0 m
Video Processor Digital
Scan System 2:1 crossover
Synchronization Internal
S/N Ratio 45 dB max.
Dynamic Range 65 dB
Signal Output 1 Vp-p standard video output, 75 ohms
Power Input 12 VDC ±1
Current 200 mA (IR off)
Operating Temperature 14 to 140°F / -10 to 60°C
Dimensions Not specified by manufacturer
Weight Not specified by manufacturer
Packaging Info
Package Weight 2.45 lb
Box Dimensions (LxWxH) 11.339 x 6.221 x 4.173"
The user manual for the Vacron 360° Vehicle Video Recorder and Dash Camera MD657 can be downloaded in .pdf format if it did not come with your new dashcams, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Vacron users keep a unique electronic library for Vacron dashcamss, where you can use our link to download the user manual for the Vacron 360° Vehicle Video Recorder and Dash Camera MD657.

The user manual lists all of the functions of the Vacron 360° Vehicle Video Recorder and Dash Camera MD657, all the basic and advanced features and tells you how to use the dashcams. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Vacron service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Vacron 360° Vehicle Video Recorder and Dash Camera MD657. User manuals are also available on the Vacron website under Surveillance - Vehicle Cameras & GPS Tracking - Dashcams.
