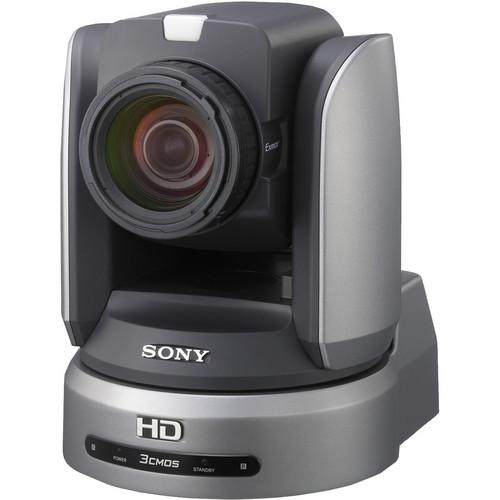

The SONY BRC-H900 1/2" HD 3CMOS Remote PTZ Camera from Vaddio is switchable between NTSC and PAL standards and simultaneously outputs both HD-SDI and SD video. HD/SD flexibility is well-suited for facilities planning to transition to HD, as you can shoot SD now and change over to HD by simply using a different output.
The camera produces HD video in 1080i or 720p using a 1/2" Exmor Full HD 3CMOS sensor and a 5.8-81.2mm / F1.9-F2.8 optical zoom lens. Sensitivity is 4-lux at F1.9 with gain at + 24 db, enabling low light shooting capability. An extensive image-control menu tree is accessible by remote and allows for fine-tuning and optimizing of images. The camera has a slot for a single expansion card, and optional cards are available with HD/SD-SDI output, analog SD output, HD Optical Multiplex capability, and IP control.
You can install the camera on a desk, a tripod via two 1/4" threads, or onto a ceiling using included hardware. An Image Flip feature will let you effectively mount the camera upside down. You can program up to 16 preset positions, especially useful for repetitive events and productions.
Remote operation is a major aspect of the camera. An IR remote control is included and can be set up to individually control three adjacent units. Additionally, an optional RM-BR300 SONY remote control, which functions by connection to the camera's RS-232C or RS-422 ports, can individually control up to 7 daisy-chained cameras over SONY's VISCA protocol. You can also install an optional IP controller card into the camera's expansion slot and remotely control up to 112 daisy-chained cameras. Remote operations consist of pan, tilt, zoom, focus, iris, shutter speed, and gain. Considering the HD quality, the BRC-H900 is suitable not only for conventional PTZ uses but also for e-learning applications.
|
If you own a Vaddio ptz cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Vaddio SONY BRC-H900 1/2" HD 3CMOS Remote PTZ 999-6890-000 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Vaddio SONY BRC-H900 1/2" HD 3CMOS Remote PTZ 999-6890-000:
| Sensor | 1/2" Exmor 3CMOS image sensor | | Resolution | Approx. 2.07 megapixels | | Signal System | 60 Hz:
1080/59.94i
720/59.94p
NTSC
50 Hz:
1080/50i
720/50p
PAL | | Horizontal Resolution | > 1000 TV lines, HD-SDI output, center | | Minimum Illumination | 4 lux (50 IRE, F1.9, +24 dB) | | Shutter Speed Range | 1/8000 to 1/60
1/8000 to 1/50 | | Gain | -3 to 24 dB (Auto / Manual) | | White Balance | One-push / Manual; Auto, Outdoor, Indoor | | Gamma Curve | STD 1, STD 2, STD 3, STD 4, CINE 1, CINE 2, CINE 3, CINE 4 | | Image Stabilization | SteadyShot On/Off | | Image Flip | On/Off selectable | | Video Signal-to-Noise Ratio | 50 dB | | Sync Input | External 1x BNC 75 Ω | | Synchronization System | Internal / external | | Output | HD:
1x SDI HD/SD switchable
1x RGB/Component on 15-pin D-Sub (Component Y/Pb/Pr, RGB, HD, Bi-level VD, Tri-level SYNC)
SD:
1x BNC Composite
1x S-Video Y/C
Camera Control:
1x RS-232C (VISCA IN) on mini DIN 8-pin
1x RS-232C (VISCA OUT) on mini DIN 8-pin
1x RS-422 (VISCA IN/OUT) on mini DIN 9-pin | | Lens | Focal length: f=5.8 - 81.2mm (F1.9 - F2.8)
Zoom Ratio: 14x optical zoom
Minimum Object Distance: 31.5" (80 cm)
Horizontal Viewing Angle: 59.6° at the wide end of the lens
Focusing System: Auto / Manual | | Pan Angle | -170 to +170° | | Tilt Angle | -30 to +90° | | Pan / Tilt Speed | 0.22 to 60°/sec | | Pan / Tilt Preset Positions | 16
Presets 1-6 available using the included Remote Commander
Presets 7-16 require the use of the optional RM-BR300 Remote Control Unit | | Tally Light | 1x on front, 1x on rear | | Expansion Slot | 1x available slot
Card Options
HD/SD-SDI Output Card (BRBK-HSD2)
Analog SD Output Card (BRBK-SA1)
HD Optical Multiplex Card (BRBK-SF1)
IP Control Interface Card (BRBKIP10) | | Mounting | Less than ±15° to the horizontal surface | | Ceiling Mount Bracket | 2x brackets included
Note: When installing to ceiling or shelf, use included wire rope for safety, and confirm that ceiling or shelf can support 132 lb (60 kg) | | Desktop Mounting | Install on a solid level flat surface, ensure camera does not fall | | Tripod Mount | 2x 1/4"-20 threaded receivers | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Power Requirements | 10.8 to 13.2 VDC | | Power Consumption | 28.8 W
With optional cards: 34.2 W | | Dimensions | 7.83 x 10.25 x 9.38" (20 x 26 x 24 cm) | | Weight | 11 lb (5 kg) | | Package Weight | 19.3 lb | | Box Dimensions (LxWxH) | 17.7 x 15.4 x 11.7" | |
