User manual for the Vaddio WallVIEW CCU H700 999-6707-000

The user manual for the Vaddio WallVIEW CCU H700 999-6707-000 provides necessary instructions for the proper use of the product Professional Video - Camcorder & Camera Peripherals - CCUs & Base Stations.

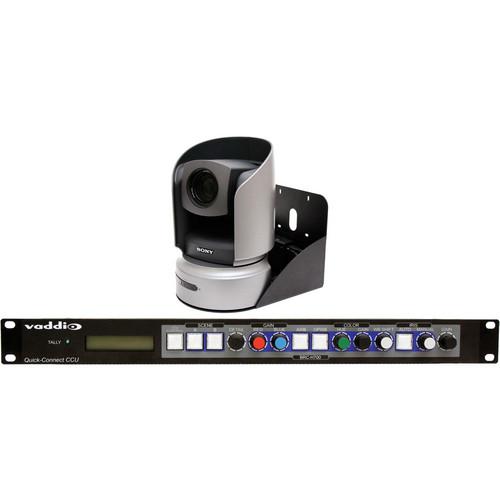

The Vaddio WallVIEW CCU H700 is a high-resolution PTZ camera control system designed to fit the Sony BRC-H700 HD PTZ camera with 3-CCD megapixel sensors and a 12x optical zoom lens; it enables you to adjust color, gain, and iris functions, ensuring that the camera delivers clear images. Able to color-match multiple cameras, the unit allows you to easily make the required changes to the iris and gain controls. Two scene buttons allow you to store camera settings for various lighting conditions.
If you own a Vaddio ccus & base stations and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Vaddio WallVIEW CCU H700 999-6707-000 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Vaddio WallVIEW CCU H700 999-6707-000:
Specifications
    Camera
    Image Device 1/3 type IT CCD x 3
    Effective Picture Elements 1.12 Megapixels (approximately)
    Lens 12x Optical Zoom (48x with digital zoom)
    Focal Length f=4.5 to 54mm
    Horizontal Viewing Angle 5.5 to 60.3 degrees
    Signal to Noise Ratio 50 dB
    Pan & Tilt Pan/Tilt Angle: -170 to +170 degrees (Pan), -30 to +90 degrees (Tilt)
    Quick-Connect CCU Interface (QCCU)
    Connectors Power Connector: 5.5mm OD x 2.5mm ID
    Power RJ-45: Supplies 36V to EZCamera Interface Module Regulator
    Control In RJ-45: Accepts RS-232 from ProductionVIEW or other non-daisy-chain control systems
    Control Out RJ-45: Passes RS-232 and Sync video feed to camera EZIM
    Tally: 2-Pin Phoenix type spring cage connector
    Video Inputs: BNC Connector for Sync
    Video Outputs: BNC Connectors for HD Component (Y,PB,PR) / SD (optional SD card in camera required)
    Video RJ-45: Transports HD video from camera EZIM
    Camera Select Switch Selection switch for camera that will be operated with the CCU
    Video Adjustments Y-Gain (luminance gain) for fine tuning over longer cable distances
    Distance Compensation: 100', 200', 300', 400'+
    CAT-5 Cable Distance Up to 500' (152.4 m)
    Power Supply 36VDC, 2.8 Amp
    Dimensions (WxHxD) 1-RU Rack Mount

    19 x 1.8 x 6" (4.3 x 4.5 x 15.2cm)
    EZCamera Interface Module CCU
    Connectors Three (3) RJ-45 Connectors
    One DB-25 for Power, Video, Control & Gen Lock (n/a for HD1 camera)
    Cable Assembly For Sony H700 Camera: DB-25M to DB-15HD/BNC x 2/8-Pin Mini Din/EIAJ4 Power Connector
    Power Regulator Supplies 12VDC to Camera
    Dimensions (WxHxD) 4.5 x 3 x 1.2" (11.4 x 7.6 x 3cm)
    Thin Profile Wall Mount
    Materials 12-Gauge CRS with Black Powder Coat Paint
    Dimensions (WxHxD) 8.5 x 8 x 11.5" (21.6 x 20.3 x 29.2cm)
    Weight 5.6 lbs (2.5kg)
    The user manual for the Vaddio WallVIEW CCU H700 999-6707-000 can be downloaded in .pdf format if it did not come with your new ccus & base stations, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Vaddio users keep a unique electronic library for Vaddio ccus & base stationss, where you can use our link to download the user manual for the Vaddio WallVIEW CCU H700 999-6707-000.

    The user manual lists all of the functions of the Vaddio WallVIEW CCU H700 999-6707-000, all the basic and advanced features and tells you how to use the ccus & base stations. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Vaddio service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Vaddio WallVIEW CCU H700 999-6707-000. User manuals are also available on the Vaddio website under Professional Video - Camcorder & Camera Peripherals - CCUs & Base Stations.
