User manual Vello FreeWave Viewer Wireless Live View Remote for Canon FW-VC

Operating instructions and pdf manual for use - Vello FreeWave Viewer Wireless Live View Remote for Canon FW-VC User manual, User manual Vello FreeWave Viewer Wireless Live View Remote for Canon FW-VC, Vello, FreeWave, Viewer, Wireless, Live, View,


User manual for Vello FreeWave Viewer Wireless Live View Remote for Canon FW-VC

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Vello FreeWave Viewer Wireless Live View Remote for Canon FW-VC
  • Manufacturer: Vello
  • Basic description and contents of package
  • Product classification: Photography - Photo Accessories - Shutter Releases
  • Safety instructions
  • Startup and operation of the shutter releases
  • Tips for setting up your Vello
  • Settings and expert assistance
  • Contact Vello service
  • Troubleshooting
  • Warranty information
  • Price: 200 USD
We recommend checking out our discussion threads on the Vello FreeWave Viewer Wireless Live View Remote for Canon FW-VC, which address similar problems with connecting and setting up Shutter Releases Vello.



User manual for the Vello FreeWave Viewer Wireless Live View Remote for Canon FW-VC

The user manual for the Vello FreeWave Viewer Wireless Live View Remote for Canon FW-VC provides necessary instructions for the proper use of the product Photography - Photo Accessories - Shutter Releases.

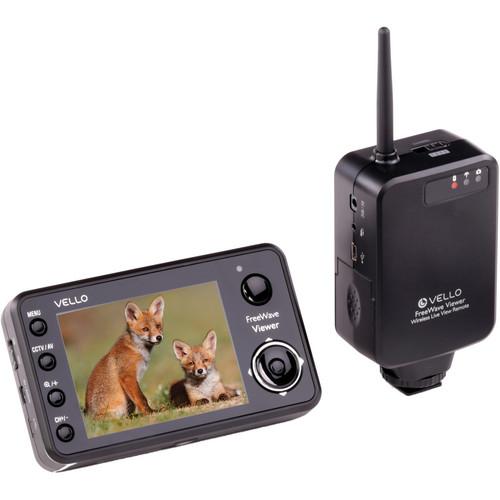

The Vello FreeWave Viewer Wireless Live View Remote for Canon contains a 3.5" live view TFT-LCD monitor and 2.4GHz radio transmitter to provide a wireless viewing system that also enables remote shutter control from a distance up to 200' away from the camera.

The live view monitor features a 3.5" display with a 320 x 240 resolution that is able to provide a real time view of what your camera is seeing. The monitor's design integrates a remote shutter release button that supports half-press control for pre-focusing and acquiring auto exposure settings. Additionally, an enlarge mode is available for magnifying details within the scene. A dedicated button allows switching between AV (live view) and CCTV modes for different perspectives of monitoring and a channel switch button permits changing between different transmitter channels. A 1/4"-20 tripod socket is located on the bottom of the unit and the brightness of the display can be manually controlled.

The transmitter can attach to the camera via its hot shoe or to a 1/4"-20 threaded mount and connects to the camera using both an AV and a shutter release cable. The AV connection provides the live view signal for remote viewing on the monitor and the shutter release cable allows for wirelessly releasing the shutter from the monitor. A CCTV camera is also integrated into the transmitter's design and incorporates a 45mm lens (35mm equivalent focal length) to provide a slightly wider-than-normal perspective for viewing subjects in front of the camera. The CCTV camera is especially useful for situations when using a telephoto or long lens to photograph details and monitoring when a moving subject is about to enter the frame. Additionally this camera's functionality is ideal for use when the connected camera does not support live view or if trying to conserve the camera's battery life for extended viewing sessions. The 2.4GHz radio transmitter operates amongst four selectable channels for greater control when more than one unit is being used within 200' proximity.

Included with the transmitter and monitor are both AV and shutter release cables, which allow live view monitoring and shutter control with Canon EOS Rebel XS, XSi, T1i, T2i, T3i, T4i, T5i, SL1 EOS 50D, 60D, 70D, 5D Mark II, 5D Mark III, 6D, 7D, 1D Mark IV, 1D X, PowerShot G11, G12, and G1 X digital cameras. If only controlling the shutter via the remote monitor and using the transmitter's CCTV as the viewing source, a wide range of shutter release cables are optionally available. The monitor requires four AA batteries for use and standby operation can last approximately 500 hours, while dedicated use will last approximately 10 hours per charge. The transmitter also requires four AA batteries and will last approximately 100 hours in standby mode and 8 hours in usage mode.
If you own a Vello shutter releases and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Vello FreeWave Viewer Wireless Live View Remote for Canon FW-VC in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Vello FreeWave Viewer Wireless Live View Remote for Canon FW-VCDownload user manual for Vello FreeWave Viewer Wireless Live View Remote for Canon FW-VC
(PDF file, 2.42 MB)
Additional parameters of the Vello FreeWave Viewer Wireless Live View Remote for Canon FW-VC:
Radio Frequency ISM 2.4 GHz
Wireless Range 200' / 61 m
Number of Channels 4
Monitor 3.5" TFT-LCD
Monitor Resolution 320 x 240
CCTV Lens Focal Length 45 mm (35 mm equivalent)
Transmitter Input/Output AV/mic mini in, Sub-mini sync in, USB power in, DC 5 V in
Viewer Input/Output AV/audio mini out, USB power out
Power Source 8x AA batteries (4x per unit)
USB power input
Battery Life > 10 hrs
Dimensions Transmitter: 6.5 x 2.5 x 1.5" / 16.5 x 6.4 x 3.8 cm
Viewer: 4.8 x 2.9 x 1.1" / 12.2 x 7.4 x 2.8 cm
Weight Transmitter: 3.1 oz / 87.9 g (without batteries)
Viewer: 4.5 oz / 127.6 g (without batteries)
Packaging Info
Package Weight 1.0 lb
Box Dimensions (LxWxH) 8.1 x 5.0 x 3.8"
The user manual for the Vello FreeWave Viewer Wireless Live View Remote for Canon FW-VC can be downloaded in .pdf format if it did not come with your new shutter releases, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Vello users keep a unique electronic library for Vello shutter releasess, where you can use our link to download the user manual for the Vello FreeWave Viewer Wireless Live View Remote for Canon FW-VC.

The user manual lists all of the functions of the Vello FreeWave Viewer Wireless Live View Remote for Canon FW-VC, all the basic and advanced features and tells you how to use the shutter releases. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Vello service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Vello FreeWave Viewer Wireless Live View Remote for Canon FW-VC. User manuals are also available on the Vello website under Photography - Photo Accessories - Shutter Releases.
