User manual Velodyne Digital Drive PLUS 18" Subwoofer 80-DDP18BG

Operating instructions and pdf manual for use - Velodyne Digital Drive PLUS 18" Subwoofer 80-DDP18BG User manual, User manual Velodyne Digital Drive PLUS 18" Subwoofer 80-DDP18BG, Velodyne, Digital, Drive, PLUS, 18, Subwoofer, 80-DDP18BG,


User manual for Velodyne Digital Drive PLUS 18" Subwoofer 80-DDP18BG

Velodyne Digital Drive PLUS 18
  • Manufacturer: Velodyne
  • Basic description and contents of package
  • Product classification: TVs & Entertainment - Speakers - Subwoofers
  • Safety instructions
  • Startup and operation of the subwoofers
  • Tips for setting up your Velodyne
  • Settings and expert assistance
  • Contact Velodyne service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Velodyne Digital Drive PLUS 18" Subwoofer 80-DDP18BG, which address similar problems with connecting and setting up Subwoofers Velodyne.



User manual for the Velodyne Digital Drive PLUS 18" Subwoofer 80-DDP18BG

The user manual for the Velodyne Digital Drive PLUS 18" Subwoofer 80-DDP18BG provides necessary instructions for the proper use of the product TVs & Entertainment - Speakers - Subwoofers.

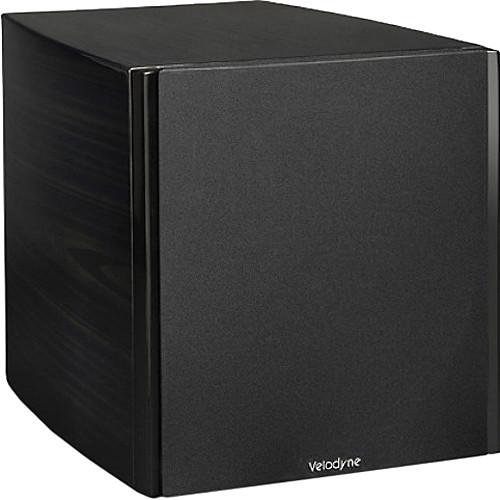

The black gloss ebony Digital Drive PLUS 18" Subwoofer from Velodyne keeps distortion under 0.5%, and offers a good output at 115 dB maximum output.It is 5 dB louder than a sonic boom. It delivers a low frequency response between 14.4 and 120 Hz at 3 dB, and down with a 3000W dynamic amplifier. The subwoofer can be installed in large listening spaces, and allows you to sink into the experience of over 99.5% accurate bass reproduction with a lot of muscle. The 8-band Auto-EQ Plus feature, coupled with and remote-controlled presets ensure that the sub’s settings and output are optimized for your unique listening space so you get the most out of your new equipment. The sub features elegantly curved cabinetry of wood veneer in black gloss ebony.
If you own a Velodyne subwoofers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Velodyne Digital Drive PLUS 18" Subwoofer 80-DDP18BG in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Velodyne Digital Drive PLUS 18" Subwoofer 80-DDP18BG:
Driver 18.0" (45.72 cm) forward firing
Amplifier Class D: 3000 W Dynamic
1250 W RMS Power
Frequency Response Overall: 8.8 to 300 Hz
± 3 dB: 14.4 to 120 Hz
THD <0.5% (typical)
High Pass Crossover 80 or 100 Hz at 6 dB/octave
Low Pass Crossover 40 to 199 Hz (variable in 1 Hz increments) selectable slope
Default: 80 Hz @ 24 dB/Octave
Phase 0 to 180° (variable in 15° increments)
Polarity Adjustable (±)
Structure Magnet: 39.7 lb (18.0 kg)
Voice Coil 6-layer, 3.0" (75.0 mm)
Cone Composition Fiberglass Rohacell Laminate
Inputs Mono: Line level (RCA), Nominal Impedance 47 kΩ
Balanced (XLR), Nominal Impedance 10 kΩ

L&R: Line level (RCA & XLR)

Microphone: Balanced (Mini-XLR, cable included)

Speaker Level (L&R): Supports bare wire, banana plugs, or spade lugs (sold separately)
Outputs Thru (L&R): Line level (RCA & XLR)

L&R, High-Pass: Line level (RCA & XLR)
Dimensions (H x W x D) 22.7 x 20.7 x 25.6" (58.0 x 53.0 x 65.0 cm)

Includes feet and connectors.

Weight 140.00 lb (63.50 kg)
Packaging Info
Package Weight 154.0 lb
Box Dimensions (LxWxH) 31.0 x 29.0 x 17.0"
The user manual for the Velodyne Digital Drive PLUS 18" Subwoofer 80-DDP18BG can be downloaded in .pdf format if it did not come with your new subwoofers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Velodyne users keep a unique electronic library for Velodyne subwooferss, where you can use our link to download the user manual for the Velodyne Digital Drive PLUS 18" Subwoofer 80-DDP18BG.

The user manual lists all of the functions of the Velodyne Digital Drive PLUS 18" Subwoofer 80-DDP18BG, all the basic and advanced features and tells you how to use the subwoofers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Velodyne service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Velodyne Digital Drive PLUS 18" Subwoofer 80-DDP18BG. User manuals are also available on the Velodyne website under TVs & Entertainment - Speakers - Subwoofers.
