User manual for the Veracity Longspan Long Range Ethernet & PoE Extender Kit

The user manual for the Veracity Longspan Long Range Ethernet & PoE Extender Kit provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired Networking - Ethernet Extenders.

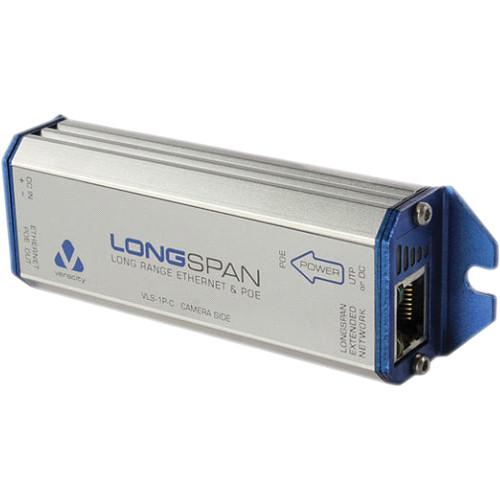

This kit from B&H includes one Veracity VLS-1P-B Longspan Ethernet converter and one Veracity VLS-1P-C Longspan Ethernet converter, that allows you to lengthen your Ethernet cable runs and supply PoE or PoE Plus power to IP cameras installed beyond the standard 328 foot limit. The units work in pairs, with one base unit (VLS-1P-B) and one camera unit (VLS-1P-C) required. The units support PoE up to two thousand six hundred feet, and PoE Plus up to two thousand feet. If you need to extend your cable run further, you can use multiple base/camera pairs.

The units are simple to use and are self configuring, and are powered by PoE, so no additional power supplies are required when using a network with PoE. If you network does not supply PoE/PoE Plus, an optional power supply is available that connects to the base unit and supplies power for both the base and camera unit. The optional power supply can also supply PoE or PoE Plus power for IP cameras that power via Poe/PoE Plus. The Longspan Ethernet converters support Cat 5/5e, Cat 6/6e cable and UTP (unshielded twisted pair) wiring. So, for example, if you are upgrading your previous security camera system to an IP camera, you can use pre-existing one, two or four pair UTP wiring and avoid running new Ethernet cable between the camera position and your network switch.
If you own a Veracity ethernet extenders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Veracity Longspan Long Range Ethernet & PoE Extender Kit in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Veracity Longspan Long Range Ethernet & PoE Extender Kit:
Specifications
    • Veracity Single LONGSPAN Converter (Extended POE In, POE Out)
      Power POE in (base): IEEE 802.3af (POE) or IEEE 802.3at (POE Plus), 2-event, power class 4
      POE out (camera): IEEE 802.3AF (POE) or IEEE 802.3at (POE Plus)
      DC power in (base): Detachable screw terminal for optional Veracity 57 V supply
      Device Connector: RJ45

      Cable: Cat 6, Cat 5e, Cat 3, other 1/2/4-pair UTP Patch wiring recommended, other wiring auto-corrected

      Rate: 200 Mb/s up to 1968.50’/600.00 m (Cat 6)
                 20 Mb/s up to 3280.83’/1000.00 m (Cat 6), auto-adapts

      Ethernet Connector: RJ45

      Cable: Patch or crossover, auto detected

      Rate: 100Base-TX or 10Base-T, full-duplex with auto-negotiation

      LEDs Ethernet: Link/activity, power good

      LONGSPAN: Link/activity, rate

      SafeView (POE models only): Power available (5/10/15/20/25 watts) POE and link status (green/amber), diagnostic codes (red)

      Physical
      Operating Temperature -40 to 158°F (-40 to 70°C)
      Relative Humidity 85% non-condensing
      Compliance FCC, CE, RoHS
      Dimensions (L x W x H) Including Removable Mounting Brackets: 4.7 x 1.4 x 0.9" (120.0 x 36.0 x 23.0 mm)
      Weight 3.5 oz (100 g)
      Packaging Info
      Box Dimensions (LxWxH) 5.4 x 2.4 x 0.8"
    • Veracity LONGSPAN Long Range Ethernet & PoE Converter
      Power POE in (base): IEEE 802.3af (POE) or IEEE 802.3at (POE Plus), 2-event, power class 4

      POE out (camera): IEEE 802.3AF (POE) or IEEE 802.3at (POE Plus)

      DC power in (base): Detachable screw terminal for optional Veracity 57 V supply

      Device Connector: RJ45

      Cable: Cat 6, Cat 5e, Cat 3, other 1/2/4-pair UTP Patch wiring recommended, other wiring auto-corrected

      Rate: 200 Mb/s up to 1,968.50’/600.00 m (Cat 6)

               20 Mb/s up to 3,280.83’/1000.00 m (Cat 6), auto-adapts

      Ethernet Connector: RJ45

      Cable: Patch or crossover, auto detected

      Rate: 100Base-TX or 10Base-T, full-duplex with auto-negotiation

      LED Ethernet: Link/activity, power good

      LONGSPAN: Link/activity, rate

      SafeView (POE models only): Power available (5/10/15/20/25 W) POE and link status (green/amber), diagnostic codes (red)

      Physical
      Operating Temperature -40 to 158°F (-40 to 70°C)
      Relative Humidity 85% non-condensing
      Compliance FCC, CE, and RoHS
      Dimensions (L x W x H) 4.7 x 1.4 x 0.9" (120.0 x 36.0 x 23.0 mm)
      Weight 3.5 oz (100.0 g)
      Packaging Info
      Box Dimensions (LxWxH) 5.4 x 2.4 x 1.3"
