User manual for the Video Devices PIX 240i 5" Portable Video PIX 240I KIT

The user manual for the Video Devices PIX 240i 5" Portable Video PIX 240I KIT provides necessary instructions for the proper use of the product Professional Video - Recorders & Duplication - Solid State/HDD Recorders.

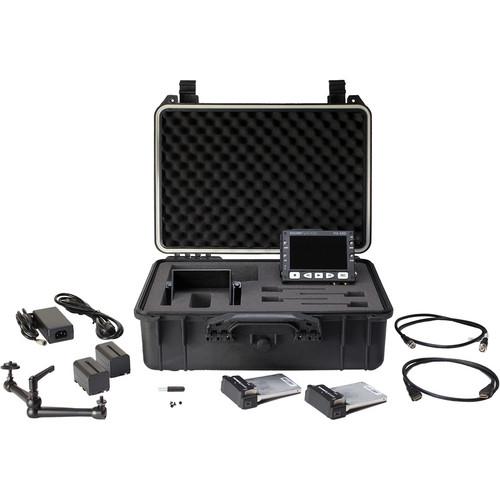

The Sound Devices PIX 240i 5" Portable Video Recorder & Monitor Kit includes the PIX 240i external video recorder and monitor in a robust weatherproof case full with accessories for power, storage, mounting, and monitoring. You get two batteries and an AC adapter, two Sound Devices-approved SSDs and two caddies for securely inserting and locking the SSDs in the recorder, an articulating arm for camera-top mounting and a small stand for tabletop use, a sun shield, and a 3 ft SDI cable and 3 ft HDMI cable. The two caddies also offload the SSD contents via FireWire or USB 3.0.

The PIX 240i features gold-plated 3G-SDI and HDMI video inputs and outputs. By SDI, you can record 1080p 4:4:4 color information in 12-bit color depth to Apple's ProRes 4444 codec, or 1080p 4:2:2 10 or 8-bit to ProRes or Avid's DNxHD, and by HDMI you can record 4:4:4 or 4:2:2 in 10 or 8-bit. For ProRes 4444, the transfer rate is 330Mbps and for the other codecs 220Mbps. All recordings get stored as QuickTime .MOV files to either CF cards or 2.5" SSDs. A built-in scaler will let you perform up, down and cross conversion, pulldown removal, and HD-to-SD / HD-to-SD aspect ratio conversion.

The SDI input and output both support 8-channel, 48k embedded audio, and the HDMI input supports two channels and the output eight channels. For independent audio, the PIX 240i also has full-sized XLR audio inputs for microphone or line level signals. Microphone-level inputs offer 48V phantom power, input limiters, and sweepable high-pass filters. Inputs can also be set to accept up to four channels of AES3 digital audio.

The difference between the PIX 240i and the preceding PIX 240 is that the 240i is equipped with an IPS display which affords an ultra-wide viewing angle. The display is 5" diagonally, glossy, and has an 800 x 480 resolution. Monitoring functions include 12-step False Color, two-level Zebra, 1:1 Pixel Mapping, and Peaking. You can also overlay audio metering, timecode, file type, record status, and frame rate information.

The small stand above-mentioned as one of the accessories is about 2" long and attaches into a 1/4" thread between the two battery mounts on the rear of the monitor to allow you to stand the monitor on a flat surface, like standing a picture frame on a table. The two included SSDs are 240GB PIX-SSD5 Sound Devices drives with a 550 MB/s read speed and 520 MB/s write speed. The supplied sun shield attaches firmly to the four corners of the front of the recorder. And the weatherproof case is made of strong and corrosion-resistant high-density polymer, features a compartmentalized foam interior, and measures a handy 18 x 14 x 7" (approx.).
If you own a Video Devices solid state/hdd recorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Video Devices PIX 240i 5" Portable Video PIX 240I KIT in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Video Devices PIX 240i 5Download user manual for Video Devices PIX 240i 5" Portable Video PIX 240I KIT
(PDF file, 3.45 MB)
Additional parameters of the Video Devices PIX 240i 5" Portable Video PIX 240I KIT:
SDI Input & Output 4:4:4 or 4:2:2; 12, 10, or 8-bit

Input: 3G-SDI (levels A and B), HD-SDI, or SDI
Output: 3G-SDI (level A), HD-SDI, or SDI

SMPTE 12M-1, 12M-2, 125M, 259M, 272M, 291M, 292, 296M, 299, 352M, 372, 424, 425
HDMI Input & Output Input: v1.4a, 4:4:4 or 4:2:2, RGB or YCbCr, 10 or 8-bit, HDCP-enabled
Output: v1.3, 4:2:2 8-bit, RGB and YCbCr
Video Input Resolutions / Rates 1080p23.976/24/25/29.97/30
1080i50/59.94/60
1080PsF23.976/24/25/29.97/30
720p23.976/24/25/29.97/30 (SDI only)
720p50/59.94/60
576i50 (PAL)
480i59.94 (NTSC)
Video Codecs and Files Apple ProRes 4444, 330 Mb/s, 12-bit
Apple ProRes 36, 100, 145, 220 Mb/s, 8 and 10-bit
Avid DNxHD 36, 100, 145, 220 Mb/s, 8 and 10-bit
QuickTime wrapper (.MOV), UDF file system
Up/Down/Cross Conversion 480i, 576i, 720p, 1080i, 1080p to any 480i, 576i, 720p, 1080i, 1080p
Hardware based, 10-bit
Frame Rate Conversion 24, 25, 30, 50, 60 to 24, 25, 30, 50,60, 23.976, 29.97, 59.94 to 23.976, 29.97, 59.94, automatic 3:2 pull-down removal in 23.976 and 24 frame modes, other pull-down cadences include 2:2:2:4, 2:3:3:2, 3:2:3:2:2, and 2:2
Hardware based, 10-bit
LCD Display 5" (12.7 cm), 800 x 480 pixel LCD display, glossy
IPS (In-Plane Switching) enables ultra wide viewing angle and color accuracy
Audio Recording 8 channels record/playback, simultaneous with video
Analog, HDMI or SDI, AES/EBU, selectable per channel
Analog Audio 2 balanced, mic- or line-level inputs on XLR (48 V phantom switchable)
2 balanced, line-level outputs on 5-pin XLR
Frequency Response: 10 Hz-20 kHz, +/- 0.5 dB re 1 kHz
THD + Noise: 0.004% max (1 kHz, 22 Hz-22 kHz)
Input and Output Topology: fully electronically balanced, line-level, RF, ESD, short, and overload protected; pin-2 hot, pin-3 cold
Line Output Clipping Level: +18dBu
Output Attenuation: 0-20 dB, 1 dB increments
Headphone, 1/8" with gain control
Digital Audio Sampling Rate / Bit Depth: 48 kHz, 24-bit
AES/EBU: 4 channels in via XLR, 110 ohm, 2 V p-p
Accepts 32k, 44.1k, 48k, 96k, 192k sample rates with SRC at input
HDMI: 2 channels embedded HDMI input, 8 channels embedded HDMI output
Accepts 32k, 44.1k, 48k, 96k, 192k sample rates
SDI: 8 channels embedded SDI input, 8 channels embedded SDI output, 48k sample rate
File Storage The following can be used as storage media:

Sound Devices approved 2.5-inch drive:
"PIX-CADDY 2" mounted drive
eSATAp-connected drive

Sound Devices approved CompactFlash card

(* eSATAp supplies 5 V @ 2A)
Timecode Modes supported: Freerun, Record run, External
Frame rates: 23.976, 24, 25, 29.97DF, 29.97ND, 30DF, 30ND
Accuracy: +/- 0.2ppm, holds accurate time code for 2 hours after power is removed
Inputs / Outputs: BNC (LTC input and output), SDI or HDMI (Sony protocol), LEMO 5-pin
Sync Output Analog bi-, tri-level sync / genlock
Wordclock (square wave, 48 kHz sampling rate, 3.3 vp-p, 75 ohm)
Sync Input Analog bi-, tri-level sync / genlock
Wordclock (square wave, 48 kHz sampling rate, 3.3 vp-p, 75 ohm)
Control Record triggering via SMPTE timecode
LANC or GPIO on 2.5 mm jack
Keyboard USB host; keyboards without hubs supported
Power 4-pin Hirose, 10-18 VDC, pin-1 (-) pin-4 (+)
Operating Temperature 14 to 104°F (-10 to 40°C)
Dimensions 5.5 x 4 x 2.4" (14 x 10.2 x 6.1 cm)
Weight 2 lb (0.91 kg)
Packaging Info
Package Weight 15.3 lb
Box Dimensions (LxWxH) 18.5 x 14.7 x 8.8"
The user manual for the Video Devices PIX 240i 5" Portable Video PIX 240I KIT can be downloaded in .pdf format if it did not come with your new solid state/hdd recorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Video Devices users keep a unique electronic library for Video Devices solid state/hdd recorderss, where you can use our link to download the user manual for the Video Devices PIX 240i 5" Portable Video PIX 240I KIT.
