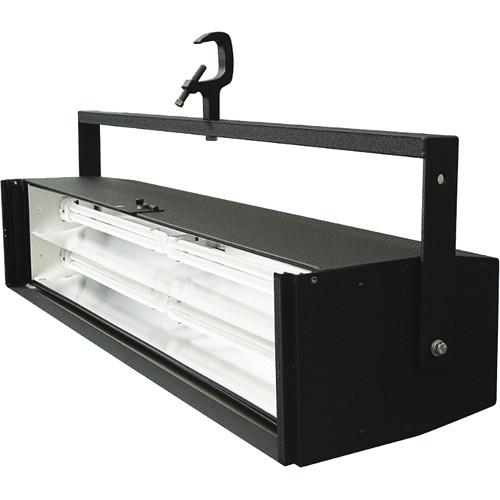

Click to enlarge image
|
We recommend checking out our discussion threads on the Videssence Power CYC PC220-455BX Focusable PC220-455BX-OB-120,
which address similar problems with connecting and setting up Fluorescent Lights Videssence.
|
User manual for the Videssence Power CYC PC220-455BX Focusable PC220-455BX-OB-120
The user manual for the Videssence Power CYC PC220-455BX Focusable PC220-455BX-OB-120 provides
necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - Fluorescent Lights.
This 120 VAC, onboard dimmable Power CYC PC220-455BX Focusable Fluorescent Light Fixture from Videssence is a 220W compact fluorescent unit with variable beam spread. Each of the 4 lamps adjusts separately with external slide knobs at the back of the fixture to allow a beam angle range from 60° to 90°. The fixture provides concentrated, even coverage for studio cycloramas or fill lighting applications. Additional control can be achieved with gel frame and barn door accessory options.
|
If you own a Videssence fluorescent lights and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Videssence Power CYC PC220-455BX Focusable PC220-455BX-OB-120 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Videssence Power CYC PC220-455BX Focusable PC220-455BX-OB-120:
| Material | 0.063 Formed aluminum, black textured TGIC polyester coat finish | | Lamps | 4x 55W fluorescent, T55W/2G11/830, 4-pin
Color temperature: 3,000 K (standard) Lamp life: 12,000 hr
CRI: 82 | | Light Intensity | 4,800 Lumen per lamp | | Beam Angle | Adjustable: 60 - 90° | | Ballast | 2x 2-Lamp ballasts: 120 VAC, 60 Hz HPF electronic | | Dimming | Yes, onboard | | Socket | Molded white thermoplastic with push wire connections and 18 gauge leads | | Mounting | 0.125 Welded aluminum yoke
Rotates vertically through the yoke and horizontally through included pipe clamp | | Control | Local | | Input Voltage | 120 VAC, 60 Hz | | Power Factor | >.97 | | Sound | Class A sound rating and THD of <20% | | Cable | 16' (4.9 m) Power cord with NEMA5-15 3-prong plug
In-line switch | | Dimensions | 51.37 x 9.0 x 13.15" (130.5 x 23 x 33.4 cm) | | Weight | 30 lb (13.5 kg) | |
