User manual for ViewSonic PJD8653ws WXGA Ultra Short Throw DLP Network PJD8653WS

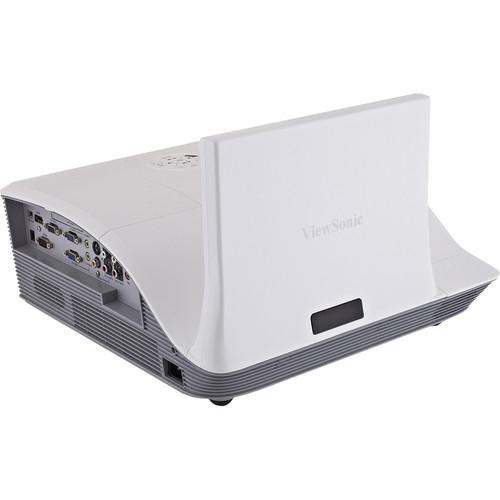

ViewSonic PJD8653ws WXGA Ultra Short Throw DLP Network PJD8653WS
  • Manufacturer: ViewSonic
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your ViewSonic
  • Settings and expert assistance
  • Contact ViewSonic service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the ViewSonic PJD8653ws WXGA Ultra Short Throw DLP Network PJD8653WS, which address similar problems with connecting and setting up Multimedia Projectors ViewSonic.



User manual for the ViewSonic PJD8653ws WXGA Ultra Short Throw DLP Network PJD8653WS

The user manual for the ViewSonic PJD8653ws WXGA Ultra Short Throw DLP Network PJD8653WS provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

The flexible ViewSonic PJD8653ws WXGA Ultra Short Throw DLP Network Projector is designed to deliver widescreen presentations from a short distance. With an ultra short throw lens, the PJD8653ws can project an 81" (2.1 m) image from only 2' (0.6 m) away. This increases the flexibility of where you can mount the projector, whether it is in a classroom or conference room setting. This also eliminates the blinding light and shadows that result from the presenter having to walk in front of the projector's lamp.
If you own a ViewSonic multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ViewSonic PJD8653ws WXGA Ultra Short Throw DLP Network PJD8653WS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for ViewSonic PJD8653ws WXGA Ultra Short Throw DLP Network PJD8653WSDownload user manual for ViewSonic PJD8653ws WXGA Ultra Short Throw DLP Network PJD8653WS
(PDF file, 11.52 MB)
Additional parameters of the ViewSonic PJD8653ws WXGA Ultra Short Throw DLP Network PJD8653WS:
Image Display
Display System 1-Chip 0.55" / 1.40 cm DC3 DMD DLP
Native Resolution WXGA - 1280 x 800
Supported Resolutions VGA - 640 x 480
UXGA - 1600 x 1200
Supported Formats Not Specified By Manufacturer
Format NTSC 3.58, 4.43, M
PAL 60, B, D, G, H, I, M, N
SECAM B, D, G, K, K1, L
HDTV Compatibility 720p
1080i
1080p
Pixels 1,024,000
Brightness 3000 Lumens
Projection Angle Not Specified By Manufacturer
Uniformity Not Specified By Manufacturer
Offset Not Specified By Manufacturer
Aspect Ratio Native: 16:10
Supported: 4:3
Supported: 16:9
Dynamic Contrast Ratio 15000:1
DLP Link 3D None
Color Range 1.07 Billion
Scan Horizontal: 31 - 100 kHz
Vertical: 48 - 120 Hz
Lens
Lens Not Specified By Manufacturer
Lens Shift Not Specified By Manufacturer
Zoom None
Throw Distance 1.7 - 2.5' (0.5 - 0.8 m)
Throw Ratio 0.35:1
Projection Size 70 - 100" / 1778.00 - 2540.00 mm
Features
Keystone Correction Yes, Vertical: ± 20°
Picture-in-Picture None
Ceiling Mountable Yes
Rear Screen Projection Yes
Projection Tilt Option Yes
Built-in Speaker Yes, 16 W (Stereo)
Input/Output Connectors
Inputs/Outputs 2x RCA Stereo (L/R) Audio (Input)
2x 1/8" (3.5 mm) Mini Audio (Output)
2x 15-pin VGA Video (Input)
1x RCA Composite Audio/Video (Input)
1x S-Video Video (Input)
1x 15-pin VGA Video (Output)
1x RS-232C Control
1x HDMI Audio/Video (Input)
1x Ethernet LAN
1x 12 V 1 A Service
General
Lamp (Bulb) Not Specified By Manufacturer
Watts 240 W
Life Normal Mode: 3500 Hours
Eco+ Mode: 5000 Hours
smartEco Mode: 7000 Hours
Fan Noise Normal Mode: 34 dB
Eco Mode: 32 dB
Maximum Pixel Clock Not Specified By Manufacturer
Remote Control Yes
Security Password Protection
Power Requirements 100-240 VAC, 50/60 Hz
Power Consumption Normal Mode: 300 W
Standby Mode: <.5 W
Altitude 0 - 10000' (0 - 3048 m)
Temperature Operating
32 to 104°F (0 to 40°C)
Humidity: 0 - 40%
Dimensions (WxHxD) 14.1 x 9.9 x 14.4" / 358.1 x 251.5 x 365.8 mm
Weight 16.1 lb / 7.30 kg
Packaging Info
Package Weight 21.55 lb
Box Dimensions (LxWxH) 18.0 x 18.0 x 13.5"
The user manual for the ViewSonic PJD8653ws WXGA Ultra Short Throw DLP Network PJD8653WS can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ViewSonic users keep a unique electronic library for ViewSonic multimedia projectorss, where you can use our link to download the user manual for the ViewSonic PJD8653ws WXGA Ultra Short Throw DLP Network PJD8653WS.

The user manual lists all of the functions of the ViewSonic PJD8653ws WXGA Ultra Short Throw DLP Network PJD8653WS, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ViewSonic service.
