User manual ViewSonic Pro8600 XGA DLP Projector PRO8600

Operating instructions and pdf manual for use - ViewSonic Pro8600 XGA DLP Projector PRO8600 User manual, User manual ViewSonic Pro8600 XGA DLP Projector PRO8600, ViewSonic, Pro8600, XGA, DLP, Projector, PRO8600, Video


User manual for ViewSonic Pro8600 XGA DLP Projector PRO8600

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

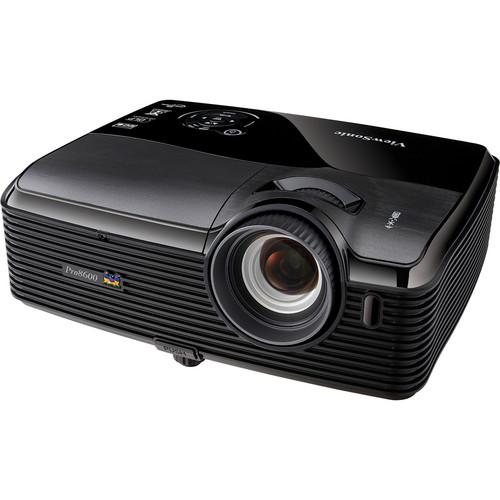

ViewSonic  Pro8600 XGA DLP Projector PRO8600
  • Manufacturer: ViewSonic
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your ViewSonic
  • Settings and expert assistance
  • Contact ViewSonic service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the ViewSonic Pro8600 XGA DLP Projector PRO8600, which address similar problems with connecting and setting up Multimedia Projectors ViewSonic.



User manual for the ViewSonic Pro8600 XGA DLP Projector PRO8600

The user manual for the ViewSonic Pro8600 XGA DLP Projector PRO8600 provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

The ViewSonic Pro8600 XGA DLP Projector is a high-performance unit designed to support up to 120Hz frame rate through the 3D DLP Sync. The DLP is able to project two images on the screen at one time to create the 3D image viewed through the active glasses (not included). In addition to the two images on the screen, the DLP chip also sends similar data to the glasses in-between each frame of video.
If you own a ViewSonic multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ViewSonic Pro8600 XGA DLP Projector PRO8600 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for ViewSonic  Pro8600 XGA DLP Projector PRO8600Download user manual for ViewSonic Pro8600 XGA DLP Projector PRO8600
(PDF file, 6.53 MB)
Additional parameters of the ViewSonic Pro8600 XGA DLP Projector PRO8600:
Image Display
Display System 1-Chip 0.7" / 1.78 cm DC3 DMD DLP
Native Resolution XGA - 1024 x 768
Supported Resolutions VGA - 640 x 480
UXGA - 1600 x 1200
Supported Formats Not Specified By Manufacturer
Format NTSC 3.58, 4.43, M
PAL B, D, G, H, I, M, N
SECAM B, D, G, K, K1, L
HDTV Compatibility 720p
1080i
1080p
Pixels 786,432
Brightness 6000 Lumens
Projection Angle Not Specified By Manufacturer
Uniformity Not Specified By Manufacturer
Offset Not Specified By Manufacturer
Aspect Ratio Native: 4:3
Contrast Ratio Not Specified By Manufacturer
Dynamic Contrast Ratio 15000:1
DLP Link 3D Yes
Color Range 1.07 Billion
Scan Horizontal: 31 - 100 kHz
Vertical: 48 - 120 Hz
Lens
Lens Shift Not Specified By Manufacturer
Zoom 1.5x
Throw Distance 3 - 32.8' (0.9 - 10.0 m)
Throw Ratio 1.45 - 2.18:1
Projection Size 30 - 300" / 762.00 - 7620.00 mm
Features
Keystone Correction Yes, Vertical: ± 40°
Picture-in-Picture Not Specified By Manufacturer
Ceiling Mountable Yes
Rear Screen Projection Yes
Projection Tilt Option Yes
Built-in Speaker 20 W (Stereo)
Input/Output Connectors
Inputs/Outputs 1x RS-232C Remote
1x HDMI Audio/Video
1x 15-pin VGA Video (Output)
1x RCA Component Audio/Video (Input)
1x S-Video Video (Input)
1x RCA Composite Audio/Video (Input)
2x 15-pin VGA Video (Input)
1x 1/8" (3.5 mm) Mini Audio (Output)
1x RCA Stereo (L/R) Audio (Input)
2x 1/8" (3.5 mm) Mini Audio (Input)
1x 1/8" (3.5 mm) Mini Microphone (Input)
1x USB Type-A Female
1x USB Type-B Male
1x Mini-USB Type-A Male
General
Lamp (Bulb) Not Specified By Manufacturer
Watts 350 W
Life Normal Mode: 2000 Hours
Eco Mode: 3000 Hours
Fan Noise Normal Mode: 34 dB
Eco Mode: 32 dB
Maximum Pixel Clock Not Specified By Manufacturer
Remote Control Yes
Security Cable Lock Slot
Password Protection
Power Requirements 100-240 VAC, 50/60 Hz
Power Consumption Normal Mode: 408 W
Standby Mode: <.5 W
Altitude 0 - 10000' (0 - 3048 m)
Temperature Operating
32 to 104°F (0 to 40°C)
Humidity: 10 - 90%
Dimensions (WxHxD) 13.1 x 4.3 x 10.4" / 332.7 x 109.2 x 264.2 mm
Weight 8.5 lb / 3.86 kg
Packaging Info
Package Weight 13.45 lb
Box Dimensions (LxWxH) 15.6 x 15.3 x 5.4"
The user manual for the ViewSonic Pro8600 XGA DLP Projector PRO8600 can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ViewSonic users keep a unique electronic library for ViewSonic multimedia projectorss, where you can use our link to download the user manual for the ViewSonic Pro8600 XGA DLP Projector PRO8600.

The user manual lists all of the functions of the ViewSonic Pro8600 XGA DLP Projector PRO8600, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ViewSonic service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ViewSonic Pro8600 XGA DLP Projector PRO8600. User manuals are also available on the ViewSonic website under A/V Presentation - Projectors - Multimedia Projectors.
