User manual ViewSonic VA2252SM 22" Widescreen LED Backlit LCD VA2252SM

Operating instructions and pdf manual for use - ViewSonic VA2252SM 22" Widescreen LED Backlit LCD VA2252SM User manual, User manual ViewSonic VA2252SM 22" Widescreen LED Backlit LCD VA2252SM, ViewSonic, VA2252SM, 22, Widescreen, LED, Backlit, LCD,


User manual for ViewSonic VA2252SM 22" Widescreen LED Backlit LCD VA2252SM

ViewSonic VA2252SM 22
  • Manufacturer: ViewSonic
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your ViewSonic
  • Settings and expert assistance
  • Contact ViewSonic service
  • Troubleshooting
  • Warranty information
  • Price: 140 USD

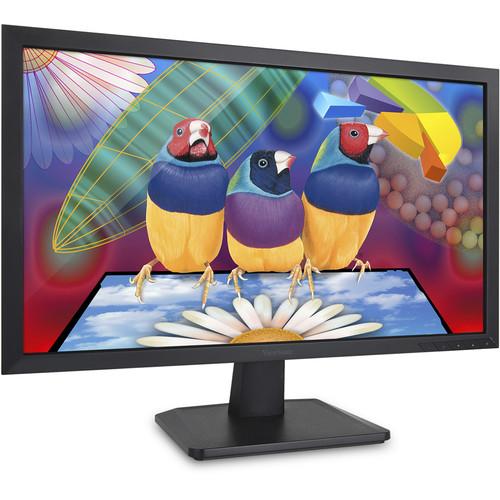

ViewSonic VA2252SM 22 ViewSonic VA2252SM 22
Click to enlarge image

We recommend checking out our discussion threads on the ViewSonic VA2252SM 22" Widescreen LED Backlit LCD VA2252SM, which address similar problems with connecting and setting up Computer Monitors ViewSonic.



User manual for the ViewSonic VA2252SM 22" Widescreen LED Backlit LCD VA2252SM

The user manual for the ViewSonic VA2252SM 22" Widescreen LED Backlit LCD VA2252SM provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

With ViewSonic SuperClear MVA panel technology, the VA2252SM 22" Widescreen LED Backlit LCD Monitor from ViewSonic offers enhanced display clarity complete with a 1920 x 1080 Full HD resolution. Along with the enhanced resolution you benefit from a more dynamic picture with deeper darks and brighter light colors with a 3,000:1 contrast ratio as well as reduced ghosting thanks to the 6.5 ms response time. Setup and configuration of this ViewSonic monitor is simple as it comes equipped with VGA, DVI-D, and DisplayPort connectors. Once configured you can view the display from multiple angles with 178° horizontal and vertical viewing angles and tilt the display from 5° forward to 20° back for improved viewing comfort.
If you own a ViewSonic computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ViewSonic VA2252SM 22" Widescreen LED Backlit LCD VA2252SM in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ViewSonic VA2252SM 22" Widescreen LED Backlit LCD VA2252SM:
Specifications
LCD
Type Color a-Si TFT active matrix LCD
Display Area 18.7 x 10.5" / 47.5 x 26.7 cm
21.5" / 54.6 cm diagonal
Optimum Resolution 1920 x 1080
Contrast Ratio 3,000:1 (typical)
Viewing Angles (H/V) 178°/178°
Response Time 6.5 ms (GtG)
Light Source White-light LED
Brightness 250 cd/m² (typical)
Panel Surface Anti-glare, hard-coating (3H)
Colors 16.7 million (6-bit+Hi-FRC)
Backlight Life 40,000 hours (minimum)
Video Input
Analog/Digital VGA, DVI-D, DisplayPort
Frequency Fh: 24~82 kHz, Fv: 50~75 Hz
Sync Separate sync
Compatibility
PC Up to 1920 x 1080 non-interlaced
Mac Up to 1920 x 1080
Connectors
Analog/Digital 1 x VGA
1 x DVI-D
1 x DisplayPort
Audio (In/Out) 1 x 3.5 mm headphone jack
1 x 3.5 mm audio in
Power 3-pin plug (CE22)
Audio
Speakers 2 x 1.5 W
Power
Voltage 100-240 VAC (universal), 50/60 Hz
Power Consumption Optimize: 17 W (typical)
Consumption: 21 W (typical) / 28 W (maximum)
Conserve: 13 W (typical)
Controls
Basic Controls Power, 1, Up, Down, 2
OSD Controls Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality)
Operating Conditions
Temperature 32 to 104°F / 0 to 40°C
Humidity 10 to 90% non-condensing
Other Specifications
Ergonomics Tilt: Forward 5° / back 20°
VESA Mount 100 x 100 mm
Regulations CE, CB, RoHS, Reach, WEEE, TCO 6.0, Erp, WHQL Windows 8, Windows 7, cUL, ENERGY STAR, FCC-B, EPEAT Silver, Custom Union, UkrSEPRO, CCC, CECP, CEL, BSMI, Green Mark, PSB, C-tick, GEMS
Dimensions With Stand: 20.4 x 15.7 x 7.7" / 51.8 x 40.0 x 19.7 cm
Without Stand: 20.4 x 12.2 x 1.9" / 51.8 x 31.0 x 4.8 cm
Weight With Stand: 7.6 lb / 3.4 kg
Without Stand: 6.8 lb / 3.1 kg
Packaging Info
Package Weight 9.8 lb
Box Dimensions (LxWxH) 22.0 x 15.0 x 4.5"
The user manual for the ViewSonic VA2252SM 22" Widescreen LED Backlit LCD VA2252SM can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ViewSonic users keep a unique electronic library for ViewSonic computer monitorss, where you can use our link to download the user manual for the ViewSonic VA2252SM 22" Widescreen LED Backlit LCD VA2252SM.

The user manual lists all of the functions of the ViewSonic VA2252SM 22" Widescreen LED Backlit LCD VA2252SM, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ViewSonic service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ViewSonic VA2252SM 22" Widescreen LED Backlit LCD VA2252SM. User manuals are also available on the ViewSonic website under Computers & Solutions - Monitors & Displays - Computer Monitors.
