User manual for the ViewSonic VG2428WM-LED Widescreen 24" LED VG2428WM-LED
The user manual for the ViewSonic VG2428WM-LED Widescreen 24" LED VG2428WM-LED provides
necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

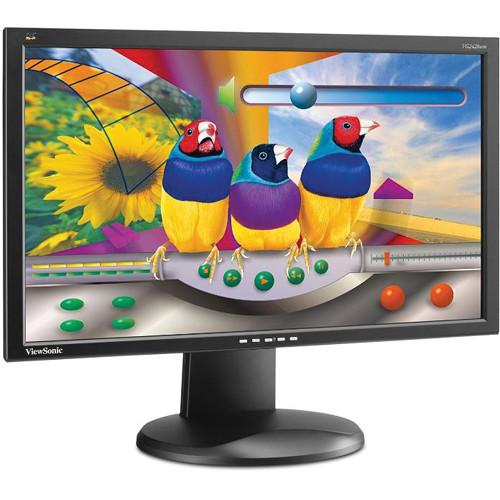

The VG2428WM-LED Widescreen 24" LED Backlit LCD Monitor from ViewSonic supports full HD resolution of 1920 x 1080 on a 16:9 aspect ratio display with both VGA and DVI-D connection options. You benefit from a horizontal viewing angle of 170° and vertical viewing angle of 160° making it possible to see this monitor from a variety of viewpoints. An improved 5ms response time ensures little to no lag when watching fast moving videos. The enhanced viewing capabilities provided by the VG2428WM-LED are placed behind an anti-glare, hard coated panel.
|
If you own a ViewSonic computer monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the ViewSonic VG2428WM-LED Widescreen 24" LED VG2428WM-LED in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the ViewSonic VG2428WM-LED Widescreen 24" LED VG2428WM-LED:
| Type | 24" Wide Color TFT Active Matrix LED | | Display Area | 20.5" horizontal x 11.5" vertical
23.6" diagonal | | Native Resolution | 1920 x 1080 Full HD | | Contrast Ratio | Static: 1,000:1 (typical)
Dynamic: 100,000:1 | | Viewing Angles | Horizontal: 170°
Vertical: 160° | | Response Time | 5ms (typical) | | Light Source | White-light LED with 30,000 hours (min) | | Brightness | 300cd/m² (typical) | | Panel Surface | Anti-glare, hard coating (3H) | | Analog/Digital | RGB Analog (75 ohms, 0.7/1.0 Vp-p)/DVI-D (TMDS, 100 ohms) DisplayPort | | Frequency | Fh = 24 ~ 82 kHz
Fv = 50 ~ 75 Hz | | Sync | H/V Separated (TTL) | | PC | VGA up to 1920 x 1080 @ 60Hz (preferred) | | Mac | Power Mac (up to 1920 x 1080) | | Analog/Digital | 15-pin mini D-sub (VGA) DVI-D (with HDCP) | | USB | USB 2.0 (x2), USB upstream | | Power | Internal Power Board, 3-pin plug (CEE22) | | Speakers | Built-in Speakers | | Power Requirements | Voltage: AC 100-240V (universal), ± 10% Wide Range | | Consumption | 32W (typical) | | Eco Mode | 19W (typical) | | Power Save Mode | 15W (typical) | | Controls | Basic: Power, 1, down, up, 2 | | OSD | Auto Image Adjust, Contrast/Brightness, Input Select (D-SUB, DVI), Audio adjust (Volume Mute), Audio Input, Color Adjust (sRGB, 9300K, 7500K, 6500K, 5000K, User Color [R, G, B]), Information, Manual Image Adjust (H/V Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Response Time, Aspect Ratio, Eco-mode), Setup Menu (Language, Resolution Notice, OSD Position, OSD Timeout, OSD, Background, Auto Power Off), Memory Recall | | Environmental Requirements | Temperature: 32 to 104°F (0 to 40°C)
Humidity: 10 to 90% | | Tilt | Tilt: Forward 5° Back 20°
Swivel: 360°
Height (adjustable): 5.3" (0-135 mm)
Pivot: 0 to 90° | | VESA Mount | 100 x 100 mm | | Regulations | UL/cUL, FCC-B/ICES-003B, TUV-s, UL COC, ENERGY STAR, Mexico Energy, NOM, WEEE, RoHS, REACH SVHC List, CE, CB, TCO 6.0, Windows 7 / Windows 8 | | Dimensions (W x H x D) | With Stand: 22.2 x 17.4 x 9.8" (563.6 x 442.3 x 249 mm)
Without Stand: 22.2 x 13.2 x 2.6" 563.6 x 335.2 x 66.9 mm) | | Weight | With Stand: 14.3 lb (6.5 kg)
Without Stand: 9.7 lb (4.4 kg) | | Package Weight | 20.5 lb | | Box Dimensions (LxWxH) | 25.5 x 20.9 x 12.0" | |
