User manual for the ViewSonic VP2772 27" Adobe Color Widescreen LED VP2772

The user manual for the ViewSonic VP2772 27" Adobe Color Widescreen LED VP2772 provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

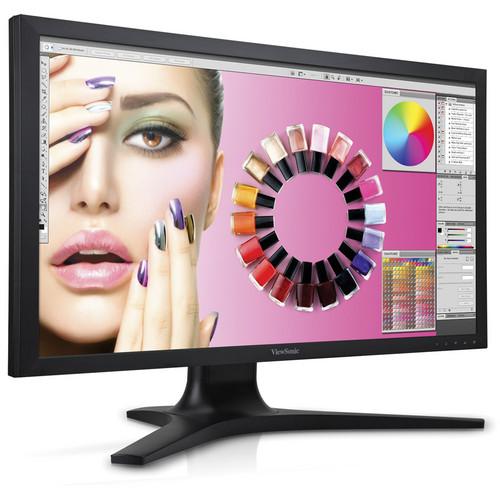

The VP2772 27" Adobe Color Widescreen LED Backlit IPS Monitor from ViewSonic covers 99% of the Adobe RGB color space with an advanced 12-bit color engine and 14-bit LUT. It comes equipped with multiple inputs allowing for versatile connection options. Take advantage of the digital HDMI, DVI, DisplayPort, and Mini DisplayPort input options for stunning high-definition quality picture. The 2560 x 1440 resolution generates an extremely clear picture, while the 20,000,000:1 dynamic contrast ratio keeps the picture crisp and clean. You can also view this monitor from a wide variety of angles with 178° vertical and horizontal viewing angles. The integrated anti-glare screen surface will help reduce glare in varying lighting conditions.
If you own a ViewSonic computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ViewSonic VP2772 27" Adobe Color Widescreen LED VP2772 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for ViewSonic VP2772 27Download user manual for ViewSonic VP2772 27" Adobe Color Widescreen LED VP2772
(PDF file, 0.78 MB)
Additional parameters of the ViewSonic VP2772 27" Adobe Color Widescreen LED VP2772:
Specifications
    Panel/Display
    Type TFT Active Matrix IPS LED
    Viewable Size 23.5 x 13.2" (27.0" diagonal)
    Brightness 350 cd/m²
    Contrast Ratio Typical: 1,000:1
    Dynamic: 20,000,000:1
    Viewing Angle Horizontal: 178°
    Vertical: 178°
    Pixel Dot Pitch Not specified by manufacturer
    Response Time 12 ms
    Panel Life 30,000 Hours
    Colors Supported 68.7 billion
    Signal
    Frequency Fh=24-92 kHz
    Fv=50-75 Hz
    Sync Type Separate Sync
    Resolution 2560 x 1440
    Input/Output Connectors
    Analog RGB Analog (0.7 / 1.0 Vp-p, 75 ohms)
    Digital DVI-D (TMDS, 100 ohms), Display Port, HDMI 1.4
    Audio Input 3.5 mm jack
    Headphone Jack Yes
    USB 4 x USB 3.0, USB Upstream
    Mount VESA Mount Compatible 4 x 4" (100 x 100 mm)
    Controls
    Buttons Power, 1, up, down, 2
    On Screen Display Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
    Touch Screen No
    Tilt/Swivel Range Tilt: Forward 5º, Back 23º
    Swivel: ±60ºbr> Height Adjust: 0-5.9" / 0-150 mm
    Pivot: 0-90º;
    Rotation Yes, 90°
    Compliant Standards CE,CB, BSMI, PSB, C-tick, UL/cUL, CEL, CECP, REACH FCC-B (including ICES003), GOST-R/Hygienic, UkrSEPRO, Erp, CCC, ENERGY STAR®, China Energy, EPEAT Gold, WEEE, RoHS, TUV-S(ULAR), NOM, TCO 6.0
    System Requirements PC Compatible from VGA up to 2560 x 1440 non-interlaced
    Mac Compatible Up to 2560 x 1449
    Power Voltage: AC 100 - 240V (Universal), 50 / 60 Hz
    Consumption: 65 W
    Eco Mode: 53 W
    Power Save Mode: 41 W
    Environmental Requirements Operating Temperature: 32-104°F (0-40°C)
    Operating Humidity: 20-90% non-condensing
    Power Management Energy Star standards / EPEAT Gold
    Dimensions (WxHxD) With Stand: 25.3 x 18.5 x 13.7" (64.3 x 46.3 x 34.8 cm)
    Without Stand: 25.3 x 15.0 x 2.2" (64.3 x 38.1 x 5.6 cm)
    Weight With Stand: 18.8 lb (8.5 kg)
    Without Stand: 12.2 lb (5.5 kg)
    Packaging Info
    Package Weight 27.35 lb
    Box Dimensions (LxWxH) 28.9 x 22.5 x 10.0"
    The user manual for the ViewSonic VP2772 27" Adobe Color Widescreen LED VP2772 can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ViewSonic users keep a unique electronic library for ViewSonic computer monitorss, where you can use our link to download the user manual for the ViewSonic VP2772 27" Adobe Color Widescreen LED VP2772.

    The user manual lists all of the functions of the ViewSonic VP2772 27" Adobe Color Widescreen LED VP2772, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ViewSonic service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ViewSonic VP2772 27" Adobe Color Widescreen LED VP2772. User manuals are also available on the ViewSonic website under Computers & Solutions - Monitors & Displays - Computer Monitors.
