User manual ViewSonic VX2257-MHD 22" Widescreen LED Backlit VX2257-MHD

Operating instructions and pdf manual for use - ViewSonic VX2257-MHD 22" Widescreen LED Backlit VX2257-MHD User manual, User manual ViewSonic VX2257-MHD 22" Widescreen LED Backlit VX2257-MHD, ViewSonic, VX2257-MHD, 22, Widescreen, LED, Backlit, VX2


User manual for ViewSonic VX2257-MHD 22" Widescreen LED Backlit VX2257-MHD

ViewSonic VX2257-MHD 22
  • Manufacturer: ViewSonic
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your ViewSonic
  • Settings and expert assistance
  • Contact ViewSonic service
  • Troubleshooting
  • Warranty information
  • Price: 140 USD

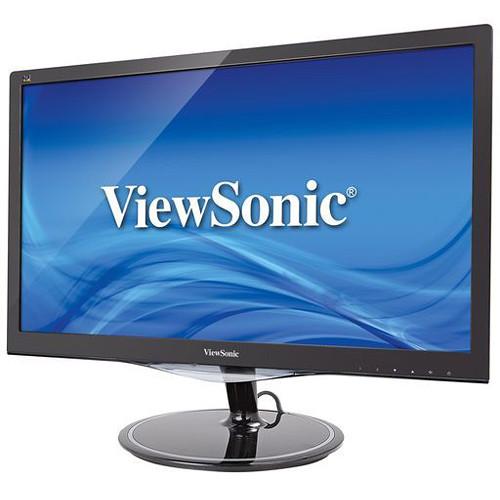

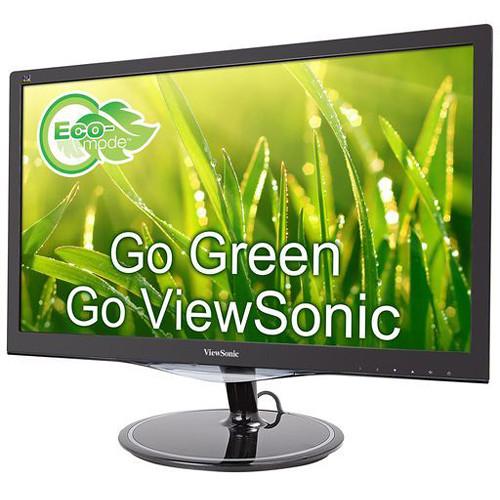

ViewSonic VX2257-MHD 22 ViewSonic VX2257-MHD 22 ViewSonic VX2257-MHD 22
Click to enlarge image

We recommend checking out our discussion threads on the ViewSonic VX2257-MHD 22" Widescreen LED Backlit VX2257-MHD, which address similar problems with connecting and setting up Computer Monitors ViewSonic.



User manual for the ViewSonic VX2257-MHD 22" Widescreen LED Backlit VX2257-MHD

The user manual for the ViewSonic VX2257-MHD 22" Widescreen LED Backlit VX2257-MHD provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

With an ultra-fast response time and AMD FreeSync technology built-in, the VX2257-MHD 22" Widescreen LED Backlit LCD Monitor from ViewSonic is designed for a variety of multimedia applications including gaming. ViewSonic has even included a dedicated Game Mode hotkey making it easy to change the display settings with just the push of a button. When taking a break from gaming, this monitor features a Full HD 1920 x 1080 resolution and an enhanced contrast ratio for clear picture quality. Setup and configuration of the display is simple as it comes equipped with DisplayPort, D-Sub, and HDMI inputs. You can even take advantage of the built-in 2W stereo speakers to round out the multimedia experience. Once configured, this ViewSonic monitor can be tilted into place or mounted on the wall for maximum viewing comfort.
If you own a ViewSonic computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ViewSonic VX2257-MHD 22" Widescreen LED Backlit VX2257-MHD in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ViewSonic VX2257-MHD 22" Widescreen LED Backlit VX2257-MHD:
Specifications
LCD Panel
Size 22" / 55.88 cm (21.5" / 54.61 cm Viewable)
Monitor Type TN Type, a-si TFT Active Matrix LCD
Display Area 18.77 x 10.56" / 476.64 x 268.11 mm
Backlight WLED light bar
Backlight Life 40,000 hours (minimum)
Colors 16.7 million (6-bit+A-FRC)
Contrast Ratio Static: 1,000:1
Dynamic: 80,000,000:1
Viewing Angles (H/V) 170°/160°
Response Time GtG (AVG): 2 ms (typical)
GtGƠ*2: 1.4 ms (typical)
Brightness 250 cd/m²
Panel Surface Anti-Glare type, Hard-coating (3H), Haze 25
Color Gamut 72% of NTSC (typical)
Resolution Full HD 1920 x 1080
Connectors
Audio Audio-In
1 x 3.5 mm plug
Audio-Out
1 x 3.5 mm earphone plug
Analog
1 x DB-15
Digital
1 x HDMI (v1.4 compatible)
1 x DisplayPort (v1.2 compatible)
Input Signal 1 x DisplayPort
1 x HDMI
1 x D-Sub (VGA)

Frequency
D-Sub: Fh = 24 ~ 83 KHz ; Fv = 47 ~ 75 Hz
HDMI: Fh = 24 ~ 84 KHz ; Fv = 47 ~ 75 Hz
DisplayPort: Fh = 24 ~ 84 KHz ; Fv = 47 ~ 75 Hz

Sync
D-Sub: Separate Sync / Composite Sync / Sync on Green
HDMI: TMDS
DisplayPort: PCI-E
Compatibility PC
PC compatibles (VGA up to 1920 x 1080, non-interlaced)
Mac
Power Mac (up to 1920 x 1080)
Speakers 2 x 2 W speakers
Power Specifications
Power 1 x Internal power board, 3-pin plug (CEE22)
100-240 VAC (universal); 50/60 Hz
Power Consumption Typical: 21 W
Optimize: 17 W
Conserve: 14 W
Ergonomics
Tilt -5 to 23°
Other Specifications
Temperature & Humidity Temperature: 32 to 104°F / 0 to 40°C
Humidity: 20 to 90% (no condensation)
VESA 100 x 100 mm
Dimensions With Stand: 20.1 x 15.5 x 9" / 51.1 x 39.4 x 23 cm
Weight With Stand: 8 lb / 3.6 kg
Without Stand: 7.1 lb / 3.2 kg
Packaging Info
Package Weight 10.8 lb
Box Dimensions (LxWxH) 22.0 x 18.0 x 5.0"
The user manual for the ViewSonic VX2257-MHD 22" Widescreen LED Backlit VX2257-MHD can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ViewSonic users keep a unique electronic library for ViewSonic computer monitorss, where you can use our link to download the user manual for the ViewSonic VX2257-MHD 22" Widescreen LED Backlit VX2257-MHD.

The user manual lists all of the functions of the ViewSonic VX2257-MHD 22" Widescreen LED Backlit VX2257-MHD, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ViewSonic service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ViewSonic VX2257-MHD 22" Widescreen LED Backlit VX2257-MHD. User manuals are also available on the ViewSonic website under Computers & Solutions - Monitors & Displays - Computer Monitors.
