User manual for the ViewSonic VX2457-MHD 24" Widescreen LED Backlit VX2457-MHD
The user manual for the ViewSonic VX2457-MHD 24" Widescreen LED Backlit VX2457-MHD provides
necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

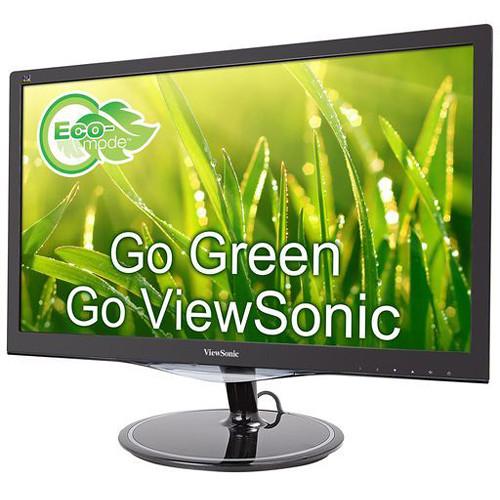

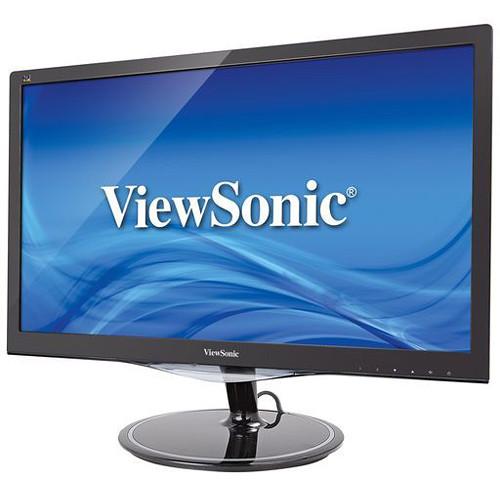

With an ultra-fast response time and AMD FreeSync technology built-in, the VX2457-MHD 24" Widescreen LED Backlit LCD Monitor from ViewSonic is designed for a variety of multimedia applications including gaming. ViewSonic has even included a dedicated Game Mode hotkey making it easy to change the display settings with just the push of a button. When taking a break from gaming, this monitor features a Full HD 1920 x 1080 resolution and an enhanced contrast ratio for clear picture quality. Setup and configuration of the display is simple as it comes equipped with DisplayPort, D-Sub, and HDMI inputs. You can even take advantage of the built-in 2W stereo speakers to round out the multimedia experience. Once configured, this ViewSonic monitor can be tilted into place or mounted on the wall for maximum viewing comfort.
|
If you own a ViewSonic computer monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the ViewSonic VX2457-MHD 24" Widescreen LED Backlit VX2457-MHD in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the ViewSonic VX2457-MHD 24" Widescreen LED Backlit VX2457-MHD:
| Size | 24" / 60.96 cm (23.6" / 59.94 cm Viewable) | | Monitor Type | TN Type, a-si TFT Active Matrix LCD | | Display Area | 20.52 x 11.54" / 521.28 x 293.22 mm | | Backlight | WLED light bar | | Backlight Life | 40,000 hours (minimum) | | Colors | 16.7 million (6-bit+A-FRC) | | Contrast Ratio | Static: 1,000:1
Minimum: 700:1
Dynamic: 80,000,000:1 | | Viewing Angles (H/V) | 170°/160° | | Response Time | GtG (AVG): 1.5 ms (typical)
GtGƠ*2: 1.4 ms (typical) | | Brightness | 300 cd/m² | | Panel Surface | Anti-Glare type, Hard-coating (3H), Haze 25 | | Color Gamut | 72% of NTSC (typical) | | Resolution | Full HD 1920 x 1080 | | Audio | Audio-In
1 x 3.5 mm plug
Audio-Out
1 x 3.5 mm earphone plug
Analog
1 x DB-15
Digital
1 x HDMI (v1.4 compatible)
1 x DisplayPort (v1.2 compatible) | | Input Signal | 1 x DisplayPort
1 x HDMI
1 x D-Sub (VGA)
Frequency
D-Sub: Fh = 24 ~ 83 KHz ; Fv = 47 ~ 75 Hz
HDMI: Fh = 15 ~ 83 KHz ; Fv = 47 ~ 75 Hz
DisplayPort: Fh = 15 ~ 83 KHz ; Fv = 47 ~ 75 Hz
Sync
D-Sub: Separate Sync / Composite Sync / Sync on Green
HDMI: TMDS
DisplayPort: PCI-E | | Compatibility | PC
PC compatibles (VGA up to 1920 x 1080, non-interlaced)
Mac
Power Mac (up to 1920 x 1080) | | Speakers | 2 x 2 W speakers | | Power | 1 x Internal power board, 3-pin plug (CEE22)
100-240 VAC (universal); 50/60 Hz | | Power Consumption | Typical: 24 W
Optimize: 18 W
Conserve: 14 W | | Tilt | -5° (±1.5°) to 21° (± 1.5°) | | Temperature & Humidity | Temperature: 32 to 104°F / 0 to 40°C
Humidity: 20 to 90% (no condensation) | | VESA | 100 x 100 mm | | Dimensions | With Stand: 22 x 16.63 x 9.04" / 558.7 x 422.4 x 229.65 mm
Without Stand: 22 x 13.88 x 1.79" / 558.7 x 352.6 x 45.5 mm | | Weight | With Stand: 9 lb / 4.1 kg
Without Stand: 8 lb / 3.6 kg | | Package Weight | 12.2 lb | | Box Dimensions (LxWxH) | 24.0 x 19.0 x 5.0" | |
The user manual for the ViewSonic VX2457-MHD 24" Widescreen LED Backlit VX2457-MHD can be downloaded in .pdf
format if it did not come with your new computer monitors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other ViewSonic users keep a unique electronic library
for ViewSonic computer monitorss,
where you can use our link to download the user manual for the ViewSonic VX2457-MHD 24" Widescreen LED Backlit VX2457-MHD.
The user manual lists all of the functions of the ViewSonic VX2457-MHD 24" Widescreen LED Backlit VX2457-MHD,
all the basic and advanced features and tells you how to use the computer monitors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from ViewSonic service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the ViewSonic VX2457-MHD 24" Widescreen LED Backlit VX2457-MHD. User manuals are also
available on the ViewSonic website under Computers & Solutions - Monitors & Displays - Computer Monitors.
