User manual ViewZ SM Series VZ-35SM 3.5" Sunlight Readable LCD VZ-35SM

Operating instructions and pdf manual for use - ViewZ SM Series VZ-35SM 3.5" Sunlight Readable LCD VZ-35SM User manual, User manual ViewZ SM Series VZ-35SM 3.5" Sunlight Readable LCD VZ-35SM, ViewZ, SM, Series, VZ-35SM, 3.5, Sunlight, Readable, LCD


User manual for ViewZ SM Series VZ-35SM 3.5" Sunlight Readable LCD VZ-35SM

ViewZ SM Series VZ-35SM 3.5
  • Manufacturer: ViewZ
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Tools & Test Equipment - Test Monitors
  • Safety instructions
  • Startup and operation of the test monitors
  • Tips for setting up your ViewZ
  • Settings and expert assistance
  • Contact ViewZ service
  • Troubleshooting
  • Warranty information
  • Price: 180 USD
We recommend checking out our discussion threads on the ViewZ SM Series VZ-35SM 3.5" Sunlight Readable LCD VZ-35SM, which address similar problems with connecting and setting up Test Monitors ViewZ.



User manual for the ViewZ SM Series VZ-35SM 3.5" Sunlight Readable LCD VZ-35SM

The user manual for the ViewZ SM Series VZ-35SM 3.5" Sunlight Readable LCD VZ-35SM provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Tools & Test Equipment - Test Monitors.

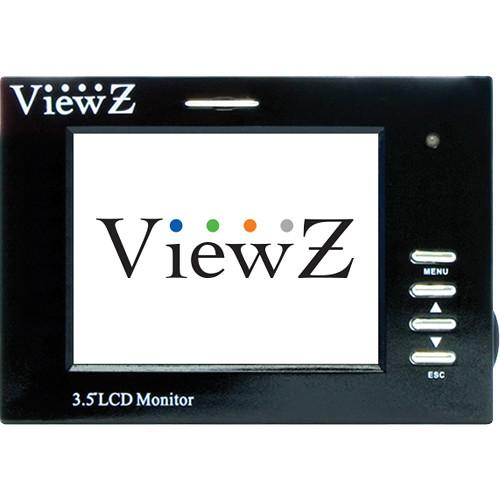

Strap the black SM Series VZ-35SM 3.5” Sunlight Readable LCD Test Monitor from ViewZ on your wrist to fine-tune analog cameras. It is designed for quick focusing and adjustment of security cameras prior to and during installation. This sunlight readable monitor can be used both indoors and outdoors. The 4:3 aspect ratio LCD display delivers sharp and vivid picture quality with 320 x 240 pixel resolution. The rechargeable battery-operated 3.5" test monitor is built with a commercial grade "A" panel, which offers optimum color reproduction and low defect ratio.
If you own a ViewZ test monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ViewZ SM Series VZ-35SM 3.5" Sunlight Readable LCD VZ-35SM in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ViewZ SM Series VZ-35SM 3.5" Sunlight Readable LCD VZ-35SM:
Screen Size 3.5" (8.9 cm)
Maximum Resolution 320 x 240
Pixel Pitch 0.248 x 0.248 mm
Brightness 250 cd/m² (typical)
Contrast Ratio 350:1
Aspect Ratio 4:3
Viewing Angle (H/V) 100°/120°
Display Color 16.7 million
Response Time <25 ms
Video System NTSC / PAL
Interface AV (Composite) In / Out: 1 / 1, BNC
Audio 1 x 1 W built-in speaker
Multi-lingual Language English/Italian/Chinese
Power Saving Low power consumption
Ni-MH battery
Power 12 VDC, 1.5 A (100 to 240 VAC, 50/60 Hz)
Power Consumption 4.05 W
MTBF Approximately 30,000 hours
Operating Temperature 32 to 104°F (0 to 60°C)
Dimensions (W x H x D) 4.65 x 3.29 x 1.16" (118.1 x 83.57 x 29.46 mm)
Weight 0.55 lb (0.25 kg)
Packaging Info
Package Weight 2.0 lb
Box Dimensions (LxWxH) 11.0 x 6.0 x 4.0"
The user manual for the ViewZ SM Series VZ-35SM 3.5" Sunlight Readable LCD VZ-35SM can be downloaded in .pdf format if it did not come with your new test monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ViewZ users keep a unique electronic library for ViewZ test monitorss, where you can use our link to download the user manual for the ViewZ SM Series VZ-35SM 3.5" Sunlight Readable LCD VZ-35SM.

The user manual lists all of the functions of the ViewZ SM Series VZ-35SM 3.5" Sunlight Readable LCD VZ-35SM, all the basic and advanced features and tells you how to use the test monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ViewZ service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ViewZ SM Series VZ-35SM 3.5" Sunlight Readable LCD VZ-35SM. User manuals are also available on the ViewZ website under Surveillance - Surveillance Video - Tools & Test Equipment - Test Monitors.
