User manual Vinten Vector 430 Pan and Tilt Head V4006-0001
Operating instructions and pdf manual for use - Vinten Vector 430 Pan and Tilt Head V4006-0001 User manual, User manual Vinten Vector 430 Pan and Tilt Head V4006-0001, Vinten, Vector, 430, Pan, Tilt, Head, V4006-0001, Video
User manual for Vinten Vector 430 Pan and Tilt Head V4006-0001
Manufacturer: Vinten
Basic description and contents of package
Product classification: Professional Video - Tripods, Supports & Rigs - Tripod Heads & Accessories - Video Tripod Heads
Safety instructions
Startup and operation of the video tripod heads
Tips for setting up your Vinten
Settings and expert assistance
Contact Vinten service
Troubleshooting
Warranty information
We recommend checking out our discussion threads on the Vinten Vector 430 Pan and Tilt Head V4006-0001,
which address similar problems with connecting and setting up Video Tripod Heads Vinten.
User manual for the Vinten Vector 430 Pan and Tilt Head V4006-0001
The user manual for the Vinten Vector 430 Pan and Tilt Head V4006-0001 provides
necessary instructions for the proper use of the product Professional Video - Tripods, Supports & Rigs - Tripod Heads & Accessories - Video Tripod Heads.

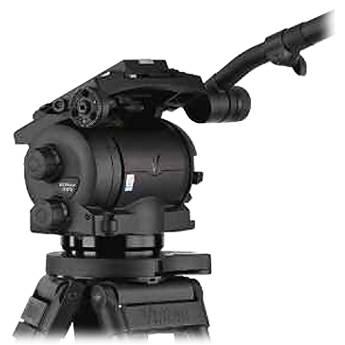

The Vinten Vector 430 Pan and Tilt Head, with a load bearing capacity of 22-94.8 lb (10-43 kg), is perfect for applications where compact box and large EFP barrel lenses are used. Equipped with a counter balance adjuster, backlit drag knobs, and an illuminated LCD display, the pan and tilt head can be used easily in any situation.
Along with a tilt range of ±40° (for 94.8 lb / 43 kg) and ±90° (for 81.6 lb / 37 kg), the Vector 430 Pan and Tilt Head employs TF drag technology that adjusts drag levels and whip pan movement without any manual reduction of the drag. The integral quickfix groove at the base of the Vector 430 Pan and Tilt Head provides fast and secure attachment and the Quickfit wedge adaptor makes it suitable for multi-camera productions.
If you own a Vinten video tripod heads and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Vinten Vector 430 Pan and Tilt Head V4006-0001 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Vinten Vector 430 Pan and Tilt Head V4006-0001:
Specifications
Height
7.9" (20 cm)
Length
7.9" (20 cm)
Width
11.2" (28.5 cm)
Weight
26.7 lb / 12.1 kg (including wedge adaptor and pan bar)
Capacity
22 to 94.8 lb (10 to 43 kg)
Tilt Range
±90° (for 81.6 lb / 37 kg) ±40° (for 94.8 lb / 43 kg)
Platform Adjustment
+2.2 to -4.9" (+5.5 to -12.5 cm)
Pan Bar
Single telescopic
Camera Fixing
EFP Quickfit Automatic Adaptor [3761-3]
Levelling Bubble
Illuminated
Drag Knobs
Backlit and calibrated
Counterbalance
Fully variable with digital readout
Base Fixing
4 bolt flat with Quickfix groove
Color
Black
The user manual for the Vinten Vector 430 Pan and Tilt Head V4006-0001 can be downloaded in .pdf
format if it did not come with your new video tripod heads, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Vinten users keep a unique electronic library
for Vinten video tripod headss,
where you can use our link to download the user manual for the Vinten Vector 430 Pan and Tilt Head V4006-0001.
The user manual lists all of the functions of the Vinten Vector 430 Pan and Tilt Head V4006-0001,
all the basic and advanced features and tells you how to use the video tripod heads.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Vinten service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Vinten Vector 430 Pan and Tilt Head V4006-0001. User manuals are also
available on the Vinten website under Professional Video - Tripods, Supports & Rigs - Tripod Heads & Accessories - Video Tripod Heads.
