User manual for the VITEC Focus FS-T2001 Portable Field Deck FST2001/VITEC

The user manual for the VITEC Focus FS-T2001 Portable Field Deck FST2001/VITEC provides necessary instructions for the proper use of the product Professional Video - Recorders & Duplication - Solid State/HDD Recorders.

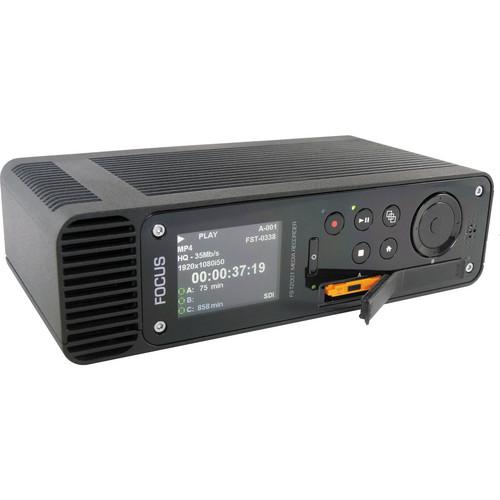

The Vitec Multimedia Focus FS-T2001 Portable Field Deck is an SDI recorder featuring Sony's full range of professional recording formats and two SxS card slots for native compatibility with Sony's workflow and media. A 250GB HDD is additionally integrated for direct storage. The recorder is designed for both ENG and EFP applications and can export out to both Macs and PCs.

The design and GUI are simple and intuitive: standard-type transport controls and a thumbnail clip menu for playback selection. You can play clips on the integrated 2.4" LCD or export them to an external monitor. You can also monitor live on the LCD. Transferring clips is simple too -- either copy them between SxS cards or onto the HDD, transfer them to a computer via an included USB cable, or share them over an FTP/CIFS network.

The top resolution supported is 1080i60/50. The SDI input features 4 channels of embedded audio and embedded timecode. The rest of the connections consist of SDI, HDMI, Composite BNC, and RCA audio outputs, two USB ports that can be used in host or device mode, and a 1Gbps RJ45 port for network connection.
If you own a VITEC solid state/hdd recorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the VITEC Focus FS-T2001 Portable Field Deck FST2001/VITEC in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for VITEC Focus FS-T2001 Portable Field Deck FST2001/VITECDownload user manual for VITEC Focus FS-T2001 Portable Field Deck FST2001/VITEC
(PDF file, 2.03 MB)
Additional parameters of the VITEC Focus FS-T2001 Portable Field Deck FST2001/VITEC:
Specifications
    Display 2.4" (6 cm) color LCD display with 240 x 320 resolution
    Input 1x HD/SD-SDI (4 channels of embedded audio)
    Output 1x HD/SD-SDI (embedded audio)
    1x HDMI (embedded audio)
    1x Composite on BNC
    1x RCA L/R unbalanced analog audio
    1x 3.5 mm analog headphone jack
    Resolutions Supported 1080:
    59.94i/50i/29.97P/25P/23.98P/29.97PsF/25PsF/23.98PsF
    720: 59.94p/50p
    480i59.94/576i50
    Frame Rates HD422 mode:
    MPEG-2 (422P HL), CBR (50 Mbps)
    1920 x 1080 59.94i/50i/29.97p/25p/23.98p
    1280 x 720 59.94p/50p/29.97p/25p/23.98p

    HQ mode: MPEG-2 (MP H-14), VBR (35 Mbps max.)
    1920 x 1080 59.94i/50i/29.97p/25p/23.98p
    1440 x 1080 59.94i/50i/29.97p/25p/23.98p
    1280 x 720 59.94p/50p/29.97p/25p/23.98p

    SP mode: MPEG-2 (MP H-14), CBR (25 Mbps)
    1440 x 1080 59.94i/50i
    Audio Compression 2 or 4 channel (48 kHz, 16-bit) linear PCM
    Note: 4 channel audio is supported in HQ and HD422 mode
    Timecode HD-SDI embedded timecode (RP-188) In/Out
    Media Dual SxS slots / 250 GB internal hard drive
    Media Format FAT32 or UDF
    Media Support SxS Pro, SxS Pro+, SxS-1, MEAD and e-film adaptors for SDHC card
    Downscaling Yes (playback)
    Card Copy / Cloning Yes from card to card / internal HDD
    USB 2x USB 2.0 (host or device mode)
    Ethernet 1 Gbps for CIFS/SMB and FTP access
    OS Compatibility Windows XP, Vista, Windows 7; Mac OS X
    Power Adapter 4-pin XLR
    Power Requirement DC 11 - 18; power consumption: 20 W
    Battery Sony BP-U battery
    Compliance CE, C-Tick, FCC Class A, and VCCi
    Dimensions 8.7 x 4.6 x 2.4" (22 x 11.6 x 6 cm)
    Weight 3.3 lb (1.5 kg)
    Packaging Info
    Package Weight 6.4 lb
    Box Dimensions (LxWxH) 7.9 x 6.3 x 4.3"
