User manual for Vivitek D554 3D DLP Digital Projector D554
Overall Rating: 5.0
100% of respondents would recommend this to a friend.
- Manufacturer: Vivitek
- Basic description and contents of package
- Product classification: A/V Presentation - Projectors - Multimedia Projectors
- Safety instructions
- Startup and operation of the multimedia projectors
- Tips for setting up your Vivitek
- Settings and expert assistance
- Contact Vivitek service
- Troubleshooting
- Warranty information
- Price: 399 USD
|
We recommend checking out our discussion threads on the Vivitek D554 3D DLP Digital Projector D554,
which address similar problems with connecting and setting up Multimedia Projectors Vivitek.
|
User manual for the Vivitek D554 3D DLP Digital Projector D554
The user manual for the Vivitek D554 3D DLP Digital Projector D554 provides
necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

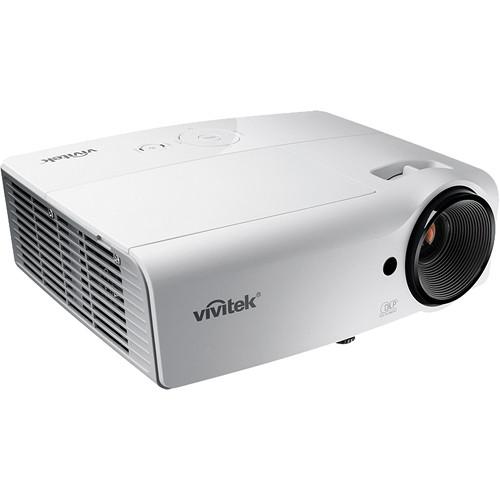

The D554 3D DLP Digital Projector from Vivitek is a high-performance DLP projector designed for uses ranging from a permanent ceiling mount to simple desk placement. With 3000 ANSI lumens of brightness, no matter the environment, the projector delivers crisp performance. The D554 includes a Kensington security lock, which is built into the projector to prevent theft or any unauthorized removal of the projector. It provides a slew of connectivity options include HDMI x 1, dual VGA, composite video, and S-video. It also includes a 31dB/28dB (standard/economy mode) low fan noise.
|
If you own a Vivitek multimedia projectors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Vivitek D554 3D DLP Digital Projector D554 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Vivitek D554 3D DLP Digital Projector D554:
| Display System | 1-Chip 0.55" / 13.97 mm DLP | | Native Resolution | SVGA - 800 x 600 | | Supported Resolutions | UXGA - 1600 x 1200
WXGA - 1280 x 768
SXGA+ - 1400 x 1050
SVGA - 800 x 600
VGA - 640 x 480 | | Format | NTSC 4.43
SECAM
PAL B, G, H, I, M, N | | HDTV Compatibility | 480i
480p
576i
720p
1080i
1080p | | Pixels | 786,432 | | Brightness | 3000 Lumens | | Uniformity | 95% | | Offset | 0% ± 128% | | Aspect Ratio | Native: 4:3
Supported: 16:9 | | Contrast Ratio | 15000:1 | | DLP Link 3D | Yes | | Color Range | 1.07 Billion | | Scan | Horizontal: 15 - 91.4 kHz
Vertical: 24 - 120 Hz | | Focus | Manual | | Lens | F 2.52 - 2.73 (f = 24.34 - 25.95 mm) | | Zoom | 1.1x | | Throw Distance | 2.95 - 36.5' (0.9 - 11.1 m) | | Throw Ratio | 1.92 - 2.14:1 | | Projection Size | 23 - 256" / 584.20 - 6502.40 mm | | Keystone Correction | Yes, Vertical: ± 40° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-in Speaker | Yes, 2 W (Mono) | | Inputs/Outputs | 1x HDMI Audio/Video (Input)
2x 15-pin VGA Video (Input)
1x 15-pin VGA Video (Output)
1x RCA Composite Video (Input)
1x S-Video Video (Input)
1x 1/8" (3.5 mm) Mini Audio (Input)
1x 1/8" (3.5 mm) Mini Audio (Output)
1x RS-232C Control
1x Mini-USB Service | | Watts | Normal Mode: 190 W | | Life | Normal Mode: 5000 Hours
Eco Mode: 6000 Hours | | Fan Noise | Normal Mode: 31 dB
Eco Mode: 28 dB | | Remote Control | Yes | | Security | Cable Lock Slot | | Languages | English | | Power Requirements | 100-240 VAC, 50/60 Hz | | Power Consumption | Normal Mode: 240 W
Eco Mode: 200 W
Standby Mode: <.5 W | | Temperature | Operating
41 to 95°F (5 to 35°C) | | Dimensions (WxHxD) | 10.8 x 3.7 x 8.4" / 274.3 x 94.0 x 213.4 mm | | Weight | 5.1 lb / 2.31 kg | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 12.5 x 12.4 x 5.9" | |
The user manual for the Vivitek D554 3D DLP Digital Projector D554 can be downloaded in .pdf
format if it did not come with your new multimedia projectors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Vivitek users keep a unique electronic library
for Vivitek multimedia projectorss,
where you can use our link to download the user manual for the Vivitek D554 3D DLP Digital Projector D554.
The user manual lists all of the functions of the Vivitek D554 3D DLP Digital Projector D554,
all the basic and advanced features and tells you how to use the multimedia projectors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Vivitek service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Vivitek D554 3D DLP Digital Projector D554. User manuals are also
available on the Vivitek website under A/V Presentation - Projectors - Multimedia Projectors.
