User manual Vivitek D557W WXGA 3D Ready DLP Projector D557W

Operating instructions and pdf manual for use - Vivitek D557W WXGA 3D Ready DLP Projector D557W User manual, User manual Vivitek D557W WXGA 3D Ready DLP Projector D557W, Vivitek, D557W, WXGA, 3D, Ready, DLP, Projector, D557W, Video


User manual for Vivitek D557W WXGA 3D Ready DLP Projector D557W

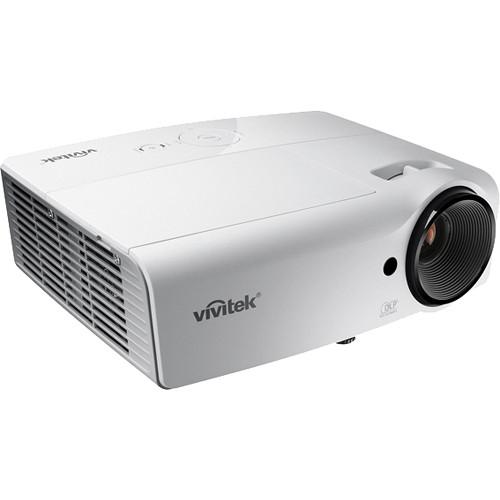

Vivitek  D557W WXGA 3D Ready DLP Projector D557W
  • Manufacturer: Vivitek
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your Vivitek
  • Settings and expert assistance
  • Contact Vivitek service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Vivitek D557W WXGA 3D Ready DLP Projector D557W, which address similar problems with connecting and setting up Multimedia Projectors Vivitek.



User manual for the Vivitek D557W WXGA 3D Ready DLP Projector D557W

The user manual for the Vivitek D557W WXGA 3D Ready DLP Projector D557W provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

The portable Vivitek D557W WXGA 3D Ready DLP Projector features a WXGA 1280 x 800 native resolution, 3000 ANSI lumens of brightness and a 15,000:1 contrast ratio that accommodates almost any lighting condition in the office or classroom. Thanks to DLP technology with BrilliantColor processing, the D557W produces impressive color reproduction and it also supports Direct 3D viewing via HDMI for a more immersive classroom or conference room experience. Plus, a Dynamic Eco Mode lowers power consumption costs, while also extending the lamp life up to 10,000 hours. It also features a filter-free design, which eliminates filter maintenance and supports a lower overall cost of ownership.
If you own a Vivitek multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Vivitek D557W WXGA 3D Ready DLP Projector D557W in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Vivitek  D557W WXGA 3D Ready DLP Projector D557WDownload user manual for Vivitek D557W WXGA 3D Ready DLP Projector D557W
(PDF file, 3.26 MB)
Additional parameters of the Vivitek D557W WXGA 3D Ready DLP Projector D557W:
Specifications
    Image Display
    Display System DLP
    Native Resolution WXGA - 1280 x 800
    Format NTSC 3.58, 4.43, M
    PAL B, D, G, H, I, M, N
    SECAM B, D, G, K, K1, L
    HDTV Compatibility 1080p
    1080i
    720p
    576p
    576i
    480p
    480i
    Pixels 1,024,000
    Brightness 3000 Lumens
    Offset 128% ± 10%
    Aspect Ratio Native: 16:10
    Contrast Ratio 15000:1
    DLP Link 3D Yes
    Color Range R, G, B, W, Y
    Scan Horizontal: 30 - 91.4 kHz or 15 kHz
    Horizontal: 101.6 - 101.6 kHz
    Vertical: 24 - 30 Hz
    Vertical: 47 - 120 Hz
    Lens
    Focus Not Specified By Manufacturer
    Lens F 2.52 - 2.73 (f = 21.8 - 24 mm)
    Zoom 1.1x
    Throw Distance 3.28 - 32.8' (1.0 - 10.0 m)
    Throw Ratio 1.54 - 1.76:1
    Projection Size 27 - 300" / 68.58 - 762.00 cm
    Features
    Keystone Correction Vertical: ± 40°
    Ceiling Mountable Yes
    Rear Screen Projection Yes
    Built-in Speaker 2 W (Mono)
    Input/Output Connectors
    Inputs/Outputs 1x HDMI Audio/Video (Input)
    2x 15-pin VGA Video (Input)
    1x RCA Composite Video (Input)
    1x S-Video Video (Input)
    1x 1/8" (3.5 mm) Mini Audio (Input)
    1x 1/8" (3.5 mm) Mini Audio (Output)
    1x 15-pin VGA Video (Output)
    1x RS-232C Control
    1x Mini-USB Service
    Wireless LAN None
    General
    Lamp (Bulb) 1x UHP
    Watts 190 W
    Life Normal Mode: 5000 Hours
    Eco Mode: 6000 Hours
    Dynamic Mode: 10000 Hours
    Fan Noise Normal Mode: 35 dB
    Eco Mode: 32 dB
    Remote Control Yes
    Security Cable Lock Slot
    Padlock
    Power Requirements 100-240 VAC, 50/60 Hz
    Power Consumption Normal Mode: 240 W
    Eco Mode: 200 W
    Standby Mode: <.5 W
    Dimensions (WxHxD) 10.8 x 3.9 x 8.3" / 275.0 x 100.0 x 212.0 mm
    Weight 5.07 lb / 2.3 kg
    Packaging Info
    Package Weight 6.8 lb
    Box Dimensions (LxWxH) 12.5 x 12.25 x 6.0"
    The user manual for the Vivitek D557W WXGA 3D Ready DLP Projector D557W can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Vivitek users keep a unique electronic library for Vivitek multimedia projectorss, where you can use our link to download the user manual for the Vivitek D557W WXGA 3D Ready DLP Projector D557W.

    The user manual lists all of the functions of the Vivitek D557W WXGA 3D Ready DLP Projector D557W, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Vivitek service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Vivitek D557W WXGA 3D Ready DLP Projector D557W. User manuals are also available on the Vivitek website under A/V Presentation - Projectors - Multimedia Projectors.
