User manual for the Vivotek FD8154V 1.3MP Day & Night Fixed Dome Network FD8154V

The user manual for the Vivotek FD8154V 1.3MP Day & Night Fixed Dome Network FD8154V provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

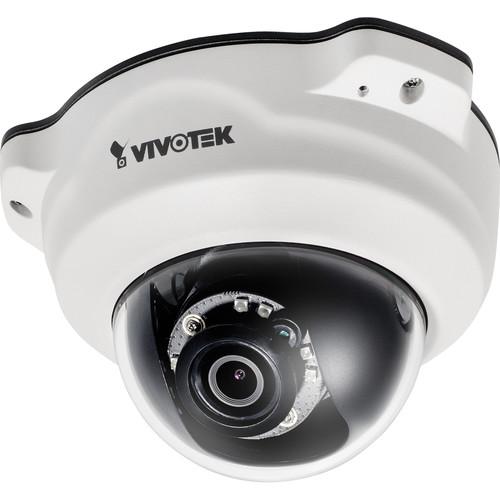

The FD8154V 1.3MP Weather/Vandal Proof IR Fixed Dome Network Camera with 2.8mm Fixed Lens from Vivotek delivers 1280 x 1024 images at 30 fps in H.264 compression. It supports multiple H.264 and MJPEG streams with different settings for recording and live viewing.

Equipped with SNV (Supreme Night Visibility) technology, the camera offers increased sensitivity to low light and provides clear images in dark conditions. In addition, built-in IR LEDs enable the camera to provide enough illumination for clear viewing up to 66', even in completely dark environments. The camera allows for simple installation with its compact housing, standard PoE power input design, as well as an SD card slot for local storage. The camera is enclosed in an IP66 rated weather-proof and IK10 rated vandal-proof housing for increased protection.
If you own a Vivotek wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Vivotek FD8154V 1.3MP Day & Night Fixed Dome Network FD8154V in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Vivotek FD8154V 1.3MP Day & Night Fixed Dome Network FD8154V:
Specifications
System Information
CPU Multimedia SoC (System-on-Chip)
Flash 128 MB
RAM 128 MB
Camera Features
Image Sensor 1/3" Progressive CMOS
Maximum Resolution 1280 x 1024
Lens Type Fixed focal
Focal Length 2.8 mm
Aperture f/2.0
Field of View Horizontal: 101°
Vertical: 80°: Diagonal: 130°
Shutter Time 1/5 sec to 1/32,000 sec
Day/Night Removable IR-cut filter for day & night function
Minimum Illumination 0.08 lux @ F1.6, 30 IRE (color)
0.06 lux @ F1.6, 30 IRE (B&W)br> 0 lux @ IR LED ON
Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
IR Illuminators Built-in IR illuminators, effective up to 66' (20m)
On-board Storage microSD/SDHC/SDXC card slot
Video
Compression H.264 & MJPEG
Maximum Frame Rate 30 fps @ 1280 x 1024 in both compression
Maximum Streams 3 simultaneous streams
S/N Ratio Above 56 dB
Video Streaming Adjustable resolution, quality and bitrate configurable video cropping for bandwidth saving
Image Settings Adjustable image size, quality and bit rate, time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D noise reduction
Audio
Audio Capability Audio input
Compression G.711
Interface Built-in microphone
Effective Range 16.4' (5.0 m)
Network
Users Live viewing for up to 10 clients
Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP
Interface 10Base-T/100 BaseTX Ethernet (RJ-45)
ONVIF Supported
Intelligent Video
Video Motion Detection Triple-window video motion detection
Alarm and Event
Alarm Triggers Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection
Alarm Events Event notification using digital output, HTTP, SMTP, FTP, and NAS server
File upload via HTTP, SMTP, FTP and NAS server
System Requirements
Operating System Microsoft Windows 7/Vista/XP/2000
Web Browser Mozilla Firefox 7~10 (streaming only)
Internet Explorer 7.x ,8.x, 9.x, 10.x
Other Players VLC: 1.1.11 or above
QuickTime: 7 or above
General
Connectors RJ-45 for Network/PoE connection
LED Indicator System power and status indicator
Power Input IEEE 802.3af PoE Class 2
Power Consumption 5.1 W maximum
Housing Vandal-proof IK10 rated metal housing
Weatherproof IP66 rated housing
Certifications CE, LVD, FCC Class A, VCCI, C-Tick
Operating Temperature Starting Temperature: 14 to 122°F (-10 to 50°C)
Working Temperature: -4 to 122°F (-20 to 50°C)
Dimensions 6.0 x 3.7" (152.0 x 94.0 mm)
Weight 1.5 lb (0.66 kg)
Packaging Info
Package Weight 2.4 lb
Box Dimensions (LxWxH) 7.5 x 6.8 x 6.0"
