User manual for the WAGAN Elite 700W PRO Pure Sine Wave DC to AC Power Inverter 2602

The user manual for the WAGAN Elite 700W PRO Pure Sine Wave DC to AC Power Inverter 2602 provides necessary instructions for the proper use of the product Optics - Outdoor Gear - Power Inverters.

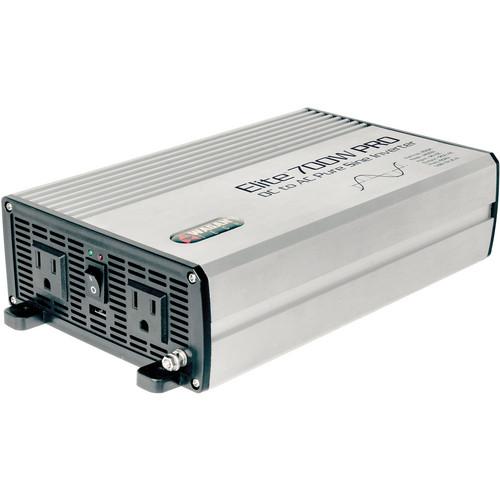

Wagan's Elite 700W PRO Pure Sine Wave DC to AC Power Inverter delivers a sine wave AC identical to that of commercial power. You can use this inverter to power AC appliances in your vehicle or off-grid backup power systems. Pure sine wave AC means that your sensitive electronics, such as audio/video systems, computers, and communications equipment will operate properly. Appliances with motors operate cooler, quieter, and more efficiently when they are powered by sine wave AC.

This inverter is powered from 12 volts DC and it will continuously deliver 700 watts (1,400 watts momentary peak) AC power at 120 volts, 60 Hz. Its superior surge capability of 1,400 watts allows the inverter to start most difficult motorized appliances. Advanced microprocessor-controlled circuits run cooler and the DC terminals have been designed apart from each other to ease installation and minimize the risk of accidental shortage when handling the DC cables.

This power inverter operates at high efficiency (up to 90%), resulting in long run-time and extended battery life. It features a neutral to ground bond, just like utility power. A 2.1A USB power port provides a convenient way to power USB appliances or charge smartphones, tablets and e-readers, and other mobile electronic devices.

This inverter is supplied with a power adapter cord that connects the inverter to a DC power supply with battery terminal clips. It also comes with a separate ground terminal typically found on higher capacity units. This terminal helps to reduce the noise caused by power conversion when using radio frequency devices. The enclosure vents are minimized to reduce the risk of pest intrusion in a variety of climates.
If you own a WAGAN power inverters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the WAGAN Elite 700W PRO Pure Sine Wave DC to AC Power Inverter 2602 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the WAGAN Elite 700W PRO Pure Sine Wave DC to AC Power Inverter 2602:
Waveform Output: pure sine waveform
Input 12 V DC
Output 120 V AC
Power TrueRated: 700 W continuous
Surge Peak: 1,400 W
Efficiency >90%
Frequency 60 Hz
Total Harmonic Distortion (THD) <3%
No Load Current Draw <0.6 A
Battery Battery low alarm: 10.5 V ± 0.5 V DC Battery low shutdown: 9.5 V ± 0.5 V DC
Shutdown Voltage 15.5 V ± 0.5 V DC
Cooling Fan Thermally controlled
AC Output sockets: 2 U.S. standard grounded
USB Power Port 2.1 A, 5 V ± 0.25 V
Power Switch AC output: ON/OFF control
Dimensions Body only: 11.14 x 6.1 x 2.7" (28.3 x 15.5 x 7.0 cm)
Weight 4.5 lb (2 kg)
Packaging Info
Package Weight 5.95 lb
Box Dimensions (LxWxH) 13.2 x 7.8 x 4.8"
The user manual for the WAGAN Elite 700W PRO Pure Sine Wave DC to AC Power Inverter 2602 can be downloaded in .pdf format if it did not come with your new power inverters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other WAGAN users keep a unique electronic library for WAGAN power inverterss, where you can use our link to download the user manual for the WAGAN Elite 700W PRO Pure Sine Wave DC to AC Power Inverter 2602.

The user manual lists all of the functions of the WAGAN Elite 700W PRO Pure Sine Wave DC to AC Power Inverter 2602, all the basic and advanced features and tells you how to use the power inverters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from WAGAN service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the WAGAN Elite 700W PRO Pure Sine Wave DC to AC Power Inverter 2602. User manuals are also available on the WAGAN website under Optics - Outdoor Gear - Power Inverters.
