User manual Watson Universal 8-Bay Charger for AA, AAA, C, D and 9V NM-U8C

Operating instructions and pdf manual for use - Watson Universal 8-Bay Charger for AA, AAA, C, D and 9V NM-U8C User manual, User manual Watson Universal 8-Bay Charger for AA, AAA, C, D and 9V NM-U8C, Watson, Universal, 8-Bay, Charger, AA, AAA, C, D


User manual for Watson Universal 8-Bay Charger for AA, AAA, C, D and 9V NM-U8C

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Watson Universal 8-Bay Charger for AA, AAA, C, D and 9V NM-U8C
  • Manufacturer: Watson
  • Basic description and contents of package
  • Product classification: Photography - Batteries & Power - Universal Batteries & Chargers
  • Safety instructions
  • Startup and operation of the universal batteries & chargers
  • Tips for setting up your Watson
  • Settings and expert assistance
  • Contact Watson service
  • Troubleshooting
  • Warranty information
  • Price: 50 USD
We recommend checking out our discussion threads on the Watson Universal 8-Bay Charger for AA, AAA, C, D and 9V NM-U8C, which address similar problems with connecting and setting up Universal Batteries & Chargers Watson.



User manual for the Watson Universal 8-Bay Charger for AA, AAA, C, D and 9V NM-U8C

The user manual for the Watson Universal 8-Bay Charger for AA, AAA, C, D and 9V NM-U8C provides necessary instructions for the proper use of the product Photography - Batteries & Power - Universal Batteries & Chargers.

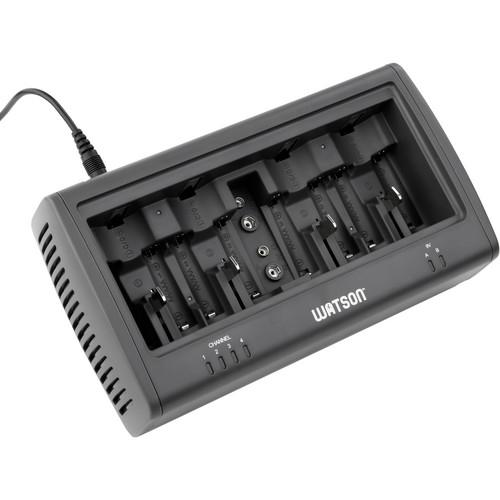

The Universal 8-Bay Charger for AA, AAA, C, D and 9V NiMH and NiCd Batteries from Watson is a versatile unit capable of charging 2, 4, 6 or 8 AA or AAA batteries, or up to 4 C or D cells, in addition to 1-2 9V batteries. Any combination of batteries that will fit can be charged simultaneously, regardless of capacity differences. You can also charge a single additional AA battery placed in the top of one of the C or D slots.

There are 4 separate channels for AA, AAA, C and D cell batteries, and 2 channels for 9V. LED indicators are present to show charging status, flashing green and red to indicate that charging has begun, then switching to solid red and finally to green once charging is complete.

The approximate charging time is as follows: 2.2 hr for 850mAh AAA, 4.2 hr for 2500mAh AA, 3.5 hr for 3500mAh C, 5 hr for 5000mAh D, and 10 hr for 180mAh 9V batteries. A 100-240VAC power adapter is included, enabling use all over the world, and a 12VDC car adapter for on-the-go charging is also supplied. The AC adapter features a convenient fold-out plug for easy storage and travel.
If you own a Watson universal batteries & chargers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Watson Universal 8-Bay Charger for AA, AAA, C, D and 9V NM-U8C in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Watson Universal 8-Bay Charger for AA, AAA, C, D and 9V NM-U8CDownload user manual for Watson Universal 8-Bay Charger for AA, AAA, C, D and 9V NM-U8C
(PDF file, 0.59 MB)
Additional parameters of the Watson Universal 8-Bay Charger for AA, AAA, C, D and 9V NM-U8C:
Specifications
    Configuration 2-8x AA/AAA
    1-4x C/D
    1-2x 9V
    Battery Type NiMH and NiCd
    Input Power 100-240 VAC, 50/60 Hz
    12-16 VDC
    Output Power 1-4 AA/AAA/C/D: 1.5 V, 1.0 A
    2-8 AAA: 3.0 V, 0.5 A
    2-8 AA: 3.0 V, 0.8 A
    1-2 9V: 10.5 V, 15 mA
    Charging Time Approximate times:
    850mAh AAA: 2.2 hr
    2500mAh AA: 4.2 hr
    3500mAh C: 3.5 hr
    5000mAh D: 5.0 hr
    180mAh 9V: 10 hr
    Indicator Lights Green and red LEDs
    Operating Temperature Up to 104°F (40°C)
    Dimensions 9.5 x 5.0 x 2.5" (24.1 x 12.7 x 6.4 cm)
    Weight 0.9 lb (0.4 kg)
    Packaging Info
    Package Weight 1.55 lb
    Box Dimensions (LxWxH) 9.1 x 6.5 x 3.2"
    The user manual for the Watson Universal 8-Bay Charger for AA, AAA, C, D and 9V NM-U8C can be downloaded in .pdf format if it did not come with your new universal batteries & chargers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Watson users keep a unique electronic library for Watson universal batteries & chargerss, where you can use our link to download the user manual for the Watson Universal 8-Bay Charger for AA, AAA, C, D and 9V NM-U8C.

    The user manual lists all of the functions of the Watson Universal 8-Bay Charger for AA, AAA, C, D and 9V NM-U8C, all the basic and advanced features and tells you how to use the universal batteries & chargers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Watson service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Watson Universal 8-Bay Charger for AA, AAA, C, D and 9V NM-U8C. User manuals are also available on the Watson website under Photography - Batteries & Power - Universal Batteries & Chargers.
