User manual WD 250GB AV 2.5" SATA Internal Digital Video OEM WD2500BUCT

Operating instructions and pdf manual for use - WD 250GB AV 2.5" SATA Internal Digital Video OEM WD2500BUCT User manual, User manual WD 250GB AV 2.5" SATA Internal Digital Video OEM WD2500BUCT, WD, 250GB, AV, 2.5, SATA, Internal, Digital, Video, OE


User manual for WD 250GB AV 2.5" SATA Internal Digital Video OEM WD2500BUCT

WD 250GB AV 2.5
  • Manufacturer: WD
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - Internal Drives
  • Safety instructions
  • Startup and operation of the internal drives
  • Tips for setting up your WD
  • Settings and expert assistance
  • Contact WD service
  • Troubleshooting
  • Warranty information
  • Price: 54 USD
We recommend checking out our discussion threads on the WD 250GB AV 2.5" SATA Internal Digital Video OEM WD2500BUCT, which address similar problems with connecting and setting up Internal Drives WD.



User manual for the WD 250GB AV 2.5" SATA Internal Digital Video OEM WD2500BUCT

The user manual for the WD 250GB AV 2.5" SATA Internal Digital Video OEM WD2500BUCT provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Internal Drives.

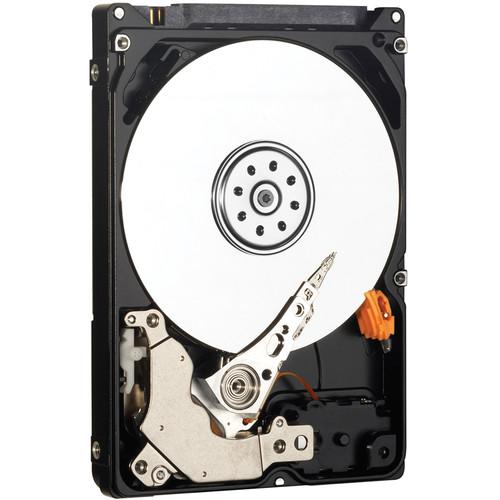

Add 250GB of storage to your DVR, PVR, NVR, IPTV, and digital video surveillance systems with the 250GB AV 2.5" SATA Internal Digital Video OEM Drive from WD. Compatible with Windows and Mac and designed to withstand the stresses placed on it in a 24x7 surveillance system, this drive features a low operating temperature and is optimized with SilkStream technology which lets is capture data from up to 12 simultaneous HD video streams. The drive is also energy efficient and draws less than 2W while operating and 4.75W during spin up.

A 16MB cache helps to ensure uninterrupted data transfers and the drive's 600,000 load/unload cycles helps ensure the drive will have a strong operational life.
If you own a WD internal drives and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the WD 250GB AV 2.5" SATA Internal Digital Video OEM WD2500BUCT in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the WD 250GB AV 2.5" SATA Internal Digital Video OEM WD2500BUCT:
Specifications
    Capacity 250 GB
    Formatted Capacity 251,059 MB
    User Sectors per Drive 490,350,672
    Form Factor 2.5"
    Advanced Format (AF) Yes
    RoHS Compliant Yes
    OS Compatibility Windows and Mac
    Performance
    Data Transfer Rate (max) Buffer to Host: 3 Gb/s
    Host to/from Drive (sustained): 116 MB/s
    Cache 16 MB
    Average Latency 5.50 ms (nominal)
    Load/Unload Cycles 300,000 minimum
    Rotational Speed (rpm) 5400 rpm
    Reliability / Data Integrity
    Load/Unload Cycles 600,000
    Non-Recoverable Read Errors Per Bits Read < 10 in 1014
    Power Management
    Average Power Requirements Read/Write: 1.7 W
    Idle: 0.6 W
    Standby and Sleep: 0.2 W
    Environmental Specifications
    Temperature Operating: 32 to 140°F / 0 to 60°C
    Non-Operating: -40 to 149°F / -40 to 65°C
    Shock Operating (2 ms, read): 350 Gs
    Non-Operating (2 ms): 1000 Gs
    Acoustics Idle: 22 dBA
    Seek (average): 25 dBA
    Physical Dimensions
    Dimensions 0.37 x 3.94 x 2.75" / 9.50 x 100.08 x 69.85 mm
    Weight 0.22 lb / 0.10 kg
    Packaging Info
    Package Weight 0.5 lb
    Box Dimensions (LxWxH) 8.898 x 6.142 x 2.992"
    The user manual for the WD 250GB AV 2.5" SATA Internal Digital Video OEM WD2500BUCT can be downloaded in .pdf format if it did not come with your new internal drives, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other WD users keep a unique electronic library for WD internal drivess, where you can use our link to download the user manual for the WD 250GB AV 2.5" SATA Internal Digital Video OEM WD2500BUCT.

    The user manual lists all of the functions of the WD 250GB AV 2.5" SATA Internal Digital Video OEM WD2500BUCT, all the basic and advanced features and tells you how to use the internal drives. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from WD service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the WD 250GB AV 2.5" SATA Internal Digital Video OEM WD2500BUCT. User manuals are also available on the WD website under Computers & Solutions - Drives & Storage - Internal Drives.
