User manual for the WD 500GB Green 3.5" OEM Internal Hard Drive WD5000AZRX
The user manual for the WD 500GB Green 3.5" OEM Internal Hard Drive WD5000AZRX provides
necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Internal Drives.

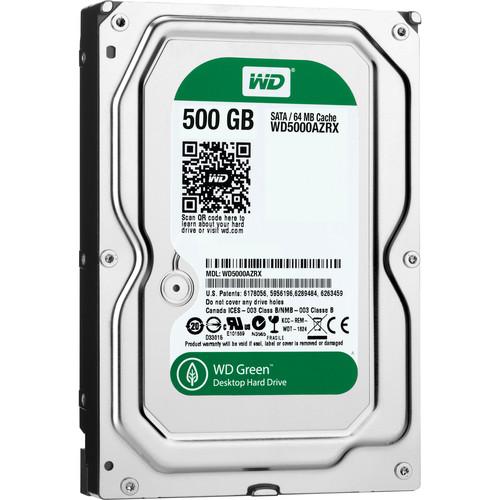

Add 500GB of storage to your desktop, All-in-Once PC, secondary storage device, external drive, or backup device with the 500GB Green 3.5" OEM Internal Hard Drive from WD. Compatible with computers running Windows and Mac OS, this drive connects to your system's 3.5" bay via the SATA 6 Gb/s interface and features a sustained internal data transfer rate of 150 MB/s. So that frequently-used bits of data may be quickly recalled, this drive features a 64MB cache, which also helps ensure uninterrupted data transfers. Data performance is rounded off by a Dual Stage Actuator, which delivers high precision motion for increased data performance and increased drive reliability.
This WD Green drive is built with WD GreenPower Technology, which helps the drive to function with reduced power consumption, lower temperatures, and the IntelliSeek rotational speed. These features allow the drive to operate with less noise and less heat, without the need for increased power consumption or additional fans. It consumes a maximum amount of power at 3.3W, making it an energy efficient drive choice.
|
If you own a WD internal drives and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the WD 500GB Green 3.5" OEM Internal Hard Drive WD5000AZRX in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the WD 500GB Green 3.5" OEM Internal Hard Drive WD5000AZRX:
| Capacity | 500 GB | | Interface | SATA 6 Gb/s | | Form Factor | 3.5" | | Advanced Format (AF) | Yes | | RoHS Compliant | Yes | | Compatibility | Windows and Mac OS | | Data Transfer Rate (max) | Buffer to Host: 6 Gb/s
Host to/from Drive (sustained): 150 MB/s | | Cache | 64 MB | | Rotational Speed | IntelliPower | | Load/Unload Cycles | 300,000 | | Non-Recoverable Read Errors Per Bits Read | < 1 in 1014 | | 12 V DC | 1.2 A ± 10% | | Average Power Requirements | Read/Write: 3.3 W
Idle: 2.5 W
Standby/Sleep: 0.4 W | | Temperature | Operating: 32 to 140°F / 0 to 60°C
Non-Operating: -40 to 158°F / -40 to 70°C | | Shock | Operating (2 ms, read): 30 Gs
Operating (2 ms, read/write): 65 Gs
Non-Operating (1 ms): 350 Gs | | Average Acoustics | Idle: 21 dBA
Seek mode: 22 dBA | | Dimensions | 1.028 x 5.787 x 4.000" / 26.111 x 146.990 x 101.600 mm | | Weight | 0.99 lb / 0.45 kg | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 8.976 x 6.299 x 2.992" | |
The user manual for the WD 500GB Green 3.5" OEM Internal Hard Drive WD5000AZRX can be downloaded in .pdf
format if it did not come with your new internal drives, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other WD users keep a unique electronic library
for WD internal drivess,
where you can use our link to download the user manual for the WD 500GB Green 3.5" OEM Internal Hard Drive WD5000AZRX.
The user manual lists all of the functions of the WD 500GB Green 3.5" OEM Internal Hard Drive WD5000AZRX,
all the basic and advanced features and tells you how to use the internal drives.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from WD service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the WD 500GB Green 3.5" OEM Internal Hard Drive WD5000AZRX. User manuals are also
available on the WD website under Computers & Solutions - Drives & Storage - Internal Drives.
