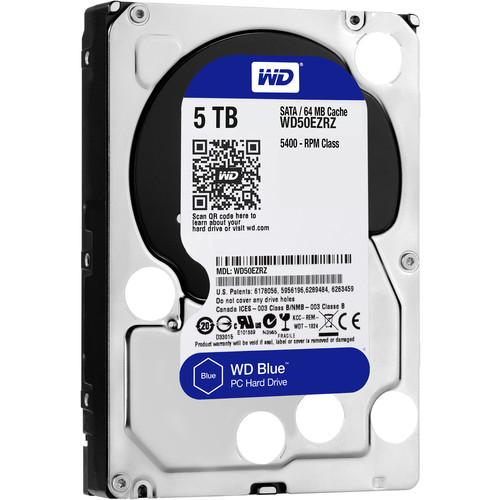

User manual WD 5TB Blue 3.5" Hard Drive WD50EZRZ

Operating instructions and pdf manual for use - WD 5TB Blue 3.5" Hard Drive WD50EZRZ User manual, User manual WD 5TB Blue 3.5" Hard Drive WD50EZRZ, WD, 5TB, Blue, 3.5, Hard, Drive, WD50EZRZ, Video


User manual for WD 5TB Blue 3.5" Hard Drive WD50EZRZ

WD  5TB Blue 3.5
  • Manufacturer: WD
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - Internal Drives
  • Safety instructions
  • Startup and operation of the internal drives
  • Tips for setting up your WD
  • Settings and expert assistance
  • Contact WD service
  • Troubleshooting
  • Warranty information
  • Price: 180 USD
WD  5TB Blue 3.5 WD  5TB Blue 3.5 WD  5TB Blue 3.5 WD  5TB Blue 3.5 WD  5TB Blue 3.5 WD  5TB Blue 3.5 WD  5TB Blue 3.5 WD  5TB Blue 3.5 WD  5TB Blue 3.5
Click to enlarge image

We recommend checking out our discussion threads on the WD 5TB Blue 3.5" Hard Drive WD50EZRZ, which address similar problems with connecting and setting up Internal Drives WD.



User manual for the WD 5TB Blue 3.5" Hard Drive WD50EZRZ

The user manual for the WD 5TB Blue 3.5" Hard Drive WD50EZRZ provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Internal Drives.

Add 5TB of storage to your system to store and quickly access files such as movies, photos, music, documents, and more with the 5TB Blue 3.5" Hard Drive from WD. Designed for use in desktop systems, external enclosures, and consumer RAID 0 and 1 applications, this drive connects to your system's 3.5" drive bay using the SATA 6 Gb/s interface.

This 5TB drive also features a rotational speed of 5,400 rpm, a 64MB cache to help ensure uninterrupted data transfers, and a sustained data transfer rate of up to 170 MB/s. Additionally, the drive is built with features to help ensure it will have a strong operational life, with 300,000 load/unload cycles, <1 in 1014 non-recoverable read errors per bits read, and NoTouch Ramp Load technology. NoTouch Ramp Load technology helps ensure that the recording head never touches the disk media. The result is less wear to the recording head and media, as well as improved drive protection while in transit.

The 5TB Blue 3.5" Hard Drive is lightweight and energy efficient, consuming an average of 5.3W during read/write operations. It provides users with free access to WD Acronis True Image and is protected by a limited 2-year warranty.
If you own a WD internal drives and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the WD 5TB Blue 3.5" Hard Drive WD50EZRZ in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the WD 5TB Blue 3.5" Hard Drive WD50EZRZ:
Specifications
Specifications
Formatted Capacity 5TB
Interface SATA 6 Gb/s
Advanced Format (AF) Yes
Form Factor 3.5"
RoHS Compliant Yes
Performance
Data Transfer Rate (max) Buffer to Host: 6 Gb/s
Host to/from Drive (sustained): 170 MB/s
Cache 64 MB
Rotational Speed 5,400 rpm
Reliability / Data Integrity
Load/Unload Cycles 300,000
Non-Recoverable Read Errors per Bits Read <1 in 1014
Power Management
12 VDC ±10% (Peak) 1.75 A
Average Power Requirements Read/Write: 5.3 W
Idle: 3.4 W
Standby/Sleep: 0.4 W
Environmental Specifications
Temperature Operating: 32 to 140°F / 0 to 60°C
Non-Operating: -40 to 158°F / -40 to 70°C
Shock Operating (2 ms, write): 30 Gs
Operating (2 ms, read): 65 Gs
Non-Operating (2 ms): 250 Gs
Acoustics Idle: 25 dBA
Seek (average): 28 dBA
Dimensions & Weight
Dimensions 1.028 x 5.787 x 4.000" / 2.611 x 14.699 x 10.160 cm (width ± 0.01" / 0.03 cm)
Weight 1.65 lb / 0.75 kg (± 10%)
Packaging Info
Package Weight 1.9 lb
Box Dimensions (LxWxH) 8.9 x 6.2 x 3.0"
The user manual for the WD 5TB Blue 3.5" Hard Drive WD50EZRZ can be downloaded in .pdf format if it did not come with your new internal drives, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other WD users keep a unique electronic library for WD internal drivess, where you can use our link to download the user manual for the WD 5TB Blue 3.5" Hard Drive WD50EZRZ.

The user manual lists all of the functions of the WD 5TB Blue 3.5" Hard Drive WD50EZRZ, all the basic and advanced features and tells you how to use the internal drives. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from WD service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the WD 5TB Blue 3.5" Hard Drive WD50EZRZ. User manuals are also available on the WD website under Computers & Solutions - Drives & Storage - Internal Drives.
