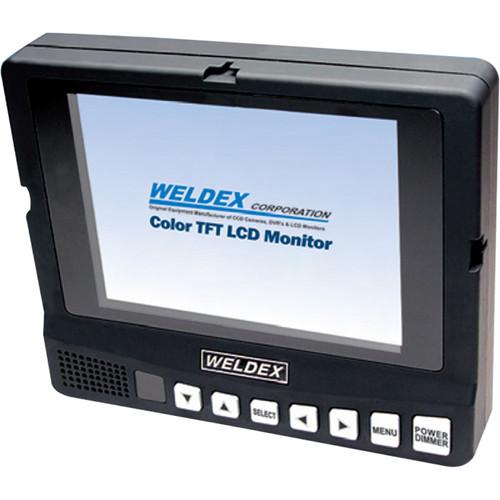

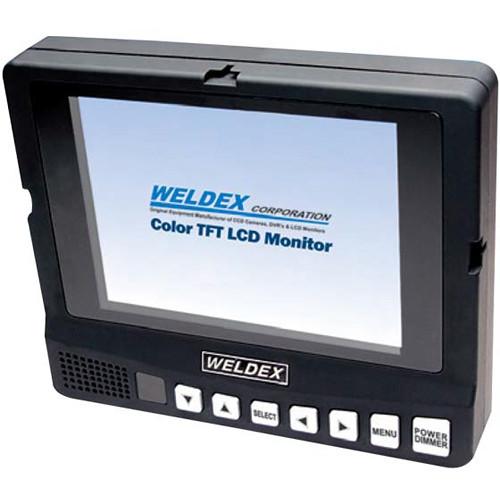

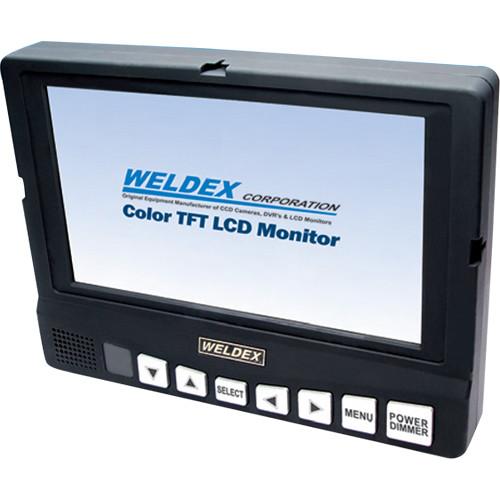

The 7" WDL-7002M 7" Color TFT LCD Monitor with Built-In Speaker from Weldex supports resolution of up to 800 x 480 and features Composite and VGA video inputs. This monitor displays images with contrast ratio of 500:1 and brightness of 400 cd/m2. This monitor offers viewing angles of up to 140° horizontally and 120° vertically. It also has an on-screen menu display for feature and video adjustments. The built-in speaker can be used to monitor audio from incoming video feeds.
If you own a Weldex surveillance monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Weldex WDL-7002M 7" Color TFT LCD Monitor WDL-7002M in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Weldex WDL-7002M 7" Color TFT LCD Monitor WDL-7002M:
Specifications
Display Type
Active matrix color TFT LCD
Diagonal Screen Size
7.0" (17.8 cm)
Contrast Ratio
500:1
Brightness
400 cd/m2
Viewing Angle
Up: 50° Down: 70° Right: 70° Left: 70°
Resolution
800 (W) x 480 (H)
Dot Pitch
0.0642 (W) x 0.1790 (H)
Active Area
154.08 (W) x 85.92 (H)
Video Input
Composite and VGA Input
Power Source
12 to 32 VDC
Temperature
Operating: -4 to 176°F (-20 to 80°C) Storage: -22˚to 186°F (-30 to 80°C)
Signal Type
NTSC
Dimensions (W x D x H)
7.7 x 5.7 x 1.3" (19.5 x 14.5 x 3.3 cm)
Weight
2.8 lb (1.3 kg)
