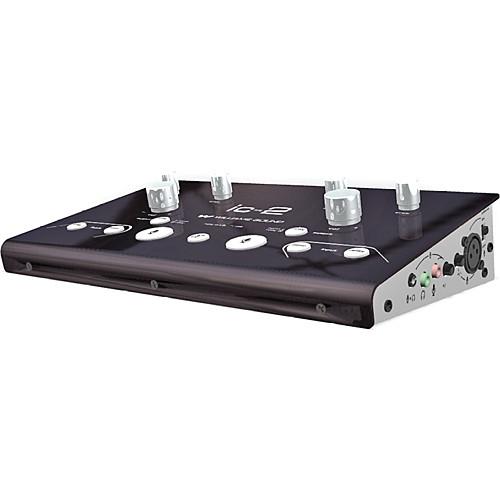

The Williams Sound IC-2 Interpreter Control Console is ideal for use with Williams Sound FM, IR and Digi-Wave transmitters. Well suited for both fixed installation and portable applications, the IC-2 gives interpreters a full control set and flexible routing possibilities.
If you own a Williams Sound audio conferencing and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Williams Sound IC-2 Interpreter Control Console (U.S.) IC-2 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Williams Sound IC-2 Interpreter Control Console (U.S.) IC-2:
Specifications
Connections
Floor In: 3-pin XLR female jack, balanced (or unbalanced) input with 24k Ω differential input impedance, max balanced input is+19dBu IC-2 Bus In / Out: CAT5 8p8c RJ45 female receptacle, distributes balanced line level Floor and Relay audio to another IC-2XLR Microphone Inputs: 3-pin XLR female jack, balanced (or unbalanced) input. Switchable 12VDC simplex power. Variable gain of 58 dB,2.4k Ω balanced input impedance, maximum balanced input is +19 dBu 3.5mm Microphone Inputs: Stereo 3.5 mm TRS phone jack, pink, and stereo 3.5mm TRRS phone jack, black, unbalanced (r,s) for electret condensermics, variable gain of 40dB. Bias is 3.7VDC through 2.7k Ω3.5mm TRRS Headphone Output: 3.5mm TRRS phone jack, Tip = Left, Ring 1 = Right, Ring 2 = GND, Sleeve = Mic. 40mW max power into 32 Ω stereo headset. 3.5mm Headphone Output: 3.5mm TRS phone jack, mono or stereo headphone, 8 Ω minimum. 190mW max power into 32 Ω stereo headset.Norm Out, Relay Out: 3-pin XLR male jack, balanced output. Max output is +19dBu into 600 Ω balanced load impedance.
Controls
Volume: Left and Right rotary, controls headphone volumeBass and Treble Tone: Left and right rotary with center detent, controls headphone bass and treble tone levels.Mute: Push button, backlit red, mutes left and right mics while pressed.Mic On: Push button, backlit bright red, activates microphone. Right and left Mic On buttons are interlocked; mic can onlybe turned on if the other is off.Floor Input, Relay Input: Push buttons, backlit blue, select listening language group. Listening modes are either/or: turning one on disables the other.Relay Output: Push button, backlit yellow, selects microphone output language group: light on = Relay Out, light off = Norm Out.Gain Adjust: Rotary gain pots control level of microphone and Floor audio.Phantom Power: Slide switch enables 12VDC Simplex power to XLR microphone.Norm Feedthrough: Slide switch enables Floor feedthrough to Norm Out XLR jack.Relay Feedthrough: Slide switch enables Floor feedthrough to Relay Out XLR jack.Ground Lift: Slide switch disconnects Chassis and Audio Grounds internal to the console.
Frequency Response
45Hz to 20kHz, +0/-3dB re: 1kHz with flat bass/treble
Crosstalk
>63dB @ 1kHz
Tone
Bass: +12dB Boost or -12dB Cut @ 100Hz Treble: +12dB Boost or -12dB Cut @ 10kHz
Signal to Noise Ratio
>82dB @ 1kHz
THD & Noise
<0.5% THD @ full power
Indicators
Peak Level Indicator: Green LED on back panel indicates optimal audio output level on Norm Out XLR when blinking. Relay Output in Use Indicator: Yellow LED on front panel indicates when Relay Output is in use.
