User manual Wilson Electronics Sleek 4G Cellular Amplifier Kit 460107

Operating instructions and pdf manual for use - Wilson Electronics Sleek 4G Cellular Amplifier Kit 460107 User manual, User manual Wilson Electronics Sleek 4G Cellular Amplifier Kit 460107, Wilson, Electronics, Sleek, 4G, Cellular, Amplifier, Kit,


User manual for Wilson Electronics Sleek 4G Cellular Amplifier Kit 460107

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Wilson Electronics Sleek 4G Cellular Amplifier Kit 460107
  • Manufacturer: Wilson Electronics
  • Basic description and contents of package
  • Product classification: Mobile - Cell Phone Accessories - Cell Phone Signal Boosters - Vehicle Cell Phone Signal Boosters
  • Safety instructions
  • Startup and operation of the vehicle cell phone signal boosters
  • Tips for setting up your Wilson Electronics
  • Settings and expert assistance
  • Contact Wilson Electronics service
  • Troubleshooting
  • Warranty information
  • Price: 149 USD

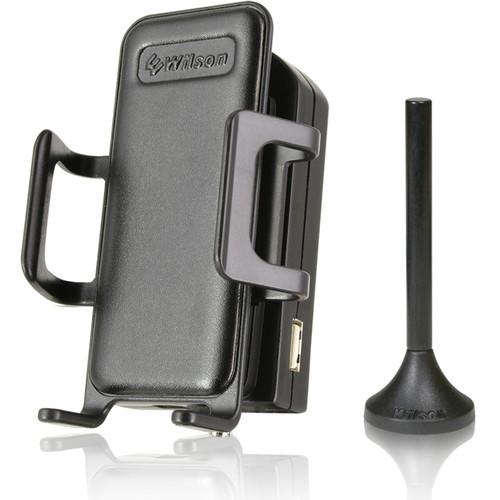

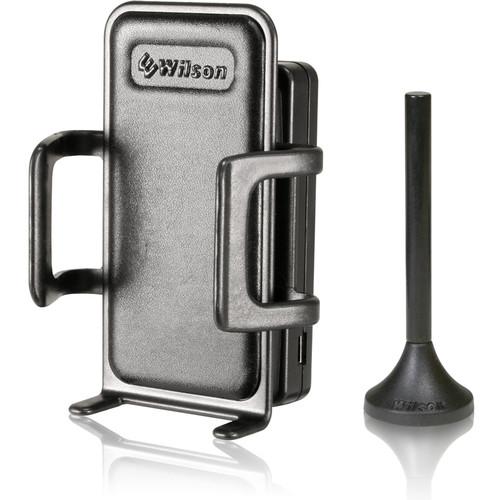

Wilson Electronics Sleek 4G Cellular Amplifier Kit 460107 Wilson Electronics Sleek 4G Cellular Amplifier Kit 460107
Click to enlarge image

We recommend checking out our discussion threads on the Wilson Electronics Sleek 4G Cellular Amplifier Kit 460107, which address similar problems with connecting and setting up Vehicle Cell Phone Signal Boosters Wilson Electronics.



User manual for the Wilson Electronics Sleek 4G Cellular Amplifier Kit 460107

The user manual for the Wilson Electronics Sleek 4G Cellular Amplifier Kit 460107 provides necessary instructions for the proper use of the product Mobile - Cell Phone Accessories - Cell Phone Signal Boosters - Vehicle Cell Phone Signal Boosters.

Amplify cellular signals and enhance mobile device performance while you're on the go with the Sleek 4G Cellular Amplifier Kit from Wilson Amplifiers. This amplifier kit includes the Sleek 4G signal booster, an outside mini-magnet mount antenna, and mounting hardware. Once connected, these devices work together to boost the 4G cellular signal from most U.S. carriers by up to 23 dB for a single user and device. In addition to boosting 4G data speeds, the Sleek 4G is backwards compatible, which means it can also amplify the signal for talk, text, 2G, and 3G data. This increased signal can reduce instances of poor voice quality, dropped calls, lost internet connection, slower downloads, and decreased or limited reception and range.

The Sleek 4G Cellular Amplifier Kit includes everything you need for a quick and easy DIY installation. However, before you install and use this device, you should register it with your wireless provider and confirm you have consent to use a signal booster and that the frequency bands your carrier uses are supported. Most carriers, including AT&T, T-Mobile, Verizon, and Sprint, have given blanket consent for the use of all signal boosters certified to FCC standards, which includes the Sleek 4G Amplifier.
If you own a Wilson Electronics vehicle cell phone signal boosters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Wilson Electronics Sleek 4G Cellular Amplifier Kit 460107 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Wilson Electronics Sleek 4G Cellular Amplifier Kit 460107:
Connector SMA-female
Impedance 50 ohms
Frequency 698 - 746 MHz
746 - 787 MHz
824 - 894 MHz
1850 - 1990 MHz
1710 - 1755 MHz
2110 - 2155 MHz
Gain 23 dB
Power Output Uplink:
700 MHz Band 12: 24.4 dBm
700 MHz Band 13: 23.1 dBm
800 MHz: 24.9 dBm
1900 MHz: 22.7 dBm
1700 MHz: 22.0 dBm
Downlink:
700 MHz Band 12: -26.0 dBm
700 MHz Band 13: -27.8 dBm
800 MHz: -27.3 dBm
1900 MHz: -26.8 dBm
1700 MHz: -28.6 dBm
Noise Figure 3 dB nominal
Isolation > 40 dB
Power Requirements 5.5 V, 2 A
Dimensions 2.25 x 4.25 x 2.5" / 5 x 9.5 x 5.6 cm
Weight 2.5 oz / 70 g
Packaging Info
Package Weight 1.15 lb
Box Dimensions (LxWxH) 9.5 x 6.4 x 2.8"
The user manual for the Wilson Electronics Sleek 4G Cellular Amplifier Kit 460107 can be downloaded in .pdf format if it did not come with your new vehicle cell phone signal boosters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Wilson Electronics users keep a unique electronic library for Wilson Electronics vehicle cell phone signal boosterss, where you can use our link to download the user manual for the Wilson Electronics Sleek 4G Cellular Amplifier Kit 460107.

The user manual lists all of the functions of the Wilson Electronics Sleek 4G Cellular Amplifier Kit 460107, all the basic and advanced features and tells you how to use the vehicle cell phone signal boosters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Wilson Electronics service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Wilson Electronics Sleek 4G Cellular Amplifier Kit 460107. User manuals are also available on the Wilson Electronics website under Mobile - Cell Phone Accessories - Cell Phone Signal Boosters - Vehicle Cell Phone Signal Boosters.
