User manual for the WTI Sidewinder H.264 High Definition 20x Zoom SW720HV-H.264-HD
The user manual for the WTI Sidewinder H.264 High Definition 20x Zoom SW720HV-H.264-HD provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

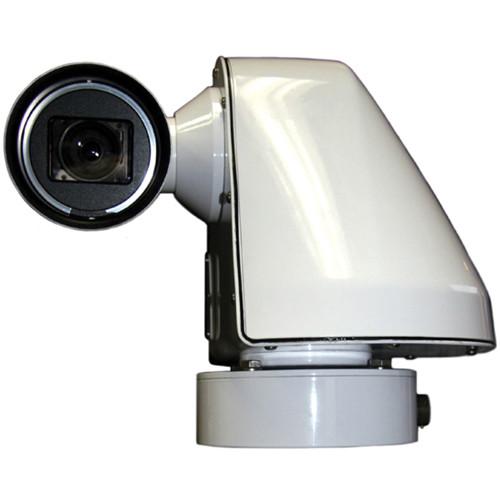

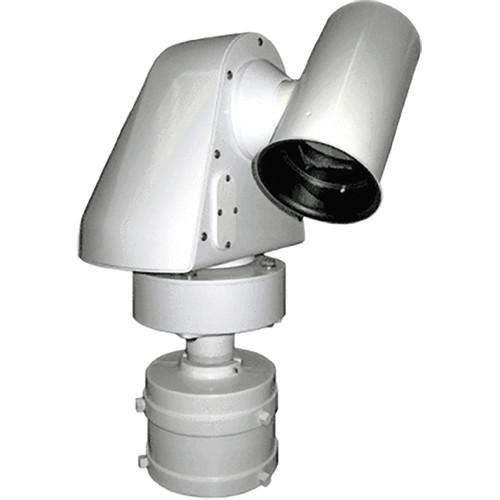

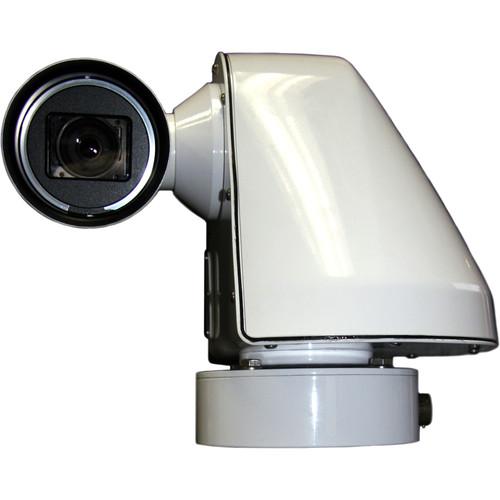

The WTI Sidewinder H.264 High Definition 20x Zoom Outdoor Camera is a high-accuracy day/night camera designed for outdoor application. Featuring a 2.14 MP CMOS image sensor, the camera offers 1080p video resolution for high-quality images. The 20x optical zoom lens provides 4.7 to 94mm focal length range and a 12x digital zoom for detailed imaging. The lens features a minimum illumination of 0.5 lux rendering the camera suitable for low-light surveillance.
The camera features continuous 360° pan rotation with 360° continuous tilt for capturing the camera's entire surrounding. 64 presets are available to store variable data for pan position, tilt position, zoom zetting, and focus settings. The camera's control data protocol supports Onvif and Pelco-D codes eliminating the needs for additional protocol converter hardware.
The IP67-rated weatherproof enclosure protects the Sidewinder from heavy rains and withstands immersion depth of 3' / 1 m for up to 30 minutes. The low-maintenance hydrophilic-coated window glass provides clear visibility in challenging weather conditions. The extreme-weather camera stays operational in temperatures ranging from -29 to 165.2°F (-34 to 74°C) and has a NEMA-4X rating for guaranteed protection against windblown dust and ice.
|
If you own a WTI wired ip cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the WTI Sidewinder H.264 High Definition 20x Zoom SW720HV-H.264-HD in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the WTI Sidewinder H.264 High Definition 20x Zoom SW720HV-H.264-HD:
| Image Sensor | 1/3" CMOS high definition, 2.14 MP | | Image Resolution | 1080p / 1080i / 720p (59.9 Hz) | | Lens | 20x optical zoom, f/1.6 to f/3.5 with 12x digital zoom | | Focal Length (optical) | 4.7 to 94mm | | Iris | Auto or manual override | | Focus | Auto or manual override | | Shutter Speed | 1 to 1/10,000 sec | | Signal to Noise Ratio | >50 dB | | Image Stabilization | None | | Wide Dynamic Range | On/Off | | Defog | None | | Sensitivity | 0.5 lux (F1.6 with 50 IRE) | | Pan & Tilt Range | Pan Angle Range: Continuous 360°
Tilt Angle Range: Continuous 360°
Pan Speed: 100°/sec proportional to zoom
Tilt Speed: 100°/sec proportional to zoom
Pan/Tilt Repeatedly: 0.05° | | Presets | 64 preset positions | | Title | 2 lines of 24 characters for camera ID and preset ID logo overlays | | Tours | 8 tours of 32 presets with individual dwell settings per preset | | Protocol | ONVIF, Pelco-D, COHU, NTCIP, WTI, Bosch, Diamond Genetec | | Firmware | Field upgradeable flash memory | | Air Contaminants | Withstands exposure to sand, dust, fungus, salt atmosphere as per MIL-E-5400T, paragraph 3.2.24.7, 3.2.24.8 and 3.2.24.9 | | Rating | IP67 / NEMA-4x / ASTM-B117 (entire camera) | | Vibration (Less Lens) | 3g (rms) random 5 to 1000 Hz, any axis | | Power Input | 85 to 265 VAC, 50 / 60 Hz | | Power Consumption | 50 W (with heater on) | | Operating Temperature Range | -29 to 165º F (-34º to 74º C) | | Humidity | 100% relative humidity | | Dimensions (L x H x W) | 7.8 x 11.3 x 12.6" (19.8 x 28.7 x 32.1 cm) | | Weight | 14.5 lb (6.5 kg) | | Package Weight | 15.0 lb | | Box Dimensions (LxWxH) | 21.0 x 17.0 x 14.0" | |
The user manual for the WTI Sidewinder H.264 High Definition 20x Zoom SW720HV-H.264-HD can be downloaded in .pdf
format if it did not come with your new wired ip cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other WTI users keep a unique electronic library
for WTI wired ip camerass,
where you can use our link to download the user manual for the WTI Sidewinder H.264 High Definition 20x Zoom SW720HV-H.264-HD.
The user manual lists all of the functions of the WTI Sidewinder H.264 High Definition 20x Zoom SW720HV-H.264-HD,
all the basic and advanced features and tells you how to use the wired ip cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from WTI service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the WTI Sidewinder H.264 High Definition 20x Zoom SW720HV-H.264-HD. User manuals are also
available on the WTI website under Surveillance - Surveillance Video - Wired IP Cameras.
