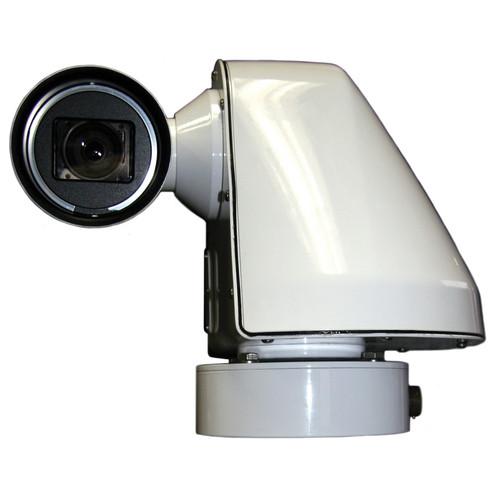

The Sidewinder Series SW720AP SD 36x Day/Night PTZ Camera (NTSC) from WTI is a pan-tilt-zoom camera system that provides standard definition composite 1 Vpp NTSC color video-over-video coaxial cable. The camera provides 360° continuous rotation in both the pan and tilt axes, and an optical zoom magnification of 36 times. A self-cleaning hydrophilic coating is provided on the front lens window of the camera to ensure clear, crisp video images and to reduce maintenance. An electrically conductive Indium-Tin-Oxide coating is provided on the inside of the front lens window to provide direct window heating and prevent fogging and icing. The camera is provided with a Schrader valve to allow periodic replenishment of the dry Nitrogen which pressurizes the housing tube to 5 psi.
If you own a WTI wired analog & hd cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the WTI Sidewinder SW720AP SD 36x Day/Night PTZ Camera SW720AP in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the WTI Sidewinder SW720AP SD 36x Day/Night PTZ Camera SW720AP:
Specifications
Image Sensor
1/4" type
Image Resolution
540 horizontal TVL
Effective Pixels (H x V)
768 x 494
Lens
High durability 36x optical zoom F1.4 with 12x digital zoom
Focal Length (optical)
3.3 to 120 mm
Iris
Auto or Manual Override
Shutter
Auto or Manual Override
Focus
Auto or Manual Override
Wide Dynamic Range
On/off
Signal to Noise Ratio
>52 dB
Pan/Tilt
Pan Angle Range: continuous 360° Tilt Angle Range: continuous 360° Pan Speed: 100°/sec - proportional to zoom Tilt Speed: 100°/sec - proportional to zoom Pan/Tilt Encoder Resolution: 0.05° Pan/Tilt Repeatability: 0.05°
Communication
RS-422 or RS-485 standard
Protocol
Pelco-D, COHU Field upgradeable flash memory
Preset
64 preset positions
Title
Title Genertaion: 2 lines of 24 characters for camera ID, and preset ID
Tours
8 tours of 32 presets with individual dwell settings per preset
Inverted Operation
Automatic camera image inversion
Power Input
85 to 265 VAC or 24 VAC +/- 6 VAC
Power Consumption
50 W
Vibration (Less Lens)
3g (rms) random 5 to 1000 Hz, any axis
Air Contaminants
Withstands exposure to sand, dust, fungus, and salt atmosphere as per military specification MIL-E-5400T
Operating Temperature Range
-29 to 165°F (-34 to 74°C) Conforms to NEMA 2.1.5.1 Std TS2 for traffic control systems
Humidity
100% relative humidity
Protection Rating
IP-67/NEMA-4X/ASTM-B117 (entire camera)
Dimensions (HxWxD)
10.3 x 12.6 x 9.25" (26.1 x 32.1 x 23.5 cm) Diameter: 7.81" (19.8 cm)
Weight
14.5 lb (6.50 kg)
