User manual for the WTI SW720-H.264-SD-ENG Sidewinder 540TVL SW720-H.264-SD-ENG
The user manual for the WTI SW720-H.264-SD-ENG Sidewinder 540TVL SW720-H.264-SD-ENG provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

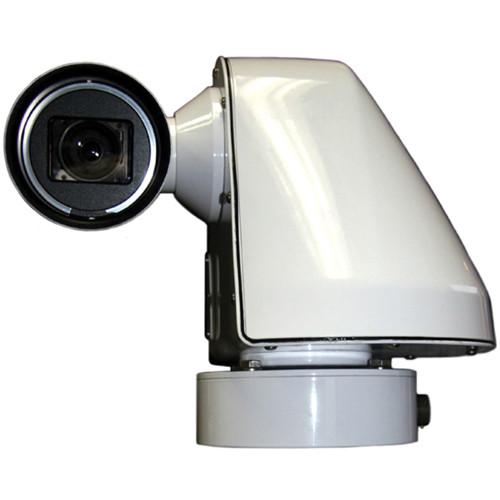

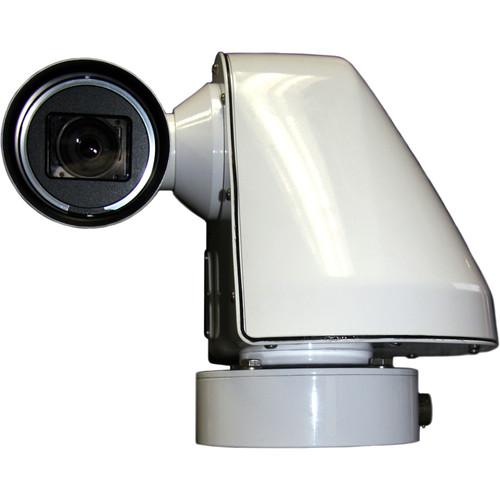

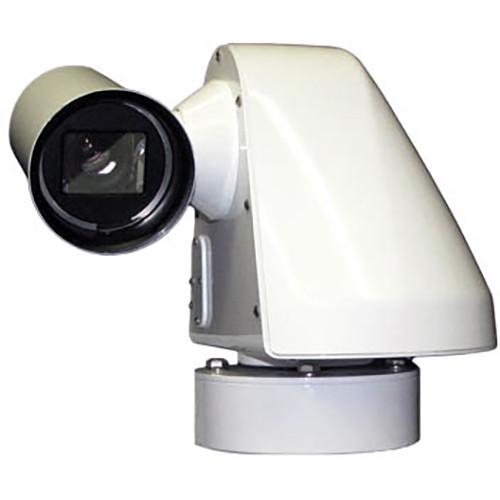

The WTI SW720-H.264-SD-ENG Sidewinder 540TVL Outdoor IP Camera with Electric Brakes (NTSC) is a pan-tilt-zoom camera system that provides standard definition color video over an Ethernet connection, using H.264 or MJPEG video compression. The camera provides 360° continuous rotation in both the pan and tilt axes, and provides an optical zoom magnification of 35x. This camera also includes electrically operated pan and tilt motor brakes with a minimum holding torque of 300 oz/inch for maintaining the camera position when power is removed from the camera.
|
If you own a WTI wired ip cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the WTI SW720-H.264-SD-ENG Sidewinder 540TVL SW720-H.264-SD-ENG in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the WTI SW720-H.264-SD-ENG Sidewinder 540TVL SW720-H.264-SD-ENG:
| Image Sensor | 1/4" Solid State Interline Transfer Progressive Scan CCD | | Image Resolution | >540 horizontal TVL (typically 540 horizontal by 340 vertical) | | Pixel Resolution | 811 horizontal x 508 vertical (total) - 768 (H) x 494 (V) viewable | | Video Output Format | 1 Vpp at 75 Ω, unbalanced, NTSC | | Aperture | F1.4 at full wide angle and F4.2 at full telephoto (maximum) | | Focal Length | 3.3 to 119 mm | | Zoom | Optical: 1 to 36x
Digital: 1 to 12x with smooth transition from optical to digital
Combined Focal Length: 119 to 1428 mm
Optical Zoom Speed: 2 sec for manual focus preset change and 4.6 sec for focus trace curve mode | | Horizontal Angle of View | 60.2° (wide angle) to 1.8° (tele) | | Minimum Focus Distance | 0.4" (1.0 mm) (wide angle) to 40.0" (101.6 cm) (tele) | | Stabilization | Electronic: Selectable for either 5 or 10 Hz (reduces image resolution slightly) | | Auto Focus System | Selectable between Auto/Manual
Manual Focus Speed: Approximately 2 sec - near to far | | Shutter Speed | Adjustable from 1 to 1/30,000 sec. Settings below 1/60 sec increase integration time to improve low light sensitivity with video frame store to provide continuous video output. | | Auto Iris | Electronically controlled from F1.4 to F32 to provide optimum sensor illumination for constant video output. | | AGC (Automatic Gain Control) | 0 to 30 dB | | Gamma | 0.45 (adjustable) | | Color Balance | Auto White Balance with adjustable red and blue levels. | | Signal to Noise Ratio | >50 dB | | Synchronization | Crystal | | Video Encoding | H.264 (High Profile/Level 3.1) and MJPEG standards | | Video Streams | Two independently configurable streams; 2 x H.264 streams or H.264 and MJPEG | | Codec | Video Stream 1: H.264
Video Stream 2: H.264 or MJPEG | | Image Resolution | 720p, D1, VGA, CIF | | Streaming Mode | CBR or VBR | | Image Settings | (GOP (M, N)), Quality Value | | Frame Rate | 30, 15, 7, 4, 2, 1 | | Data Rate | Adjustable from 64 kb/s to 8 Mb/s in VBR mode and 64 kb/s to 3 Mb/s in CBR mode | | Connection | Unicast, multi-unicast or multi-cast | | Video Latency | <250 ms | | Network Protocol Layers | RTP, RTSP, UDP, TCP, IP, HTTP, IGMPv2, ICMP, ARP as a minimum | | Window | External Window Coating: High temperature vacuum deposited hydrophilic coating to reduce window cleaning maintenance.
Internal Window Coating: Electrically conductive coating to allow energy saving direct heating of window glass to prevent fogging. | | Control | Window Heat Control: Proportionally controlled closed loop window heater drive circuit with outside temperature sensor unit to provide fog free window operation under all environmental conditions.
Block Camera Heating: Temperature sensor and microprocessor controlled image sensor heater to provide reliable operation of zoom lens down to -29.2°F (-34°C). | | Range | 360° continuous rotation (both axes) | | Speed | Drive: Variable from 0.0003 to 100°/sec
Operator Motion: Pan and Tilt speeds are proportional to both operator speed commands and camera zoom setting. | | Drive | Drive Resolution: 0.005625°
Drive Repeatability 0.05° typical | | Time | Preset to Preset Time: Selectable between 2 and 5 sec for 180° motion in both axes | | Brake | Torque: 300 oz/inch | | Presets | Minimum of 64 presets, each preset to store variable data for pan position, tilt position, zoom setting, focus setting and 24 characters of titling text to be displayed when the preset is recalled. Preset titling to remain on screen until subsequent preset or camera control commands are received. | | Tours | Eight tours of up to 32 presets each shall be supported. Presets may be assigned to the tours in any order and may be used multiple times within one tour.
Panning Tours: Any or all of the eight tours may be used as "panning" tours by selecting exactly two presets for the tour. The first preset selected for the tour shall set the counter-clockwise panning limit and the tilt angle for the tour, and the second preset selected shall set the clockwise panning limit for the tour. The positioning system shall pan smoothly from one preset to the other and back again until a subsequent camera command is received. | | Zones | Sector Zones: Up to 16 sector zones with user settable right and left pan limits may be programmed with one line of up to 20 characters of ID titling per zone.
Privacy Zones: Any Sector Zone may be utilized as a privacy zone by setting the video mode to OFF within that zone. | | Warning | Provides an internal temperature warning indication on the video display | | Program Memory | Unit is field upgradable using FLASH non-volatile memory to store programming. | | Line Voltage | 85 to 265 VAC 50/60 Hz | | Power Consumption | <50 W with all options operating | | Analog Video Output | 75 Ω, 1 Vpp, NTSC, EIA-170A | | Protection | Video Transient Protection: Gas discharge tube followed by 40A 2kW transient voltage suppressor.
Data Transient Protection: Gas discharge tubes followed by 40A 300W transient voltage suppressors. | | Control Data | EIA RS-485 signal levels and drive capabilities. | | Control Data | Cohu, Pelco D, WTI, NTCIP, ONVIF and other protocols. | | Immunity | Power interrupt immunity NEMA TS-2 paragraph 2.1.4.
Power transient immunity NEMA TS-2 paragraph 2.1.6. | | Ambient Temperature | -29 to 165°F (-34 to 74°C) (Conforms to NEMA TS-2 paragraphs 2.1.2, 2.1.3 and 2.1.5.) | | Humidity | 100% relative humidity | | Protection Rating | IP-67 / NEMA-4X / ASTM-B117 | | Air Contaminants | Withstands exposure to sand, dust, fungus, salt atmosphere, per MIL-E-5400T, paragraph 3.2.24.7, 3.2.24.8, and 3.2.24.9 | | Vibration | NEMA TS-2 paragraphs 2.1.9 and 2.2.3 using a 0.5 g amplitude signal from 5 to 30 Hz applied in each of 3 mutually perpendicular axes for 30 minutes. | | Shock | NEMA TS-2 paragraphs 2.1.10 and 2.2.4 using a 10 g amplitude, 10 ms duration shock pulse in each of 3 mutually perpendicular axes. | | Immunity | Water Spray Immunity: IPx6 rating - IEC 60529 section 14.2.6 using a 25 gallon per minute water stream through a 12.5 mm nozzle at 9.0' (2.7 m) for 3 minutes.
Water Immersion Immunity: IPx7 - IEC 60529 section 14.2.7 using an immersion depth of 3.3' (1.0 m) measured at the bottom of the camera and a duration of 30 minutes.
Icing Immunity: NEMA 250-2003 section 5.6.
Corrosion Immunity: NEMA 250-2003 section 5.10 and the procedure specified in ASTM-B117 Marine. | | EMI | Within the limits set by FCC Regulations 47 CFR Part 15 for Class A devices. | | Construction | White powder coated aluminum and Kydex 550 with all stainless steel hardware | | Dimensions (L x H x W) | Camera: 12.6 x 11.3 x 9.2" (32.0 x 28.7 x 23.4 cm)
Umbilical Cord Length: 3.0' (0.9 m) | | Weight | 14.6 lb (6.6 kg) | | Package Weight | 19.0 lb | | Box Dimensions (LxWxH) | 21.0 x 17.0 x 14.0" | |
The user manual for the WTI SW720-H.264-SD-ENG Sidewinder 540TVL SW720-H.264-SD-ENG can be downloaded in .pdf
format if it did not come with your new wired ip cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other WTI users keep a unique electronic library
for WTI wired ip camerass,
where you can use our link to download the user manual for the WTI SW720-H.264-SD-ENG Sidewinder 540TVL SW720-H.264-SD-ENG.
The user manual lists all of the functions of the WTI SW720-H.264-SD-ENG Sidewinder 540TVL SW720-H.264-SD-ENG,
all the basic and advanced features and tells you how to use the wired ip cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from WTI service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the WTI SW720-H.264-SD-ENG Sidewinder 540TVL SW720-H.264-SD-ENG. User manuals are also
available on the WTI website under Surveillance - Surveillance Video - Wired IP Cameras.
