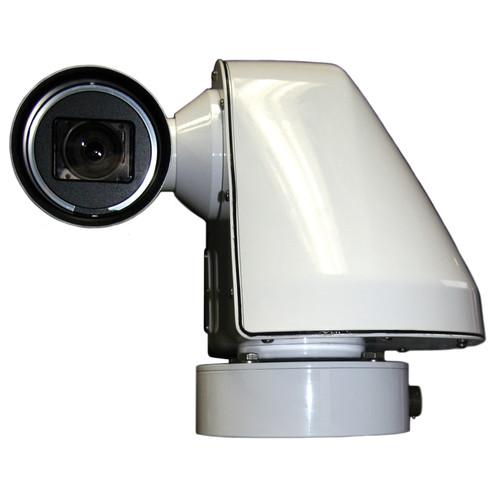

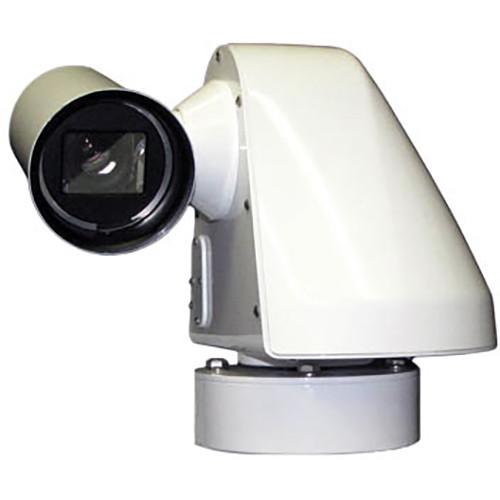

Click to enlarge image
|
We recommend checking out our discussion threads on the WTI SW720-HD30 Sidewinder 30x High-Definition SW720-HD30,
which address similar problems with connecting and setting up Wired Analog & HD Cameras WTI.
|
User manual for the WTI SW720-HD30 Sidewinder 30x High-Definition SW720-HD30
The user manual for the WTI SW720-HD30 Sidewinder 30x High-Definition SW720-HD30 provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired Analog & HD Cameras.
The WTI SW720-HD30 Sidewinder 30x High-Definition Surveillance Camera is designed for outdoor applications. Featuring a 2MP CMOS image sensor, the camera offers up to 1080i and 1080p resolutions. A 30x optical zoom lens provides a 4.3 to 129mm focal length range, 20x digital zoom power, and maximum aperture of f/1.6 at the widest angle, making the camera suitable for low-light surveillance.
|
If you own a WTI wired analog & hd cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the WTI SW720-HD30 Sidewinder 30x High-Definition SW720-HD30 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the WTI SW720-HD30 Sidewinder 30x High-Definition SW720-HD30:
| Image Sensor | 2 MP CMOS | | Image Resolution | 1080p/29.97, 1080p/25, 1080i/59.94, 1080i/50, 720p/29.97, 720p/25 | | Optical Zoom | 30x | | Focal Length (optical) | 4.3 to 129 mm | | Maximum Aperture | F1.6 to F4.7 | | Digital Zoom | 20 | | Auto Focus On/Off | Yes | | Iris | Auto or manual override | | Shutter Speed | 1 to 1/10,000 second | | Signal to Noise Ratio | >50 dB | | Focus | Auto or manual override | | Image Stabilization | Electronic Image Stabilization mode | | WDR Technology | On/Off | | Defog | On/Off | | Sensitivity | On/Off (F1.6 with 50 IRE)
High Mode: On (0.35 lux)
High Mode: Off (1.4 lux) | | Output Format | Y/Pb/Pr | | Layer | RS-485 standard (physical) | | Protocol | WTI proprietary, industry standard or optional NTCIP | | Firmware | Field upgradeable flash memory | | Pan/Tilt | Pan Angle Range: continuous 360°
Tilt Angle Range: continuous 360°
Pan Speed: 100°/sec - proportional to zoom
Tilt Speed: 100°/sec - proportional to zoom
Pan/Tilt Encoder Resolution: 0.05°
Pan/Tilt Repeatability: 0.05° | | Tours | 8 tours of 32 presets with individual dwell settings per preset | | Preset | 64 preset positions | | Title | 2 lines of 24 characters | | Ambient Temperature Range | -29 to 165°F (-34 to 74°C)
Conforms to NEMA 2.1.5.1 Std TS2 for traffic control systems | | Humidity | 100% relative humidity | | Protection Rating | IP-67/NEMA-4X/ASTM-B117 | | Vibration (Less Lens) | 3g (rms) random 5 to 1000 Hz, any axis | | Air Contaminants | Withstands exposure to sand, dust, fungus, salt atmosphere, per MIL-E-5400T, paragraph 3.2.24.7, 3.2.24.8, and 3.2.24.9 | | Dimensions | H x W x D: 10.3 x 12.7" (26.2 x 32.1 cm)
Diameter: 3.8" (9.7 cm) | | Weight | 14.5 lb (6.5 kg) | | Package Weight | 19.0 lb | | Box Dimensions (LxWxH) | 21.0 x 17.0 x 14.0" | |
The user manual for the WTI SW720-HD30 Sidewinder 30x High-Definition SW720-HD30 can be downloaded in .pdf
format if it did not come with your new wired analog & hd cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other WTI users keep a unique electronic library
for WTI wired analog & hd camerass,
where you can use our link to download the user manual for the WTI SW720-HD30 Sidewinder 30x High-Definition SW720-HD30.
The user manual lists all of the functions of the WTI SW720-HD30 Sidewinder 30x High-Definition SW720-HD30,
all the basic and advanced features and tells you how to use the wired analog & hd cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from WTI service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the WTI SW720-HD30 Sidewinder 30x High-Definition SW720-HD30. User manuals are also
available on the WTI website under Surveillance - Surveillance Video - Wired Analog & HD Cameras.
