User manual for the WTI SW720HV-H.264-SD Sidewinder 540TVL Outdoor SW720HV-H.264-SD

The user manual for the WTI SW720HV-H.264-SD Sidewinder 540TVL Outdoor SW720HV-H.264-SD provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

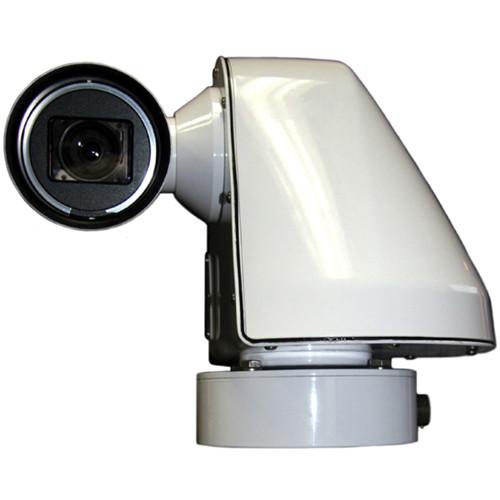

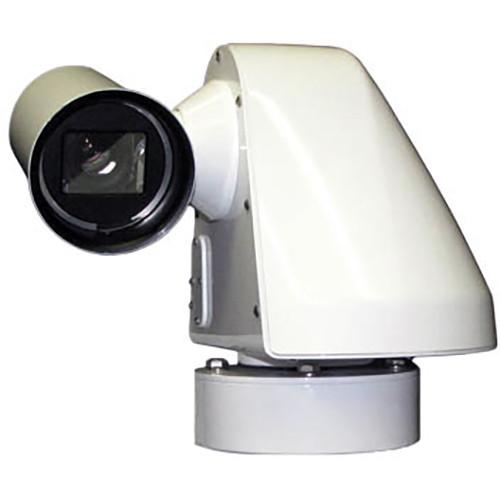

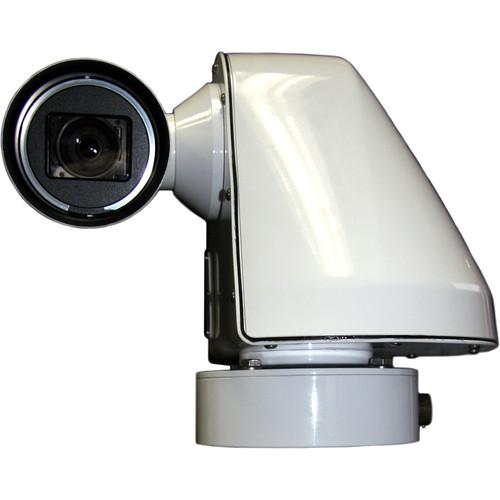

The WTI SW720HV-H.264-SD Sidewinder 540TVL Outdoor IP Camera with Side Egress MS Connector (NTSC) is a pan-tilt-zoom camera system that provides standard definition color video over an Ethernet connection, using H.264 or MJPEG video compression. The camera provides 360° continuous rotation in both the pan and tilt axes, and provides an optical zoom magnification of 35x.
If you own a WTI wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the WTI SW720HV-H.264-SD Sidewinder 540TVL Outdoor SW720HV-H.264-SD in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the WTI SW720HV-H.264-SD Sidewinder 540TVL Outdoor SW720HV-H.264-SD:
Specifications
Image Sensor 1/4" Solid State Interline Transfer Progressive Scan CCD
Image Resolution >540 horizontal TVL (typically 540 horizontal by 340 vertical)
Pixel Resolution 811 horizontal x 508 vertical (total) - 768 (H) x 494 (V) viewable
Video Output Format 1 Vpp at 75 Ω, unbalanced, NTSC
Aperture F1.4 at full wide angle and F4.2 at full telephoto (maximum)
Focal Length 3.3 to 119 mm
Zoom Optical: 1 to 36x
Digital: 1 to 12x with smooth transition from optical to digital
Combined Focal Length: 119 to 1428 mm
Optical Zoom Speed: 2 sec for manual focus preset change and 4.6 sec for focus trace curve mode
Horizontal Angle of View 60.2° (wide angle) to 1.8° (tele)
Minimum Focus Distance 0.4" (1.0 mm) (wide angle) to 40.0" (101.6 cm) (tele)
Stabilization Electronic: Selectable for either 5 or 10 Hz (reduces image resolution slightly)
Auto Focus System Selectable between Auto/Manual
Manual Focus Speed: Approximately 2 sec - near to far
Shutter Speed Adjustable from 1 to 1/30,000 sec. Settings below 1/60 sec increase integration time to improve low light sensitivity with video frame store to provide continuous video output.
Auto Iris Electronically controlled from F1.4 to F32 to provide optimum sensor illumination for constant video output.
AGC (Automatic Gain Control) 0 to 30 dB
Gamma 0.45 (adjustable)
Color Balance Auto White Balance with adjustable red and blue levels.
Signal to Noise Ratio >50 dB
Synchronization Crystal
Video
Video Encoding H.264 (High Profile/Level 3.1) and MJPEG standards
Video Streams Two independently configurable streams; 2 x H.264 streams or H.264 and MJPEG
Codec Video Stream 1: H.264
Video Stream 2: H.264 or MJPEG
Image Resolution 720p, D1, VGA, CIF
Streaming Mode CBR or VBR
Image Settings (GOP (M, N)), Quality Value
Frame Rate 30, 15, 7, 4, 2, 1
Data Rate Adjustable from 64 kb/s to 8 Mb/s in VBR mode and 64 kb/s to 3 Mb/s in CBR mode
Connection Unicast, multi-unicast or multi-cast
Video Latency <250 ms
Network Protocol Layers RTP, RTSP, UDP, TCP, IP, HTTP, IGMPv2, ICMP, ARP as a minimum
Housing
Window External Window Coating: High temperature vacuum deposited hydrophilic coating to reduce window cleaning maintenance.
Internal Window Coating: Electrically conductive coating to allow energy saving direct heating of window glass to prevent fogging.
Control Window Heat Control: Proportionally controlled closed loop window heater drive circuit with outside temperature sensor unit to provide fog free window operation under all environmental conditions.
Block Camera Heating: Temperature sensor and microprocessor controlled image sensor heater to provide reliable operation of zoom lens down to -29.2°F (-34°C).
Pan & Tilt Unit
Range 360° continuous rotation (both axes)
Speed Drive: Variable from 0.0003 to 100°/sec
Operator Motion: Pan and Tilt speeds are proportional to both operator speed commands and camera zoom setting.
Drive Drive Resolution: 0.005625°
Drive Repeatability 0.05° typical
Time Preset to Preset Time: Selectable between 2 and 5 sec for 180° motion in both axes
Brake Torque: 300 oz/inch
Presets Minimum of 64 presets, each preset to store variable data for pan position, tilt position, zoom setting, focus setting and 24 characters of titling text to be displayed when the preset is recalled. Preset titling to remain on screen until subsequent preset or camera control commands are received.
Tours Eight tours of up to 32 presets each shall be supported. Presets may be assigned to the tours in any order and may be used multiple times within one tour.

Panning Tours: Any or all of the eight tours may be used as "panning" tours by selecting exactly two presets for the tour. The first preset selected for the tour shall set the counter-clockwise panning limit and the tilt angle for the tour, and the second preset selected shall set the clockwise panning limit for the tour. The positioning system shall pan smoothly from one preset to the other and back again until a subsequent camera command is received.
Zones Sector Zones: Up to 16 sector zones with user settable right and left pan limits may be programmed with one line of up to 20 characters of ID titling per zone.
Privacy Zones: Any Sector Zone may be utilized as a privacy zone by setting the video mode to OFF within that zone.
Warning Provides an internal temperature warning indication on the video display
Program Memory Unit is field upgradable using FLASH non-volatile memory to store programming.
Electrical
Line Voltage 85 to 265 VAC 50/60 Hz
Power Consumption <50 W with all options operating
Analog Video Output 75 Ω, 1 Vpp, NTSC, EIA-170A
Protection Video Transient Protection: Gas discharge tube followed by 40A 2kW transient voltage suppressor.
Data Transient Protection: Gas discharge tubes followed by 40A 300W transient voltage suppressors.
Control Data EIA RS-485 signal levels and drive capabilities.
Control Data Cohu, Pelco D, WTI, NTCIP, ONVIF and other protocols.
Immunity Power interrupt immunity NEMA TS-2 paragraph 2.1.4.
Power transient immunity NEMA TS-2 paragraph 2.1.6.
Environmental
Ambient Temperature -29 to 165°F (-34 to 74°C) (Conforms to NEMA TS-2 paragraphs 2.1.2, 2.1.3 and 2.1.5.)
Humidity 100% relative humidity
Protection Rating IP-67 / NEMA-4X / ASTM-B117
Air Contaminants Withstands exposure to sand, dust, fungus, salt atmosphere, per MIL-E-5400T, paragraph 3.2.24.7, 3.2.24.8, and 3.2.24.9
Vibration NEMA TS-2 paragraphs 2.1.9 and 2.2.3 using a 0.5 g amplitude signal from 5 to 30 Hz applied in each of 3 mutually perpendicular axes for 30 minutes.
Shock NEMA TS-2 paragraphs 2.1.10 and 2.2.4 using a 10 g amplitude, 10 ms duration shock pulse in each of 3 mutually perpendicular axes.
Immunity Water Spray Immunity: IPx6 rating - IEC 60529 section 14.2.6 using a 25 gallon per minute water stream through a 12.5 mm nozzle at 9.0' (2.7 m) for 3 minutes.
Water Immersion Immunity: IPx7 - IEC 60529 section 14.2.7 using an immersion depth of 3.3' (1.0 m) measured at the bottom of the camera and a duration of 30 minutes.
Icing Immunity: NEMA 250-2003 section 5.6.
Corrosion Immunity: NEMA 250-2003 section 5.10 and the procedure specified in ASTM-B117 Marine.
EMI Within the limits set by FCC Regulations 47 CFR Part 15 for Class A devices.
Mechanical
Construction White powder coated aluminum and Kydex 550 with all stainless steel hardware
Dimensions (L x H x W) Camera: 12.6 x 11.3 x 9.2" (32.0 x 28.7 x 23.4 cm)
Weight 14.6 lb (6.6 kg)
