User manual for X-Rite i1Display Pro EODIS3
Overall Rating: 4.5
90% of respondents would recommend this to a friend.
We recommend checking out our discussion threads on the X-Rite i1Display Pro EODIS3,
which address similar problems with connecting and setting up Calibration X-Rite.
User manual for the X-Rite i1Display Pro EODIS3
The user manual for the X-Rite i1Display Pro EODIS3 provides
necessary instructions for the proper use of the product Computers & Solutions - Monitor & Display Accessories - Calibration.

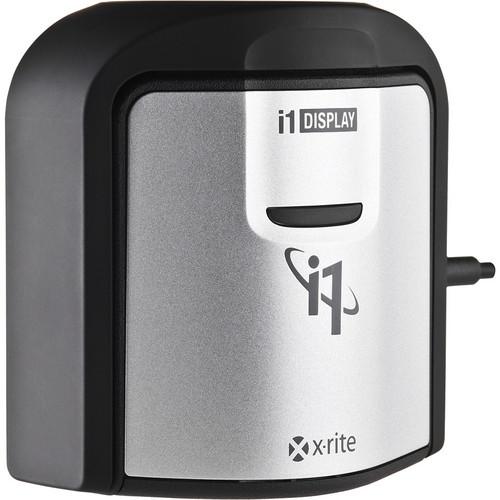

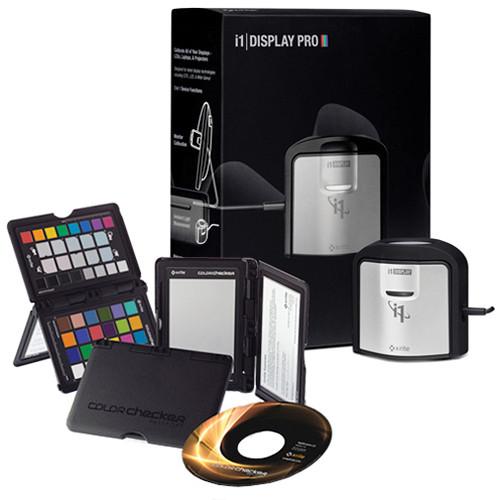

The X-Rite i1Display Pro is a calibration and profiling system for a display / projector. It helps to make sure that the colors on your display match those in your original picture or file. The i1Display features i1Profiler software for calibrating and profiling all modern display and projector technologies, including LED and Wide Gamut LCDs. It's also spectrally calibrated, which makes it field-upgradeable to support future display technologies!
The system's ergonomic design incorporates 3 functions - ambient light measurement, monitor profiling, and projector profiling - into a very sleek, compact and fully integrated device with no parts to misplace. Experience speeds up to 5X faster than previous devices! A custom-designed RGB filter set provides accurate color measurements, while the optical design allows for high repetition on the same display and across different display types for more consistent color matching. There's even a rotating diffuser arm that can be used as a stand for table top projector profiling, ambient light measurement, or as a cover for instrument optics. The conveniently integrated tripod mount is great for projector profiling in larger venues.
The i1Display offers both 'Basic' and 'Advanced' modes, giving you the power to choose which one is best for you. Basic mode offers a wizard-driven interface with predefined options for the quickest path to professional on-screen color. Advanced mode offers user-defined options for more sophisticated profiling workflows, to deliver the highest quality color results on monitors and projectors, as well as display testing and quality assurance tools.
Enjoy virtually infinite control of white point, luminance, contrast ratio, gamma and more, as well as multiple monitor and workgroup profiling. Intelligent Iterative Profiling is an adaptive technology that measures and analyzes the color capabilities of each unique display for increased profile accuracy. Create unique patch sets for optimal results in your profiling. Ambient Light Measurement automatically determines the optimum display luminance for comparing prints to your display, based on a measurement of the lighting conditions where the prints will be viewed. Ambient Light Smart Control performs measurement, compensation and ongoing monitoring of ambient lighting conditions, letting you decide whether you want the i1Display system to automatically adjust your profile or simply notify you as ambient light conditions change.
Flare Correct measures and adjusts your display profile for reduced contrast ratios caused by flare light (or glare) falling on the surface of your display. By accurately measuring your effective display contrast ratio, you'll have a more precise display profile. 3 patch set sizes - small, medium, or large - allow you to increase your profile accuracy by measuring a higher number of patches. Choose your own combination of patch set size, extracted colors from specific images and/or PANTONE spot colors selected from the included PANTONE Color Manager software. The Automatic Display Control (ADC) technology automates the adjustment of your display's hardware, including brightness/backlight, contrast, and color temperature, in order to speed up the profiling process and eliminate manual adjustments--so there's less work for you!
You can re-use profile settings on multiple displays connected to the same computer or to multiple computers within a workgroup. Before and after images show instant results, and the handy profile reminder lets you know when it's time to re-profile your display. Easy-to-follow on-screen help guides and videos mean there are no extra manuals needed.
When it comes to display quality assurance, this system can perform visual validation using pre-defined and user defined images. It can also do measurement-based validation in 3 different ways: Using industry standard targets and reference data sets (like SWOP, Gracol and Fogra), using PANTONE color and libraries, or using colors extracted from user defined images. You can also take advantage of user defined PASS/FAIL deltaE tolerance for average and maximum values. Additionally, the i1Display Pro features color accuracy trending over time. For a display uniformity test, measure white point and luminance uniformity over 9 locations on your display, and take control with user defined PASS/FAIL tolerance.
If you own a X-Rite calibration and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the X-Rite i1Display Pro EODIS3 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the X-Rite i1Display Pro EODIS3:
Specifications
System Requirements
Macintosh:
Mac OS X 10.7.x, or 10.8.x, 10.9.x, and Yosemite (with the latest updates installed) 512 MB RAM (2 GB recommended) Intel Core 2 Duo CPU or better Up to 500 MB of available disk space (depending on components installed) Powered USB port Monitor resolution of 1024 x 768 pixels or higher Latest drivers for video card installed DVD drive or high-speed internet connection required for software install, download, and automatic software update User must have Administrator rights to install and uninstall the application
Windows:
Microsoft Windows 8.1, 8, or 7 (32 and 64-bit, with the latest Service Packs installed) 512 MB RAM (2 GB recommended) Intel Core 2 Duo or AMD Athlon XP or better Up to 500 MB of available disk space (depending on components installed) Powered USB port Monitor resolution of 1024 x 768 pixels or higher Dual display support requires either 2 video cards or a dual head video card that supports dual video LUTs being loaded Network adaptor installed and driver loaded DVD drive or high-speed internet connection required for software install, download, and automatic software update User must have Administrator rights to install and uninstall the application
ColorTRUE Device Compatibility
Apple iOS:
iPad 2, 3rd gen, 4th gen, Air, Mini, & Mini 2nd gen running iOS 7.x or later iPhone 4, 4S, 5, 5C, & 5S running iOS 7.x or later iPod Touch running iOS 7.x or later
Google Android
Samsung Galaxy running Android 4.0.4 or later Google Nexus running Android 4.0.4 or later Asus Transformer running Android 4.0.4 or later HTC One running Android 4.0.4 or later
Note: In order to communicate with an X-Rite measurement device a USB OTG (On-the-Go) adapter is required. The mobile device must be USB-Host or USB OTG (On-The-Go) compatible
Registration: Product registration is required to receive X-Rite technical support during the warranty period. Registration can occur directly through the software, on our website, or via phone. Users are encouraged to register their product within the first 30 days of use
Languages: Chinese (Simplified), English, French, German, Italian, Japanese, Portuguese, Spanish, and Russian
The user manual for the X-Rite i1Display Pro EODIS3 can be downloaded in .pdf
format if it did not come with your new calibration, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other X-Rite users keep a unique electronic library
for X-Rite calibrations,
where you can use our link to download the user manual for the X-Rite i1Display Pro EODIS3.
The user manual lists all of the functions of the X-Rite i1Display Pro EODIS3,
all the basic and advanced features and tells you how to use the calibration.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from X-Rite service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the X-Rite i1Display Pro EODIS3. User manuals are also
available on the X-Rite website under Computers & Solutions - Monitor & Display Accessories - Calibration.
