User manual Xerox ColorQube 8580N Color Solid Ink Printer 8580/N

Operating instructions and pdf manual for use - Xerox ColorQube 8580N Color Solid Ink Printer 8580/N User manual, User manual Xerox ColorQube 8580N Color Solid Ink Printer 8580/N, Xerox, ColorQube, 8580N, Color, Solid, Ink, Printer, 8580/N,


User manual for Xerox ColorQube 8580N Color Solid Ink Printer 8580/N

Overall rating 2.0
Overall Rating: 2.0

40% of respondents would recommend this to a friend.
Xerox ColorQube 8580N Color Solid Ink Printer 8580/N
  • Manufacturer: Xerox
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Printers & Accessories - Laser Printers
  • Safety instructions
  • Startup and operation of the laser printers
  • Tips for setting up your Xerox
  • Settings and expert assistance
  • Contact Xerox service
  • Troubleshooting
  • Warranty information
  • Price: 599 USD

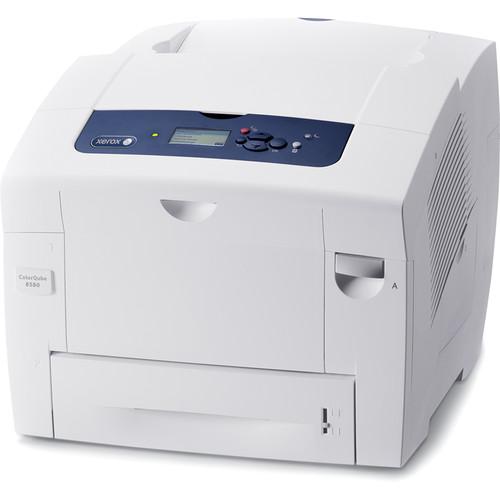

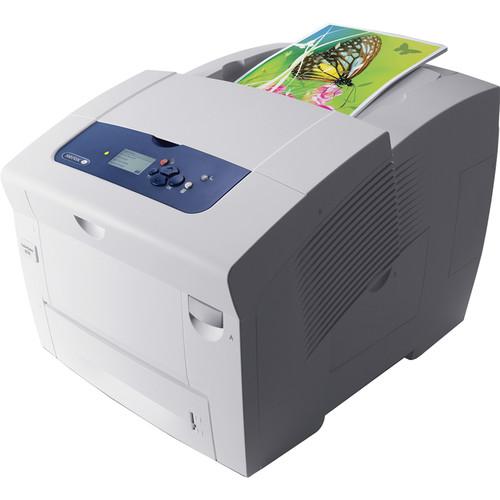

Xerox ColorQube 8580N Color Solid Ink Printer 8580/N Xerox ColorQube 8580N Color Solid Ink Printer 8580/N
Click to enlarge image

We recommend checking out our discussion threads on the Xerox ColorQube 8580N Color Solid Ink Printer 8580/N, which address similar problems with connecting and setting up Laser Printers Xerox.



User manual for the Xerox ColorQube 8580N Color Solid Ink Printer 8580/N

The user manual for the Xerox ColorQube 8580N Color Solid Ink Printer 8580/N provides necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - Laser Printers.

Embrace cartridge-free printing with the Solid Ink technology of the ColorQube 8580N Color Solid Ink Printer from Xerox. Capable of high resolution printing with Xerox's 2400 FinePoint Technology, color photos and text documents are sharp and detailed. This technology also enables fast print speeds of up to 51 ppm in certain modes and a first page out time of just 5 seconds. Built-in Ethernet connectivity further increases your options with the addition of networking and mobile printing capabilities.

Paper is handled with either a 100-sheet multipurpose tray or a 525-sheet standard input tray. This can handle documents from 3 x 5" to 8.5 x 14" for most standard print sizes. Also, the unit has a monthly duty cycle of 85,000 pages for durability and it offers a standard USB 2.0 connection for simple use.
If you own a Xerox laser printers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Xerox ColorQube 8580N Color Solid Ink Printer 8580/N in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Xerox ColorQube 8580N Color Solid Ink Printer 8580/N:
Specifications
Performance
Printing Technology Solid ink
Maximum Resolution Xerox 2400 FinePoint
Print Speed Fast Color: 51 ppm
Standard: 30 ppm
Enhanced: 19 ppm
High Resolution: 6 ppm
First Print Out Speed 5 seconds (color)
Print Color CMYK (cyan, magenta, yellow, black)
Duplex Printing No
Printer Duty Cycle Monthly: 85,000 pages
Print Features Color by words, RAM collation, smart duplex, Earth Smart Driver settings, bi-direction drivers, booklet printing, watermarks, N-up printing, graphical ink gauge, run black
Media Handling
Paper Handling Multipurpose tray
Input tray
Output tray
Paper Types Plain paper, transparencies, envelopes, labels, glossy paper, custom-size paper, punched, card/cover stock
Paper Sizes Multipurpose Tray: 3 x 5" to 8.5 x 14" (7.6 x 12.7 cm to 21.6 x 35.6 cm)
Input Tray: 3.9 x 8.3" to 8.5 x 14" (9.9 x 21.1 cm to 21.6 x 35.6 cm)
Media Weight Multipurpose Tray: 16-80 lb cover (60-220 gsm)
Input Tray: 16-80 lb cover (60-220 gsm)
Paper Capacity Multipurpose Tray: 100 sheets
Input Tray: 525 sheets
Output Tray: 350 sheets
Connectivity
Interface USB 2.0
10/100/1000Base-T Ethernet
Mobile Printing Features Apple AirPrint, Xerox PrintBack, Mopria certified
OS Compatibility Windows XP, Server 2003, Server 2008, Vista, 7
Mac OS X 10.7 or later
Sun MicroSystems Solaris 9, 10
Novell NetWare 5.x, 6.x Open Enterprise Server
UNIX
Linux Red Hat Enterprise 4
Fedora Core 1, 5
SUSE 10.x, 11.x
IBM AIX 5
HP-UX 11.0/11i
Xerox Global Print Driver
Xerox Mobile Express Driver
Walk-Up Printer Drivers
Print Languages True Adobe PostScript 3, PCL 5c emulation, Direct PDF, JPEG, TIFF, and PNG
Processor 1 GHz
Memory Standard: 1 GB
Maximum: 2 GB
Network Security SSLv3, 802.1X, HTTPS, IPPS, SMTP Authentication, IP Filtering, Audit log
Device Management Xerox CentreWare Internet Services, Xerox CentreWare Web WebJet Admin Interface, Tivoli, Bonjour, Xerox PhaserSMART, Xerox PrintingScout
General Attributes
Power Requirements 100-240 VAC, 50-60 Hz
Power Consumption Average: 252 W
Standby: 104 W
Sleep Mode: 45 W
Certifications Certified to UL 60950-1/CSA 60950-1-07, 2nd Edition, FCC Part 15 Class A, Low Voltage Directive 2006/95/EC, EN 60950-1, 2nd Edition, EMC Directive 2004/108/EC, EN 55024, ROHS Directive 2002/95/EC, 508 Compliance, GOST EN55022 Class A, Mopria certified, ENERGY STAR, TAA compliant
Acoustic Noise Printing: <59 db(a)
Standby: <31 dB(A)
Operating Conditions Temperature: 50 to 90°F (10 to 32°C)
Humidity: 10 to 80%, relative
Dimensions 16.0 x 20.5 x 14.5" (40.6 x 52.1 x 36.8 cm)
Weight 60.5 lb (27.4 kg)
Packaging Info
Package Weight 71.8 lb
Box Dimensions (LxWxH) 26.0 x 22.0 x 21.0"
The user manual for the Xerox ColorQube 8580N Color Solid Ink Printer 8580/N can be downloaded in .pdf format if it did not come with your new laser printers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Xerox users keep a unique electronic library for Xerox laser printerss, where you can use our link to download the user manual for the Xerox ColorQube 8580N Color Solid Ink Printer 8580/N.

The user manual lists all of the functions of the Xerox ColorQube 8580N Color Solid Ink Printer 8580/N, all the basic and advanced features and tells you how to use the laser printers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Xerox service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Xerox ColorQube 8580N Color Solid Ink Printer 8580/N. User manuals are also available on the Xerox website under Computers & Solutions - Printers & Accessories - Laser Printers.
