User manual for the Yamaha MG12 - 12-Input Mixer MG12
The user manual for the Yamaha MG12 - 12-Input Mixer MG12 provides
necessary instructions for the proper use of the product Pro Audio - Recording - Analog Recording Mixers.

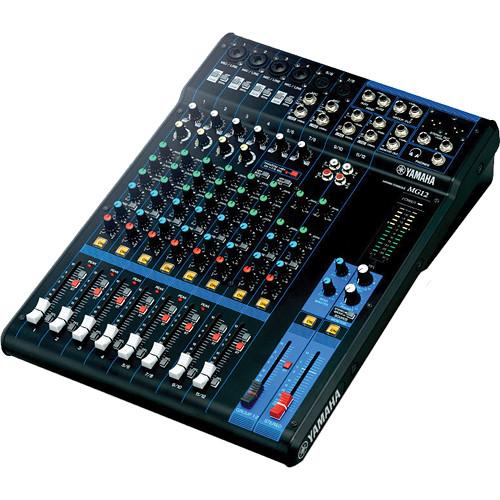

The MG12 from Yamaha is a compact mixer capable of twelve simultaneous inputs that is ideal for performances, recordings lectures and more. The mixer features four mono mic/line combo input channels, two stereo line input channels that can also be used as mono mic or line inputs (XLR and stereo 1/4" inputs), and two stereo line inputs with 1/4" and RCA jacks.
Channels 1-8 are each equipped with D-PRE mic preamps, 3-band EQ, pan control and a high pass filter. The D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. Channels 1-4 each also feature 26dB attenuation switches for use with loud sound sources such as guitar amplifiers and drums.
The MG12 mixer has XLR and TRS stereo outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring, as well as additional TRS 1/4" stereo monitor outs for sending to powered speakers, amplifiers or devices such as digital recorders.
|
If you own a Yamaha analog recording mixers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Yamaha MG12 - 12-Input Mixer MG12 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Yamaha MG12 - 12-Input Mixer MG12:
| Phantom Power | +48 V switchable, channels 1 - 8 | | Input Channels | 4x mono [mic/line]
2x mono/stereo [mic/line]
2x stereo [line] | | Output Channels | 2x stereo out
1x monitor out
1x headphone out
2x aux out 2x group out | | Bus | Stereo: 1
AUX: 2
GROUP: 2 | | Pad | 26 dB (mono) | | HPF | 80 Hz, 12 dB/oct (mono/stereo: MIC only) | | Compressor | Threshold: +22 dBu to -8 dBu
Ratio: 1:1 to 4:1
Output level: 0 dB to 7 dB
Attack time: approx. 25 msec
Release time: approx. 300 msec | | Equalizer | EQ high gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ mid gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
EQ low gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | | LED | Peak LED turns on when post EQ signal reaches 3 dB below clipping | | Level Metering | 2 x 12 - segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] | | Total Harmonic Distortion | 0.03 % @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min, 0.005 % @ +24 dBu (1 kHz), GAIN knob: Min | | Frequency Response | +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min | | Equivalent Input Noise | -128 dBu (mono input channel, Rs: 150 Ω, GAIN knob: max) | | Residual Output Noise | -102 dBu (STEREO OUT, STEREO master fader: min) | | Crosstalk | -78 dB | | Power Requirement | AC 100 - 240 V, 50 / 60 Hz | | Power Consumption | 22 W | | Dimensions | 12.1 x 4.6 x 16.6" (308 x 118 x 422 mm) | | Net Weight | 8.8 lb (4.0 kg) | | Package Weight | 12.65 lb | | Box Dimensions (LxWxH) | 19.1 x 15.5 x 8.0" | |
The user manual for the Yamaha MG12 - 12-Input Mixer MG12 can be downloaded in .pdf
format if it did not come with your new analog recording mixers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Yamaha users keep a unique electronic library
for Yamaha analog recording mixerss,
where you can use our link to download the user manual for the Yamaha MG12 - 12-Input Mixer MG12.
The user manual lists all of the functions of the Yamaha MG12 - 12-Input Mixer MG12,
all the basic and advanced features and tells you how to use the analog recording mixers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Yamaha service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Yamaha MG12 - 12-Input Mixer MG12. User manuals are also
available on the Yamaha website under Pro Audio - Recording - Analog Recording Mixers.
