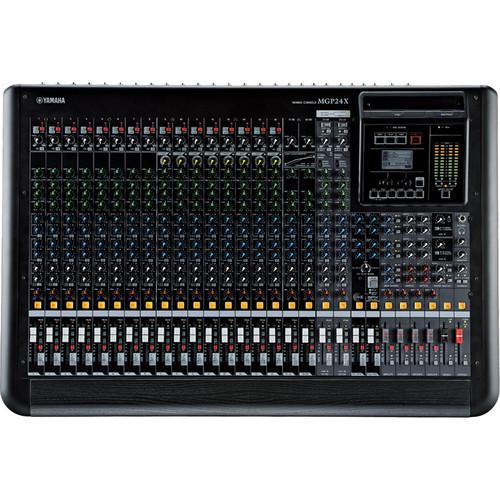

The MGP24X 24-Channel Analog Mixing Console with DSP Effects from Yamaha is a 24-track analog mixer with digital control and features 16 D-Pre microphone preamps, 24 line inputs, 6 auxiliary inputs, and 2 effects sends. It is designed for use in live sound environments, including clubs and houses of worship.
Each channel has Yamaha's X-pressive 3-band equalizer and 1-Knob compressor, allowing channel-independent frequency and dynamic control. The MGP24X has an integrated DSP Hybrid Channel section that includes 3 types of reverb and 16 effects, as well as auto-ducker and auto-leveler functions that allow for hands-off monitoring of sources. The digital portion of the MGP24X also allows for iPhone and iPod touch control of a variety of parameters via the free MGP Editor app. You can also playback music from your iTunes catalog via the iOS input USB port, freeing up an analog input on the console. A second USB port allows you to record your live performance directly to external USB media, as either a stereo WAV or MP3 file.
|
If you own a Yamaha sound reinforcement mixers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Yamaha MGP24X 24-Channel Analog Mixing Console with DSP MGP24X in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Yamaha MGP24X 24-Channel Analog Mixing Console with DSP MGP24X:
| Inputs | 16x Mic level XLRs
16x Line level 1/4" (6.35 mm) TRS
4x Stereo line level 1/4" (6.35 mm) TRS
16x 1/4" (6.35 mm) TRS Inserts
1x 1/4" (6.35 mm) stereo Return | | Input Sensitivity | For Mono Inputs, Actual Source Impedance 3 kΩ:
Mic Level @ -60 dB: -80 dBu (0.078 mV), for 50-600 Ω Mics
Mic Level @ -16 dB: -36 dBu (12.3 mV), for 50-600 Ω Mics
Line Level @ -34 dB: -54 dBu (1.55 mV), for 600 Ω Lines
Line Level @ 10 dB: -10 dBu (245 mV), for 600 Ω Lines
Stereo Channel Input, Actual Source Impedance 10 kΩ:
Line Level @ -34 dB: -54 dBu (1.55 mV), for 600 Ω Lines
Line Level @ 10 dB: -10 dBu (245 mV), for 600 Ω Lines
Mono Channel Inserts, Actual Source Impedance 10 kΩ: -20 dBu (77.5 mV), for 600 Ω Lines
Stereo Channel Insert Input L,R, Actual Source Impedance 10 kΩ: -20 dBu (77.5 mV)
Talkback Input, Actual Source Impedance 10 kΩ: -66 dBu (0.389 mV), for 50-600 Ω Mics | | Nominal Input Level | For Mono Inputs, Actual Source Impedance 3 kΩ:
Mic Level @ -60 dB: -60 dBu (0.775 mV), for 50-600 Ω Mics
Mic Level @ -16 dB: 16 dBu (123 mV), for 50-600 Ω Mics
Line Level @ -34 dB: -34 dBu (15.5 mV), for 600 Ω Lines
Line Level @ 10 dB: +10 dBu (2.45 V), for 600 Ω Lines
Stereo Channel Input, Actual Source Impedance 10 kΩ:
Line Level @ -34 dB: -34 dBu (15.5 mV), for 600 Ω Lines
Line Level @ 10 dB: 10 dBu (2.45 V), for 600 Ω Lines
Mono Channel Inserts, Actual Source Impedance 10 kΩ: 0 dBu (0.775 V), for 600 Ω Lines
Stereo Channel Insert Input L,R, Actual Source Impedance 10 kΩ: 0 dBu (0.775 V), for 600 Ω Lines
Talkback Input, Actual Source Impedance 10 kΩ: -50 dBu (2.45 mV), for 50-600 Ω Mics | | Maximum Input Level | For Mono Inputs, Actual Source Impedance 3 kΩ:
Mic Level @ -60 dB: -40 dBu (7.75 mV), for 50-600 Ω Mics
Mic Level @ -16 dB: 4 dBu (1.23 V), for 50-600 Ω Mics
Line Level @ -34 dB: -14 dBu (155 mV), for 600 Ω Lines
Line Level @ 10 dB: 30 dBu (24.5 V), for 600 Ω Lines
Stereo Channel Input, Actual Source Impedance 10 kΩ:
Line Level @ -34 dB: -14 dBu (155 mV), for 600 Ω Lines
Line Level @ 10 dB: 30 dBu (24.5 V), for 600 Ω Lines
Mono Channel Inserts, Actual Source Impedance 10 kΩ: 20 dBu (7.75 V), for 600 Ω Lines
Stereo Channel Insert Input L,R, Actual Source Impedance 10 kΩ: 20 dBu (7.75 V), for 600 Ω Lines
Talkback Input, Actual Source Impedance 10 kΩ: -30 dBu (24.5 mV), for 50-600 Ω Mics | | Outputs | 1x XLR Stereo out (L,R)
6x XLR auxiliary sends
16x 1/4" (6.35 mm) Channel insert outputs
1x 1/4" (6.35 mm) Monitor out (L,R)
4x 1/4" (6.35 mm) Group out
1x 1/8" (3.5 mm) headphones out
1x 1/4" (6.35 mm) Stereo insert (L,R)
2x 1/4" (6.35 mm) Matrix outs
1x XLR Mono out | | Nominal Output Level | Stereo Out (L,R): 4 dBu (1.23 V) @ 75 Ω (for use with nominal 600 Ω lines)
Mono Out: 4 dBu (1.23 V) @ 75 Ω (for use with nominal 600 Ω lines)
Group Out (1 to 4): 4 dBu (1.23 V) @ 150 Ω (for use with nominal 10 kΩ lines)
Aux Send (1 to 6): 4 dBu (1.23 V) @ 75 Ω (for use with nominal 600 Ω lines)
Matrix Out (1,2): 4 dBu (1.23 V) @ 150 Ω (for use with nominal 10 kΩ lines)
Mono Channel Insert Out (1 to 16): 0 dBu (0.775 V) @ 75 Ω (for use with nominal 10 kΩ lines)
Stereo Channel Insert Out (L,R): 0 dBu (0.775 V) @ 75 Ω (for use with nominal 10 kΩ lines)
Monitor Out (L,R): 4 dBu (1.23 V) @ 150 Ω (for use with nominal 10 kΩ lines)
Phones Out: 3mW @ 150 Ω (for use with nominal 40 Ω phones) | | Maximum Output Level | Stereo Out (L,R): 24 dBu (12.3 V) @ 75 Ω (for use with nominal 600 Ω lines)
Mono Out: 24 dBu (12.3 V) @ 75 Ω (for use with nominal 600 Ω lines)
Group Out (1 to 4): 20 dBu (7.75 V) @ 150 Ω (for use with nominal 10 kΩ lines)
Aux Send (1 to 6): 24 dBu (12.3 V) @ 75 Ω (for use with nominal 600 Ω lines)
Matrix Out (1,2): 20 dBu (7.75 V) @ 150 Ω (for use with nominal 10 kΩ lines)
Mono Channel Insert Out (1 to 16): 20 dBu (7.75 V) @ 75 Ω (for use with nominal 10 kΩ lines)
Stereo Channel Insert Out (L,R): 20 dBu (7.75 V) @ 75 Ω (for use with nominal 10 kΩ lines)
Monitor Out (L,R): 20 dBu (7.75 V) @ 150 Ω (for use with nominal 10 kΩ lines)
Phones Out: 75 mW @ 150 Ω (for use with nominal 40 Ω phones) | | Total Harmonic Distortion | 0.02% (20 Hz to 20 kHz, 14 dBu) | | Frequency Response | 20 Hz to 20 kHz, +0.5/-1.0 dB, refer to the nominal output level @ 1 kHz | | Crosstalk | -74 dB @ 1 kHz | | Power Supply | 100 to 240 V, 50/60 Hz | | Power Consumption | 76 W, maximum | | Dimensions (W x H x D) | 32.2 x 6.7 x 22.2" (819 x 169 x 565 mm) | | Weight | 34.2 lb (15.5 kg) | | Package Weight | 49.4 lb | | Box Dimensions (LxWxH) | 37.0 x 27.5 x 10.0" | |
