User manual Yamaha MOTIF XF7 Workstation Keyboard MOTIFXF7

Operating instructions and pdf manual for use - Yamaha MOTIF XF7 Workstation Keyboard MOTIFXF7 User manual, User manual Yamaha MOTIF XF7 Workstation Keyboard MOTIFXF7, Yamaha, MOTIF, XF7, Workstation, Keyboard, MOTIFXF7, Video


User manual for Yamaha MOTIF XF7 Workstation Keyboard MOTIFXF7

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

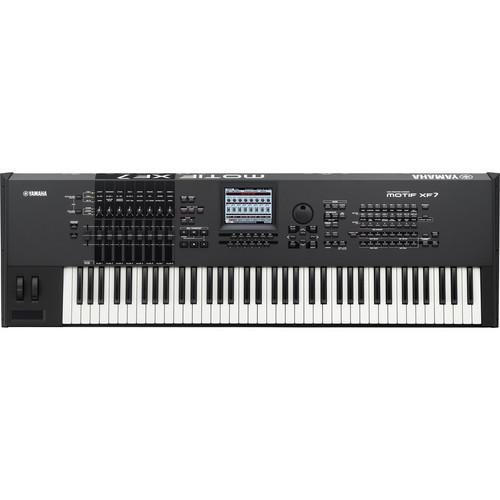

Yamaha  MOTIF XF7 Workstation Keyboard MOTIFXF7
  • Manufacturer: Yamaha
  • Basic description and contents of package
  • Product classification: Pro Audio - Musical Instruments - Synthesizer Keyboards
  • Safety instructions
  • Startup and operation of the synthesizer keyboards
  • Tips for setting up your Yamaha
  • Settings and expert assistance
  • Contact Yamaha service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Yamaha MOTIF XF7 Workstation Keyboard MOTIFXF7, which address similar problems with connecting and setting up Synthesizer Keyboards Yamaha.



User manual for the Yamaha MOTIF XF7 Workstation Keyboard MOTIFXF7

The user manual for the Yamaha MOTIF XF7 Workstation Keyboard MOTIFXF7 provides necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Synthesizer Keyboards.

Yamaha's dedication to quality, professional workstations is evident in the Yamaha MOTIF XF7 Workstation Keyboard. The MOTIF XF7 features 76 keys and a host of improvements for enhanced performance on stage and in the recording studio. Yamaha's own AWM2 Expanded Articulation synthesis engine delivers 1664 voices and 97 drum kits, featuring authentic piano, keyboard, synth, orchestral, wind, string and drum sounds for all styles of music production.
If you own a Yamaha synthesizer keyboards and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Yamaha MOTIF XF7 Workstation Keyboard MOTIFXF7 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Yamaha  MOTIF XF7 Workstation Keyboard MOTIFXF7Download user manual for Yamaha MOTIF XF7 Workstation Keyboard MOTIFXF7
(PDF file, 11.69 MB)
Additional parameters of the Yamaha MOTIF XF7 Workstation Keyboard MOTIFXF7:
Specifications
    Keyboard 76 Keys
    FSX Keyboard
    Initial Touch/Aftertouch
    Polyphony 128 Notes
    Multitimbral 16 Parts (internal), Audio Input Parts (A/D, FW) 1 stereo Part
    Synthesis Method AWM2, with Expanded Articulation
    Presets Preset: 1,024 Normal Voices + 64 Drum
    Kits GM: 128 Normal Voices + 1 Drum Kit
    User: 128 x 4 (Bank 1: original, Bank 2 - 4: selected and copied from Preset bank) + 32 Drum Kits (No. 1 - 8: original, No. 9 - 32: selected and copied from Preset bank)
    Sequencer Note Resolution: 480 ppq (parts per quarter note)
    Patterns: 64 Patterns (x 16 sections), Measures: 256 maximum Mixing Voices: 16 Voices per Pattern and up to 256 Voices for all Patterns Mixing Templates: 32 for all Songs and Patterns
    Sequence Formats: Original format, SMF format 0, 1 (Format 1 load only)
    Note Capacity: Approx. 130,000 notes
    Maximum Polyphony: 124 Notes
    Song Recording: Real time replace Real time overdub (with the exception of the Pattern Chain) Real time punch in/out (Song only)
    Tempo (BPM): 5 - 300
    Song tracks Pattern: 16 Phrase tracks Pattern Chain: Pattern track, Tempo track, Scene track Song: 16 sequence tracks (Loop on/off can be set for each track), Tempo track, Scene track
    Songs: 64 Songs Mixing Voices: 16 Voices per Song and up to 256 Voices for all Songs Mixing Templates: 32 for all Songs and Patterns
    User Phrases: 256 per Pattern
    Arpeggio Preset: 7,881 types User: 256 types *MIDI Sync, MIDI transmit/receive channel, Velocity Limit, and Note Limit can be set.
    Scene Memory: 5 per Song
    Effects Reverb x 9 types, Chorus x 22 types, Insertion (A, B) x 53 types x 8 Parts (up to 16 units), Vocoder x 1 (uses both Insertion Effect A and B blocks), Master Effect x 9 types (Preset settings for parameters of each effect type are provided as templates; total 320) Master EQ (5 bands), Part EQ (3 bands, stereo)
    Controllers Pitch Bend wheel, Modulation wheel, Ribbon Controller, Assignable Control Sliders x 8, Assignable Knobs x 8, Assignable Function buttons x 2, Data dial
    Sample RAM 128MB Internal
    Samples Up to 128 Waveforms (Multi Samples)
    Up to 256 Key Banks per Waveform
    Up to 512 Key Banks
    Sample Format Original format, WAV, AIFF
    Inputs/Outputs OUTPUT L/MONO, R (standard phone jack)
    ASSIGNABLE OUTPUT L, R (standard phone jack) A/D INPUT L, R (standard phone jack)
    DIGITAL OUT PHONES (standard stereo phone jack)
    FOOT CONTROLLER 1, 2
    FOOT SWITCH x 2 (SUSTAIN, ASSIGNABLE)
    MIDI IN/OUT/THRU USB (TO HOST, TO DEVICE)
    AC IN ETHERNET (100BASE-TX) IEEE1394 (available when the FW16E has been installed)
    Display 320 x 240 dot, 5.7 inch graphic color backlit LCD
    Dimensions 49-1/4 x 4-3/4 x 15-3/8" (1252 x 122 x 391mm)
    Weight 37.92lb (17.2kg)
    Packaging Info
    Package Weight 46.15 lb
    Box Dimensions (LxWxH) 56.0 x 19.0 x 9.5"
    The user manual for the Yamaha MOTIF XF7 Workstation Keyboard MOTIFXF7 can be downloaded in .pdf format if it did not come with your new synthesizer keyboards, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Yamaha users keep a unique electronic library for Yamaha synthesizer keyboardss, where you can use our link to download the user manual for the Yamaha MOTIF XF7 Workstation Keyboard MOTIFXF7.

    The user manual lists all of the functions of the Yamaha MOTIF XF7 Workstation Keyboard MOTIFXF7, all the basic and advanced features and tells you how to use the synthesizer keyboards. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Yamaha service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Yamaha MOTIF XF7 Workstation Keyboard MOTIFXF7. User manuals are also available on the Yamaha website under Pro Audio - Musical Instruments - Synthesizer Keyboards.
