User manual for the Yamaha MS101III - 10W 4" Powered Monitor MS101III
The user manual for the Yamaha MS101III - 10W 4" Powered Monitor MS101III provides
necessary instructions for the proper use of the product Pro Audio - Recording - Studio Monitors.

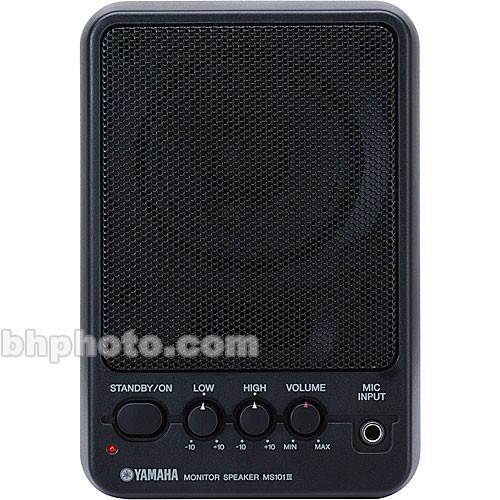

The MS101III from Yamaha is a compact powered monitor speaker perfect for use with a computer for viewing movies, playing video games, or for basic audio editing and mixing applications. The 4-inch driver is housed in a bass-reflex enclosure and offers a smooth frequency response of 75Hz to 18kHz. A special internal equalizer boosts bass response while maintaining clarity.
Independent high and low EQ controls on the front panel allow you to adjust the monitor to your listening space. Two line inputs are provided, one RCA connector and one 1/4" mono phone jack for compatibility with virtually any audio device. The MS101III is magnetically shielded so it may be used in close proximity with video monitors without worry.
|
If you own a Yamaha studio monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Yamaha MS101III - 10W 4" Powered Monitor MS101III in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Yamaha MS101III - 10W 4" Powered Monitor MS101III:
| Low Frequency Driver | 4" (100 mm) Full-Range Driver | | LF Amplifier | 10W of Output Power | | Frequency Range | 75Hz - 18kHz | | Maximum Sound Pressure Level (SPL) | Not Specified by Manufacturer | | Connectors | 1 x RCA Line Input (Rear)
1 x 1/4" (6.3mm) Line Input (Rear)
1 x 1/4" (6.3mm) Mic Input (Front)
1 x 1/4" (6.3mm) Line Output (Rear) | | Input Impedance | Not Specified by Manufacturer | | Controls and Indicators | 1 x Power Switch
1 x Red Power LED
1 x Low Frequency Level Control Knob
1 x High Frequency Level Control Knob
1 x Main Volume Control Knob | | Shielded | Yes | | Dimensions (HxWxD) | 8.4 x 5.75 x 7.6" (214 x 147 x 192 mm) | | Weight | 4.8 lbs (2.2 kg) | | Package Weight | 7.8 lb | | Box Dimensions (LxWxH) | 12.9 x 10.6 x 9.2" | |
The user manual for the Yamaha MS101III - 10W 4" Powered Monitor MS101III can be downloaded in .pdf
format if it did not come with your new studio monitors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Yamaha users keep a unique electronic library
for Yamaha studio monitorss,
where you can use our link to download the user manual for the Yamaha MS101III - 10W 4" Powered Monitor MS101III.
The user manual lists all of the functions of the Yamaha MS101III - 10W 4" Powered Monitor MS101III,
all the basic and advanced features and tells you how to use the studio monitors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Yamaha service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Yamaha MS101III - 10W 4" Powered Monitor MS101III. User manuals are also
available on the Yamaha website under Pro Audio - Recording - Studio Monitors.
