User manual Yamaha RX-S601 5.1-Channel Slim Network A/V Receiver RX-S601BL

Operating instructions and pdf manual for use - Yamaha RX-S601 5.1-Channel Slim Network A/V Receiver RX-S601BL User manual, User manual Yamaha RX-S601 5.1-Channel Slim Network A/V Receiver RX-S601BL, Yamaha, RX-S601, 5.1-Channel, Slim, Network, A/V


User manual for Yamaha RX-S601 5.1-Channel Slim Network A/V Receiver RX-S601BL

Yamaha RX-S601 5.1-Channel Slim Network A/V Receiver RX-S601BL
  • Manufacturer: Yamaha
  • Basic description and contents of package
  • Product classification: TVs & Entertainment - Receivers & Amplifiers - Receivers
  • Safety instructions
  • Startup and operation of the receivers
  • Tips for setting up your Yamaha
  • Settings and expert assistance
  • Contact Yamaha service
  • Troubleshooting
  • Warranty information
  • Price: 600 USD
We recommend checking out our discussion threads on the Yamaha RX-S601 5.1-Channel Slim Network A/V Receiver RX-S601BL, which address similar problems with connecting and setting up Receivers Yamaha.



User manual for the Yamaha RX-S601 5.1-Channel Slim Network A/V Receiver RX-S601BL

The user manual for the Yamaha RX-S601 5.1-Channel Slim Network A/V Receiver RX-S601BL provides necessary instructions for the proper use of the product TVs & Entertainment - Receivers & Amplifiers - Receivers.

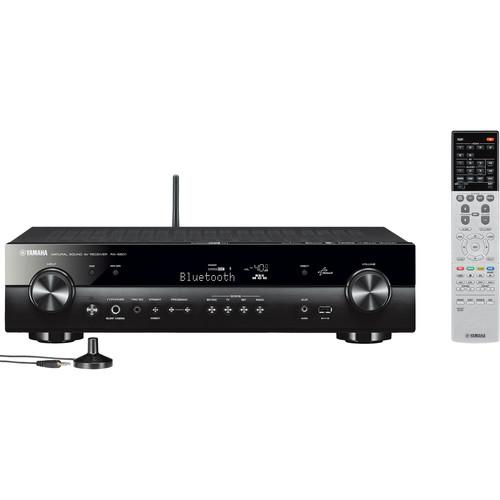

The black Yamaha RX-S601 5.1-Channel Slim Network A/V Receiver delivers powerful multi-channel audio and wireless connectivity in a compact package. This receiver can produce up to 60W per channel in stereo mode at 6 ohms and features a discrete amplifier design for enhanced sound quality. Yamaha YPAO technology is onboard to help you tailor the sound of the receiver to your listening space with the included setup microphone. Built-in AirPlay and Bluetooth enables the receiver to wirelessly stream music from similarly equipped audio sources, such as smartphones and tablets. Integrated MusicCast connectivity allows you to add additional MusicCast-enabled audio for multiroom music playback.

Built-in 3D and 4K pass-through allows you to connect 3D and 4K video sources to the receiver without signal loss. Six HDMI inputs are onboard for connecting high-definition video and audio sources. There is also an HDMI output for displaying video on an external display. Additionally, this slim receiver can decode high-resolution surround sound formats such as Dolby TrueHD and DTS-HD Master Audio. At just 4.4" high, the RX-S601 was designed for easy placement in your home theater environment.
If you own a Yamaha receivers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Yamaha RX-S601 5.1-Channel Slim Network A/V Receiver RX-S601BL in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Yamaha RX-S601 5.1-Channel Slim Network A/V Receiver RX-S601BLDownload user manual for Yamaha RX-S601 5.1-Channel Slim Network A/V Receiver RX-S601BL
(PDF file, 8.43 MB)
Additional parameters of the Yamaha RX-S601 5.1-Channel Slim Network A/V Receiver RX-S601BL:
Specifications
Main Unit
Nominal Output Levels Rated Output Power (1 kHz, 1-ch driven):
95 W (6 ohms, 0.9% THD)
Rated Output Power (20 Hz - 20 kHz, 2-ch driven):
60 W (6 ohms, 0.09% THD)
Dynamic Power per Channel 8/6/4/2 Ohms: 90/110/140/160 W
Channels 5.1
DAC Type Burr-Brown 192 kHz/24-bit DACs for all channels
Audio Delay 0 - 500 ms
Tuner FM / AM
Surround Sound Cinema DSP (3D), DSP Programs (17), Silent Cinema, Virtual Presence Speaker, Virtual Cinema Front, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio
Video
Pass-Through 3D, 4K
Upscaling None
Conversion None
Deep Color / x.v. Color Support Yes
HDCP Version 2.2
Functionality Auto lip sync, 24 Hz support
Connectivity
Bluetooth Yes (AAC)
AirPlay Yes
Wi-Fi Yes (with Wi-Fi Direct)
Inputs 6 x HDMI
1 x Optical
2 x Digital coaxial
3 x Composite video
3 x Stereo RCA
1 x 1/8" (3.5 mm) auxiliary (front)
1 x USB (front)
Outputs 1 x HDMI
1 x Composite video
1 x Subwoofer pre-out
1 x Headphones (front)
Other Ports
1 x LAN
1 x YPAO microphone (front)
1 x FM tuner antenna
1 x AM tuner antenna
1 x Wi-Fi antenna terminal
Speaker Connectors Front Left
Front Right
Center
Surround Left/Zone 2/Bi-amp
Surround Right/Zone 2/Bi-amp
HDMI CEC Yes
Audio Return Channel (ARC) Yes
General
Power Consumption Standby (IR Only): ≤0.1 W
On-Screen Display Yes (color)
Dimensions (W x H x D) Receiver: 17.1 x 4.4 x 12.9" / 43.4 x 11.2 x 32.8 cm
With Antenna Up: 17.1 x 6.9 x 12.9" / 43.4 x 17.5 x 32.8 cm
Weight 17.2 lb / 7.8 kg
Packaging Info
Package Weight 21.2 lb
Box Dimensions (LxWxH) 20.6 x 15.8 x 7.2"
The user manual for the Yamaha RX-S601 5.1-Channel Slim Network A/V Receiver RX-S601BL can be downloaded in .pdf format if it did not come with your new receivers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Yamaha users keep a unique electronic library for Yamaha receiverss, where you can use our link to download the user manual for the Yamaha RX-S601 5.1-Channel Slim Network A/V Receiver RX-S601BL.

The user manual lists all of the functions of the Yamaha RX-S601 5.1-Channel Slim Network A/V Receiver RX-S601BL, all the basic and advanced features and tells you how to use the receivers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Yamaha service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Yamaha RX-S601 5.1-Channel Slim Network A/V Receiver RX-S601BL. User manuals are also available on the Yamaha website under TVs & Entertainment - Receivers & Amplifiers - Receivers.
