User manual for the Yamaha STAGEPAS 400i Portable PA System STAGEPAS 400I
The user manual for the Yamaha STAGEPAS 400i Portable PA System STAGEPAS 400I provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Portable PA Systems.

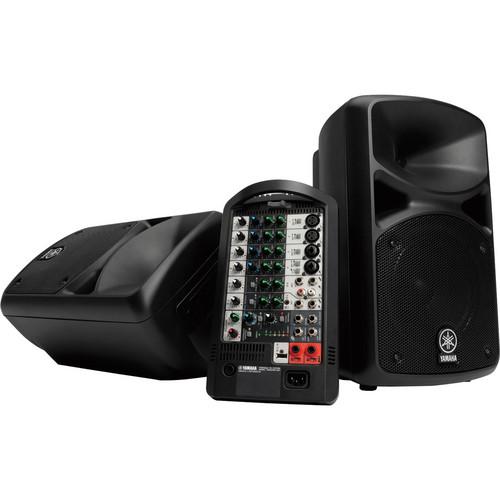

The Yamaha STAGEPAS 400i Portable PA System includes an eight-channel mixer/amplifier, dual two-way bass reflex speakers, two speaker cables, a power cord, 12 non-skid pads, and a cover panel. It is capable of producing up to 400-watts of output. The system has a portable design with the mixer attaching to the rear of one of the speakers for transport and storage.
The eight-channel mixer includes a variety of analog and digital input options, including two XLR inputs, two combination XLR/TRS inputs, four 1/4" instrument inputs, stereo RCA inputs, a 1/8" stereo auxiliary input, and a USB port for playing back audio from your iOS device. It has four mono channels and two mono/stereo channels, each of which has its own 2-band high and low EQs. The mixer also includes two outputs for connecting to optional monitors and an output for an optional subwoofer.
The two speakers each have an eight-inch low frequency cone driver and a one-inch voice coil compression driver. They each have a 34.8 to 35.2mm pole socket with StageLok connector to simplified set-up and breakdown.
|
If you own a Yamaha portable pa systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Yamaha STAGEPAS 400i Portable PA System STAGEPAS 400I in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Yamaha STAGEPAS 400i Portable PA System STAGEPAS 400I:
| Channels | 8 | | Inputs | 2x XLR-3-31 Mic/Line Inputs
2x Combo XLR/TRS Mic/Line Inputs
4x 1/4" (6.35 mm) Inputs
2x RCA Inputs
1x 1/8" (3.5 mm) Stereo Mini Input
1x 1/4" (6.35 mm) Footswitch Input
1x USB Port | | Input Impedance | XLR: 3 kΩ (Source Impedance: 150 Ω Mics)
1/4": 10 kΩ (Source Impedance: 150 Ω Mics)
Hi-Z: 1 MΩ (Source Impedance: 10 kΩ Hi-Z)
RCA: 10 kΩ
1/8" Stereo Mini: 10 kΩ | | Input Sensitivity | XLR Mic Level: - 56 dBu
XLR Line Level: -30 dBu
1/4" Mic Level: -50 dBu
1/4" Line Level: -24 dBu
RCA: -24 dBu
1/8" Stereo Mini: -24 dBu | | Input Level | Nominal:
XLR Mic Level: -35 dBu
XLR Line Level: -9 dBu
1/4" Mic Level: - 29 dBu
1/4" Line Level: -3 dBu
RCA: -3 dBu
1/8" Stereo Mini: -3 dBu
Maximum Before Clipping:
XLR Mic Level: -10 dBu
XLR Line Level: 16 dBu
1/4" Mic Level: -4 dBu
1/4" Line Level: 22 dBu
RCA: 22 dBu
1/8" Stereo Mini: 22 dBu | | Outputs | 2x 1/4" (6.35 mm) Speaker Outputs
1x 1/4" (6.35 mm) Subwoofer Outputs
2x 1/4" (6.35 mm) Monitor Outputs | | Output Impedance | Speaker Outs: < 0.1 Ω
Monitor Outs: 600 Ω
Subwoofer Outs: 150 Ω | | Load Impedance | Speaker Outs: 4 Ω Speakers
Monitor Outs: 10 kΩ Lines
Subwoofer Outs: 10 kΩ Lines | | Output Level | Nominal:
Monitor Outs: 4 dBu
Subwoofer Outs: -3 dBu
Maximum Before Clipping:
Monitor Outs: 20 dBu
Subwoofer Outs: 17 dBu
Dynamic:
Speaker Outs: 200 W | | Total Harmonic Distortion/Noise | Speaker Outs: 180 W (10 %) | | EQ Type | 1x High Shelf @ 8 kHz
1x Low Shelf @ 100 Hz | | Functions | Channel 4: Hi-Z Switch
Channels 5/6: Stereo/Mono Switch
Channels 7/8: Stereo/Mono Switch | | Processing | Output: Feedback Suppressor, 1-Knob Master EQ | | Phantom Power | Channels 1/2: 30 V | | Amplifier | Dynamic Power Rating: 400 W (200 W + 200 W)
Continuous Power Rating: 360 W (180 W + 180 W) | | Type | Two-Way Bass Reflex Speakers | | Transducer | LF: 1x 8" (20 cm) Cone
HF: 1x 1" (2.54 cm) Voice Coil Compression Driver | | Coverage Angle | Horizontal x Vertical: 90° x 60°
Floor Monitor Angle: 50° | | Pole Socket | 1.37 to 1.38" (34.8 to 35.2 mm) with StageLok | | System Type | Powered Mixer with 2 Passive Speakers | | Maximum SPL | 125 dB SPL Per Speaker | | Frequency Range | 55 Hz to 20 kHz | | Power Consumption | Idle: 30 W
1/8 Power: 70 W | | Power Requirements | 100 V - 240 V, 50 Hz/60Hz | | Dimensions (W x H x D) | Speaker: 11 x 19 x 10" (289 x 472 x 275 mm)
Mixer: 12 x 7 x 5" (308 x 180 x 116 mm) | | Weight | Total: 39.2 lb (17.8 kg)
Speaker: 16.5 lb (7.5 kg)
Mixer: 6.1 lb (2.8 kg) | | Package Weight | 49.2 lb | | Box Dimensions (LxWxH) | 27.0 x 22.0 x 15.0" | |
The user manual for the Yamaha STAGEPAS 400i Portable PA System STAGEPAS 400I can be downloaded in .pdf
format if it did not come with your new portable pa systems, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Yamaha users keep a unique electronic library
for Yamaha portable pa systemss,
where you can use our link to download the user manual for the Yamaha STAGEPAS 400i Portable PA System STAGEPAS 400I.
The user manual lists all of the functions of the Yamaha STAGEPAS 400i Portable PA System STAGEPAS 400I,
all the basic and advanced features and tells you how to use the portable pa systems.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Yamaha service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Yamaha STAGEPAS 400i Portable PA System STAGEPAS 400I. User manuals are also
available on the Yamaha website under Pro Audio - Live Sound - Portable PA Systems.
