User manual Yamaha TF1 Digital Mixing Console TF1

Operating instructions and pdf manual for use - Yamaha TF1 Digital Mixing Console TF1 User manual, User manual Yamaha TF1 Digital Mixing Console TF1, Yamaha, TF1, Digital, Mixing, Console, TF1, Video


User manual for Yamaha TF1 Digital Mixing Console TF1

Yamaha  TF1 Digital Mixing Console TF1
  • Manufacturer: Yamaha
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Digital Mixers
  • Safety instructions
  • Startup and operation of the digital mixers
  • Tips for setting up your Yamaha
  • Settings and expert assistance
  • Contact Yamaha service
  • Troubleshooting
  • Warranty information
Yamaha  TF1 Digital Mixing Console TF1 Yamaha  TF1 Digital Mixing Console TF1 Yamaha  TF1 Digital Mixing Console TF1 Yamaha  TF1 Digital Mixing Console TF1 Yamaha  TF1 Digital Mixing Console TF1 Yamaha  TF1 Digital Mixing Console TF1
Click to enlarge image

We recommend checking out our discussion threads on the Yamaha TF1 Digital Mixing Console TF1, which address similar problems with connecting and setting up Digital Mixers Yamaha.



User manual for the Yamaha TF1 Digital Mixing Console TF1

The user manual for the Yamaha TF1 Digital Mixing Console TF1 provides necessary instructions for the proper use of the product Pro Audio - Recording - Digital Mixers.

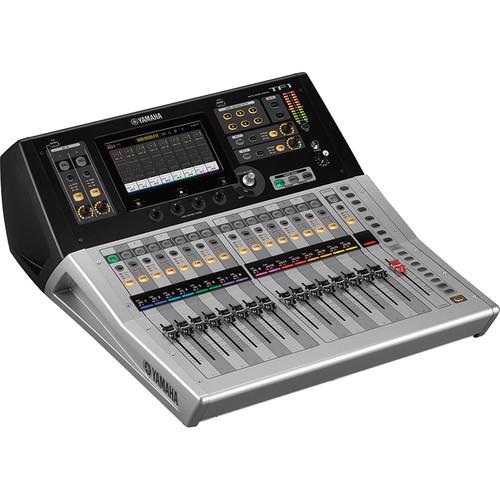

The Yamaha TF1 is a rack-mountable digital audio mixing console that features a touchscreen display, 17 motorized faders, and is expandable up to 40 input channels by adding the optional Tio1608-D I/O rack. Ideal for a multitude of live sound reinforcement scenarios, the TF1 can also be used for live recording, offering 34 x 34 channel digital recording and playback via USB 2.0 using a computer and your preferred DAW software, and 2 x 2 channel recording and playback using any USB storage device.

The TF1 console itself provides 16 analog XLR/TRS combo mic/line inputs with 48V phantom power, as well as 2 analog RCA stereo line inputs, and 16 analog XLR outputs. Each combo input channel features a recallable D-PRE microphone preamp, as well EQ and two dynamics processors. In addition, the console offers eight powerful FX processors with patches ranging from reverb and delay, to modulation effects such as flanger and chorus, to utility processing like 3-band multi-band compression.
If you own a Yamaha digital mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Yamaha TF1 Digital Mixing Console TF1 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Yamaha TF1 Digital Mixing Console TF1:
Faders 17
Mixer Input Channels: 40 (32 mono + 2 stereo + 2 return)
Aux Buses: 20 (8 mono + 6 stereo)
Stereo Buses: 1
Sub Buses: 1
Input Channel Functions: 8 DCA Groups
I/O Inputs: 16 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)
Outputs: 16 (XLR)
Expansion Slots: 1
DSP 8 effects + 10 GEQ
USB 34 x 34 USB audio interface, 2-track recording via USB storage device
Sampling Frequency 48 kHz, internal
Signal Delay Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
Faders 100 mm motorized, resolution = 10-bit, +10 to -138 dB, -∞ dB all faders
Total Harmonic Distortion Less than 0.05% 20 Hz - 20 kHz @ +4 dBu into 600 ohms, INPUT to OMNI OUT, input gain = min. (measured with a -18 dB/octave filter @ 80 kHz)
Frequency Response +0.5, -1.5 dB 20 Hz - 20 kHz, refer to +4 dBu output @ 1 kHz, INPUT to OMNI OUT
Dynamic Range 110 dB typ., DA converter, 107 dB typ., INPUT to OMNI OUT, input gain = min
Noise Equivalent Input Noise:-128 dBu typ., input gain = max. (measured with an A-weight filter)
Residual output noise:-85 dBu, ST master off (measured with an A-weight filter)
Crosstalk -100 dB (measured with a -30 dB/octave filter @ 22 kHz), adjacent INPUT/OMNI OUT channels, input gain = min
Power Requirements 100 - 240 V 50/60 Hz
Power Consumption 100 W
Analog Inputs Input Terminals: INPUT 1-16, ST IN 1,2
GAIN: -6 dB / +66 dB (INPUT 1-16)
Load Impedance: 7.5 kOhms (INPUT 1-16); 10 kOhms (ST IN 1,2)
For Use With Nominal: 50 - 600 ohm mics or 600 ohm lines (INPUT 1-16); 600 ohm lines (ST IN 1,2)
Sensitivity: -82 dBu (61.6 V), -10 dBu (245 mV) (INPUT 1-16); -30 dBV (31.6 V) (ST IN 1,2)
Nominal: -62 dBu (0.616 mV), +10 dBu (2.45 V) (INPUT 1-16); -10 dBV (316 mV) (INPUT 1-16)
Max. Before Clip: -42 dBu (6.16 mV), +30 dBu (24.5 V) (INPUT 1-16); +10 dBV (3.16 V) (ST IN 1,2)
Connector: Combo Jack (XLR-3-31 type or TRS phone) balanced (INPUT 1-16); RCA pin jack unbalanced (ST IN 1,2)
Analog Outputs Output Terminals: OMNI OUT 1-16, PHONES
Source Impedance: 75 ohms (OMNI OUT 1-16); 100 ohms (PHONES)
For Use With Nominal: 600 ohm lines (OMNI OUT 1-16); 40 ohms (PHONES)
GAIN SW: +24 dBu position (default) (OMNI OUT 1-16)
Nominal Output Level: +4 dBu (1.23 V) (OMNI OUT 1-16); 3 mW (PHONES)
Max. Output Level Before Clip: +24 dBu (12.3 V) (OMNI OUT 1-16); 75 mW (PHONES)
Connector: XLR-3-32 type balanced (OMNI OUT 1-16); stereo phone jack (TRS) unbalanced (PHONES)
Digital Input/Output Terminals: USB (TO HOST), iPad
Format: USB
Data length 24-bit (USB TO HOST)
Audio: 34 ch input / 34 ch output, PCM (USB TO HOST); Playback: MP3 or WAV file data / Record: WAV file data (iPad)
Connector: USB (B type) (USB TO HOST); USB (A type) (iPad)
Control I/O Terminals: NETWORK, FOOT SW
Format:IEEE802.3 (NETWORK)
Level: 10BASE-T/100Base-TX (NETWORK)
Connector: RJ-45 (NETWORK); TS Phone (FOOT SW )
Dimensions 20.1 x 8.9 x 23.6" (510 x 225 x 599 mm)
Net Weight 29.8 lb (13.5 kg)
Packaging Info
Package Weight 42.5 lb
Box Dimensions (LxWxH) 28.0 x 24.5 x 12.75"
The user manual for the Yamaha TF1 Digital Mixing Console TF1 can be downloaded in .pdf format if it did not come with your new digital mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Yamaha users keep a unique electronic library for Yamaha digital mixerss, where you can use our link to download the user manual for the Yamaha TF1 Digital Mixing Console TF1.

The user manual lists all of the functions of the Yamaha TF1 Digital Mixing Console TF1, all the basic and advanced features and tells you how to use the digital mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Yamaha service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Yamaha TF1 Digital Mixing Console TF1. User manuals are also available on the Yamaha website under Pro Audio - Recording - Digital Mixers.
