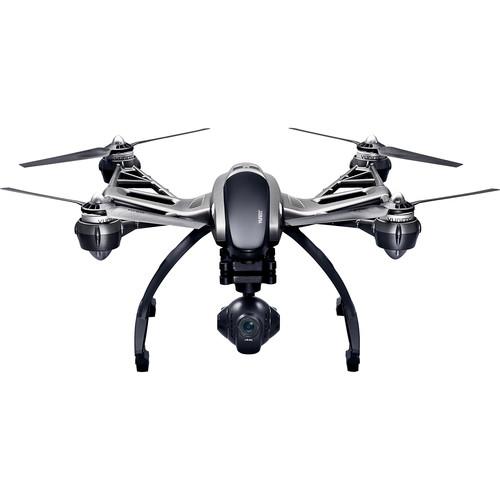

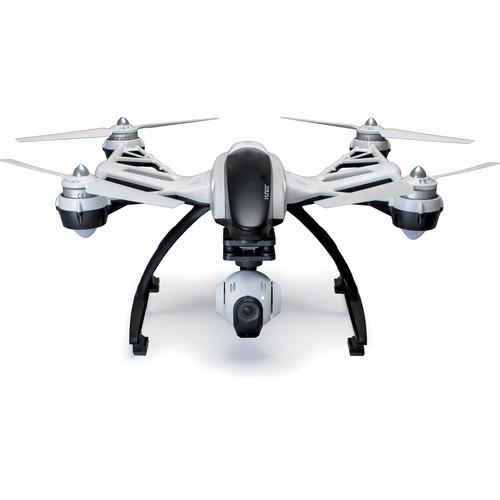

Click to enlarge image
|
We recommend checking out our discussion threads on the YUNEEC Q500 4K Typhoon Quadcopter with CGO3-GB Camera YUNQ4KUS,
which address similar problems with connecting and setting up Aerial Imaging Platforms & Drones YUNEEC.
|
User manual for the YUNEEC Q500 4K Typhoon Quadcopter with CGO3-GB Camera YUNQ4KUS
The user manual for the YUNEEC Q500 4K Typhoon Quadcopter with CGO3-GB Camera YUNQ4KUS provides
necessary instructions for the proper use of the product Camcorders - Aerial Imaging & Drones - Aerial Imaging Platforms & Drones.
A completion level of ready-to-fly (RTF) means this version of the Q500 4K Typhoon Quadcopter with CGO3-GB Camera Camera from Yuneec comes factory-assembled and that a pre-bound transmitter/ground station unit (radio controller) is included. More than just an RC multi-rotor, the Q500 4K Typhoon is designed for APV - aerial photography and video. To this end, it incorporates the CGO3-GB, a 3-axis gimbal-stabilized camera with 4K video recording, 1080p video recording at up to 120 fps, and shoots photos at 12-megapixels.
The Q500 4K Typhoon is bundled with the ST10+ Personal Ground Station, a 10-channel, 2.4 GHz transmitter and 5.8 GHz video receiver rolled into one hand-held unit. In addition to traditional RC joysticks to pilot the quadcopter, there is a built-in Android mobile device which boasts a 5.5" touchscreen - a bump from the original ST10, which has a 4.5" screen. It allows you to view an FPV (first-person view) video image from the camera along with telemetry data superimposed, as well as access settings not available through normal transmitter.
As part of the RTF bundle, if features one 5400mAh flight battery, providing up to 25 minutes flying per charge - depending on wind-resistance and other factors.
|
If you own a YUNEEC aerial imaging platforms & drones and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the YUNEEC Q500 4K Typhoon Quadcopter with CGO3-GB Camera YUNQ4KUS in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the YUNEEC Q500 4K Typhoon Quadcopter with CGO3-GB Camera YUNQ4KUS:
| Flight Time | Up to 25 minutes (depending on flying conditions) | | Maximum Flying Height | 400' / 121.9 m above ground level
Note: Adjustable via the Q500 GUI | | Maximum Rotational Velocity | 65°/s | | Maximum Bank Angle | 35° | | Maximum Climb Rate | Smart and Angle Mode: 9.8 fps / 3 m/s | | Maximum Descent Rate | Smart and Angle Mode: 6.6 fps / 2 m/s | | Takeoff Weight | With Battery and CGO2-GB Camera: 3.7 lb / 1.7 kg | | Model | CGO3-GB | | Focus | Fixed | | Resolution | Video: 4K
1080p at 120, 60, 50 or 48 fps
Photo: 12 MP | | White Balance | Automatic | | Audio | Audio recording via integrated microphone (turn on/off with app) | | File Formats | Photo: JPEG, DNG RAW | | Recording Media | microSDHC/XC Class 10: 4 to 128 GB | | Power Requirements | 7 to 14 VDC (powers from flight battery) | | Temperature | Storage Temperature: -4 to 140°F / -20 to 60°C
Operating Temperature: 32 to 122°F / 0 to 50°C | | Weight | 6.5 oz / 185 g | | Control Angle Accuracy | ±0.02° | | Dimensions | 8.8 x 3 x 7.1" / 223 x 75 x 181 mm | | Weight | Without Camera / Gimbal: 13.9 oz / 395 g | | Frequency | 5.8 GHz | | Range | Up to 984.3' / 300 m line-of-sight | | Transmit Power | 500 mA (average) to 600 mA (peak) at 12 V (7.2 W maximum) | | Capacity | 5400 mAh | | Chemistry | Lithium-polymer | | Voltage | 3S (11.1 V) | | Model | SC 3500-3 Balancing Smart Charger | | Supported Chemistries | Lithium-polymer | | Charge Voltage | 12.6 VDC; 3.5 A / 45 W maximum | | Fuse | 7.5 A | | Power Requirements | 10.5 to 15 VDC; 5 A (100 to 240 VAC adapter included) | | Model | ST10+ Personal Ground Station | | Frequency | Control Channels: 2.4 GHz
Video Receiver: 5.8 GHz | | Channels | 10 | | Flight Modes | Smart
Angle
Home Modes | | Operating System | Android | | Number of Channels | 10 | | Range | Control Signal: Up to 2624.7' / 400 m line-of-sight under optimal conditions | | Display | Size: 5.5"
Interface: Capacitive multi-touch | | OSD | Flight systems telemetry data can be viewed on-screen | | Feedback | Tactile (vibrating) and audible feedback | | Power Requirements | Built-in Battery:
3.6 V; 5200 mAh, 18.7, Wh | | Charger | 5 V USB charging (AC adapter included) | | Dimensions | Height: 9.4" / 240 mm
Width: 16.5" / 420 mm
Diagonal Length without Rotor Blades: 22.2" / 565 mm
Propeller/Main Rotor Diameter: 13" / 330 mm | | Weight | Without Battery and Payload: 2.5 lb / 1.1 kg | | Package Weight | 15.4 lb | | Box Dimensions (LxWxH) | 19.0 x 19.0 x 12.0" | |
The user manual for the YUNEEC Q500 4K Typhoon Quadcopter with CGO3-GB Camera YUNQ4KUS can be downloaded in .pdf
format if it did not come with your new aerial imaging platforms & drones, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other YUNEEC users keep a unique electronic library
for YUNEEC aerial imaging platforms & droness,
where you can use our link to download the user manual for the YUNEEC Q500 4K Typhoon Quadcopter with CGO3-GB Camera YUNQ4KUS.
The user manual lists all of the functions of the YUNEEC Q500 4K Typhoon Quadcopter with CGO3-GB Camera YUNQ4KUS,
all the basic and advanced features and tells you how to use the aerial imaging platforms & drones.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from YUNEEC service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the YUNEEC Q500 4K Typhoon Quadcopter with CGO3-GB Camera YUNQ4KUS. User manuals are also
available on the YUNEEC website under Camcorders - Aerial Imaging & Drones - Aerial Imaging Platforms & Drones.
