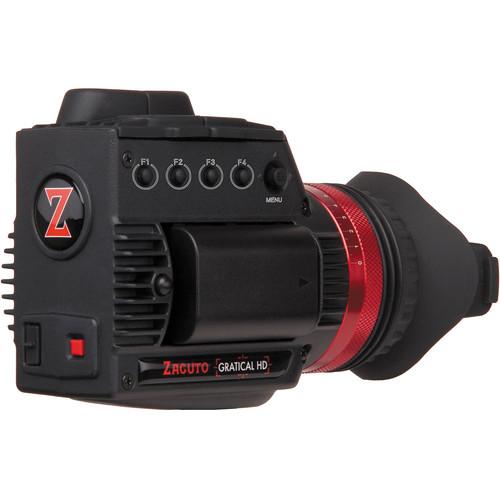

Rising far above the readily available generic EVF or LCD screen with a loupe magnifier attachment, the Zacuto Gratical HD Micro OLED EVF packs more display features and functions than is found in many much larger EVFs and on-camera monitors. At the heart of the EVF is a micro OLED panel about the size of your thumbnail with 5.5 million dots of resolution that produces an image with true blacks and a 10,000:1 contrast ratio, supporting RGB at 24-bits for vivid color rendition. You can choose to display a 720p image within the full resolution display of the OLED and then display the various scopes and signal displays outside of your picture area, which allows you to have an unobstructed view of your image while being able to see a waveform or histogram display of your image.

The EVF incorporates both SDI and HDMI loop-through inputs/outputs and can cross convert from HDMI to SDI. It also supports peaking, false color, and test pattern generation as well as LUT creation and import. You can also select to view/display audio meters. The unit features four user-programmable buttons for often-used menu selections, and supports multiple frame rates. Zacuto has designed the entire optical path, providing a diopter that is adjustable from -1 to +4. The optical path includes an automatic light trap that can prevent damage to the EVF from accidental exposure to direct sunlight. Incorporating an ARRI-compatible rosette and a 1/4"-20 mounting hole provides a variety of means to mount the EVF to your camera. The EVF powers from a single LP-E6 type battery, and this 1800mAH battery provides approximately four hours of constant run time.
If you own a Zacuto viewfinders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Zacuto Gratical HD Micro OLED EVF Z-GHD in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Zacuto Gratical HD Micro OLED EVF Z-GHD:
Display 0.61" / 15.1 mm
Frame Rate 23.98p
23.98PsF
24p
24PsF
25p
25PsF
29.97PsF
50i
50p
59.94i
60i
60p
Resolution Full Display: 1280 x 1024
HD: 1280 x 720
Contrast Ratio 10,000:1
Refresh Rate 50/60 Hz
Color Depth RGB: 24-bit
Luminance 120 to 250 nit
Pixel Density 2687.21 PPI
Color 16.7 million colors
Connections Input
HDMI: 1 x HDMI
SDI: 1 x BNC

Output
HDMI: 1 x HDMI
SDI: 1 x BNC

Upgrades
1 x USB
Mounting Options ARRI compatible rosette
1/4"-20
Packaging Info
Package Weight 2.55 lb
Box Dimensions (LxWxH) 10.709 x 7.323 x 4.724"
