User manual Zebra ZXP Series 1 Single-Sided Card Printer Z11-00000000US00

Operating instructions and pdf manual for use - Zebra ZXP Series 1 Single-Sided Card Printer Z11-00000000US00 User manual, User manual Zebra ZXP Series 1 Single-Sided Card Printer Z11-00000000US00, Zebra, ZXP, Series, 1, Single-Sided, Card, Printer


User manual for Zebra ZXP Series 1 Single-Sided Card Printer Z11-00000000US00

Zebra ZXP Series 1 Single-Sided Card Printer Z11-00000000US00
  • Manufacturer: Zebra
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Printers & Accessories - ID Card Printers
  • Safety instructions
  • Startup and operation of the id card printers
  • Tips for setting up your Zebra
  • Settings and expert assistance
  • Contact Zebra service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Zebra ZXP Series 1 Single-Sided Card Printer Z11-00000000US00, which address similar problems with connecting and setting up ID Card Printers Zebra.



User manual for the Zebra ZXP Series 1 Single-Sided Card Printer Z11-00000000US00

The user manual for the Zebra ZXP Series 1 Single-Sided Card Printer Z11-00000000US00 provides necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - ID Card Printers.

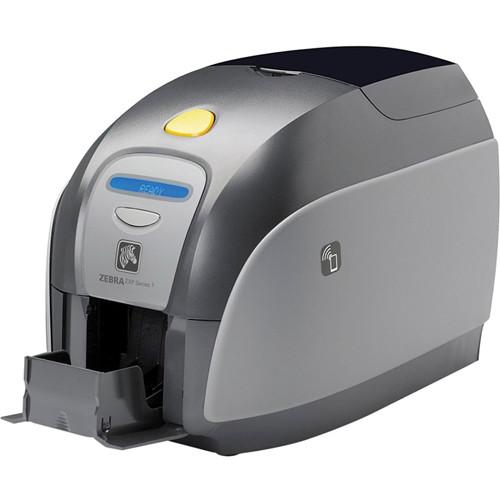

The Zebra ZXP Series 1 Single-Sided Card Printer System is a capable 300 dpi dye-sublimation printer that can produce 130 single-sided YMCKO cards every hour or 545 monochrome cards per hour. It works with CR-80 size PVC and composite media and can print edge-to-edge. The Series 1 printer also utilizes a 100 card covered feeder and 45 card output hopper to handle batch print jobs easily and without worry.

The ZXP Series 1 features a Print Touch NFC tag that allows you to tap and connect to a compatible mobile device in order to open up documentation on the printer. The printer is also able to have optional upgrades installed and it has a 16 character LCD display for convenience. Additionally, there is a Kensington security lock slot and USB 2.0 connectivity.
If you own a Zebra id card printers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Zebra ZXP Series 1 Single-Sided Card Printer Z11-00000000US00 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Zebra ZXP Series 1 Single-Sided Card Printer Z11-00000000US00:
Printing Method
Printing Technology Dye sublimation thermal transfer direct to card
Maximum Resolution 300 dpi
Ink Palette YMCKO (Yellow, magenta, cyan, black, overlay)
Performance
Print Speed Single-Sided, Monochrome: 545 cards per hour
Single-Sided, YMCKO: 130 cards per hour
Paper Handling Input: 100 card covered feeder
Output: 45 card hopper
Maximum Printable Area CR-80: 3.370 x 2.125" (85.6 x 54.0 mm)
Paper Sizes CR-80: 3.370 x 2.125" (85.6 x 54.0 mm)
Borderless Printing Yes, CR-80: 3.370 x 2.125" (85.6 x 54.0 mm)
Duplex Printing No
Media Thickness 10-40 mil (0.25-1.02 mm)
Media Types PVC and PVC composite
Spot Color Management Color or monochrome print only on <20 mil (0.51 mm) card thickness
Ribbon Options YMCKO (100 prints)
Black monochrome (1000 prints)
White monochrome (500 prints)
Connectivity
Computer Interface USB 2.0
NFC Print Touch NFC tag for documentation and tools
System & Software Requirements Windows XP (32-bit), Vista (32/64-bit), Server 2003 (32-bit), 7 (32/64-bit), Server 2008 (32/64-bit), 8 & 8 Professional (32/64-bit), Sever 2012 (64-bit)
Physical
Status Display 16-character LCD display
Security Kensington lock slot
Operating Conditions Temperature: 60 to 86°F (15 to 30°C)
Humidity: 20 to 65%, non-condensing
Storage Conditions Temperature: 23 to 131°F (-5 to 55°C)
Humidity: 20 to 70%, non-condensing
Media
Temperature: 41 to 77°F (5 to 25°C)
Humidity: 35 to 65%, non-condensing
Power Requirements Auto-switching single-phase AC power supply: 90-132 and 190-264 VAC, 47-63 Hz, FCC Class A
Dimensions (WxHxD) 9.3 x 7.9 x 14.5" (236 x 200 x 368 mm)
Weight 11.6 lb (5.3 kg)
Packaging Info
Package Weight 16.75 lb
Box Dimensions (LxWxH) 18.5 x 14.8 x 10.7"
The user manual for the Zebra ZXP Series 1 Single-Sided Card Printer Z11-00000000US00 can be downloaded in .pdf format if it did not come with your new id card printers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Zebra users keep a unique electronic library for Zebra id card printerss, where you can use our link to download the user manual for the Zebra ZXP Series 1 Single-Sided Card Printer Z11-00000000US00.

The user manual lists all of the functions of the Zebra ZXP Series 1 Single-Sided Card Printer Z11-00000000US00, all the basic and advanced features and tells you how to use the id card printers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Zebra service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Zebra ZXP Series 1 Single-Sided Card Printer Z11-00000000US00. User manuals are also available on the Zebra website under Computers & Solutions - Printers & Accessories - ID Card Printers.
