User manual Zebra ZXP Series 3 Single-Sided Card Printer System ZXP3SYSTEMSS

Operating instructions and pdf manual for use - Zebra ZXP Series 3 Single-Sided Card Printer System ZXP3SYSTEMSS User manual, User manual Zebra ZXP Series 3 Single-Sided Card Printer System ZXP3SYSTEMSS, Zebra, ZXP, Series, 3, Single-Sided, Card, P


User manual for Zebra ZXP Series 3 Single-Sided Card Printer System ZXP3SYSTEMSS

Zebra ZXP Series 3 Single-Sided Card Printer System ZXP3SYSTEMSS
  • Manufacturer: Zebra
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Printers & Accessories - ID Card Printers
  • Safety instructions
  • Startup and operation of the id card printers
  • Tips for setting up your Zebra
  • Settings and expert assistance
  • Contact Zebra service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Zebra ZXP Series 3 Single-Sided Card Printer System ZXP3SYSTEMSS, which address similar problems with connecting and setting up ID Card Printers Zebra.



User manual for the Zebra ZXP Series 3 Single-Sided Card Printer System ZXP3SYSTEMSS

The user manual for the Zebra ZXP Series 3 Single-Sided Card Printer System ZXP3SYSTEMSS provides necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - ID Card Printers.

The Zebra ZXP Series 3 Single-Sided Card Printer System is a capable 300 dpi dye-sublimation printer that can produce 180 full-color cards every hour. It works with CR-80 size media and can print edge-to-edge. Monochrome imaging is also possible at rate up to 700 cards per hour. The Series 3 printer utilizes a 100 card covered feeder and 45 card output hopper to handle batch print jobs easily and without worry.

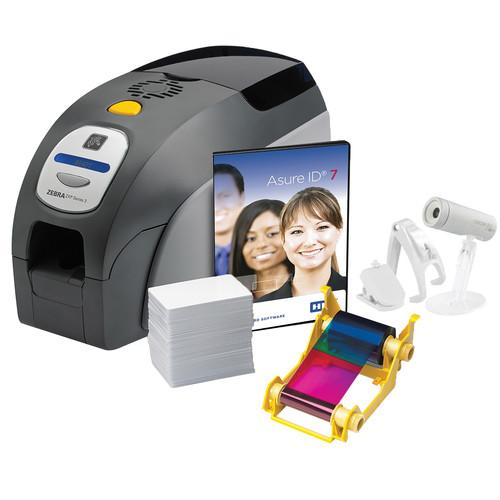

The ZXP Series 3 features a Print Touch NFC tag that allows you to tap and connect to a compatible mobile device in order to open up documentation on the printer. The printer is also able to encode magnetic stripes and it has a 16 character LCD display for convenience. Additionally, there is a Kensington security lock slot and USB 2.0 connectivity. This system includes 500 white PVC cards, a YMCKO ribbon for 200 prints, a Credential Cam full HD webcam, and Asure ID 7 Solo ID card software.
If you own a Zebra id card printers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Zebra ZXP Series 3 Single-Sided Card Printer System ZXP3SYSTEMSS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Zebra ZXP Series 3 Single-Sided Card Printer System ZXP3SYSTEMSS:
Printing Method
Printing Technology Dye sublimation thermal transfer direct to card
Maximum Resolution 300 dpi
Ink Palette YMCKO (Yellow, magenta, cyan, black, overlay)
Performance
Print Speed Monochrome: 700 cards per hour
Color: 180 cards per hour
Paper Handling Input: 100-card covered feeder
Output: 45-card hopper
Maximum Printable Area CR-80: 3.370 x 2.125" (85.6 x 54.0 mm)
Paper Sizes CR-80: 3.370 x 2.125" (85.6 x 54.0 mm)
Borderless Printing Yes, CR-80: 3.370 x 2.125" (85.6 x 54.0 mm)
Media Thickness 10-40 mil (0.25-1.02 mm)
Media Types PVC and PVC composite
Media Compatibility Smart Card Contact: ISO 7816 - 1, 2, 3, 4
Smart Card Contactless: MIFARE ISO 14443A/B
Encoder Magnetic Stripe: ISO 7811; tracks 1, 2, and 3; high and low coercivity; stripe down; 30 mil (0.76 mm) cards only
Spot Color Management Color or monochrome print only on <20 mil (0.51 mm) card thickness
Print Quantity YMCKO: 280 images/roll
1/2 YMCKO: 400 images/roll
YMCKOK: 230 images/roll
KdO: 700 images/roll
KrO: 700 images/roll
Black Monochrome: 2000 images/roll
Red Monochrome: 1700 images/roll
Blue Monochrome: 1700 images/roll
Gold Monochrome: 1600 images/roll
Silver Monochrome: 1600 images/roll
White Monochrome: 1400 images/roll
Connectivity
Computer Interface USB 2.0
NFC Print Touch NFC tag for documentation and tools
System & Software Requirements Windows XP (32-bit), Vista (32/64-bit), Server 2003 (32-bit), 7 (32/64-bit), Server 2008 (32/64-bit), 8 & 8 Professional (32/64-bit), Sever 2012 (64-bit)
Physical
Status Display 16-character LCD display
Security Kensington lock slot
Operating Conditions Temperature: 60 to 86°F (15 to 30°C)
Humidity: 20 to 65%, non-condensing
Storage Conditions Temperature: 23 to 158°F (-5 to 70°C)
Humidity: 20 to 70%, non-condensing
Media
Temperature: 41 to 77°F (5 to 25°C)
Humidity: 35 to 65%, non-condensing
Power Requirements Auto-switching single-phase AC power supply: 90-132 and 190-264 VAC, 47-63 Hz, FCC Class A
Dimensions (WxHxD) 9.3 x 7.9 x 14.5" (236 x 200 x 368 mm)
Weight 11.6 lb (5.3 kg)
Packaging Info
Package Weight 19.6 lb
Box Dimensions (LxWxH) 18.1 x 14.8 x 10.4"
The user manual for the Zebra ZXP Series 3 Single-Sided Card Printer System ZXP3SYSTEMSS can be downloaded in .pdf format if it did not come with your new id card printers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Zebra users keep a unique electronic library for Zebra id card printerss, where you can use our link to download the user manual for the Zebra ZXP Series 3 Single-Sided Card Printer System ZXP3SYSTEMSS.

The user manual lists all of the functions of the Zebra ZXP Series 3 Single-Sided Card Printer System ZXP3SYSTEMSS, all the basic and advanced features and tells you how to use the id card printers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Zebra service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Zebra ZXP Series 3 Single-Sided Card Printer System ZXP3SYSTEMSS. User manuals are also available on the Zebra website under Computers & Solutions - Printers & Accessories - ID Card Printers.
